MCS-27 Series
Manufacturer: Omnetics
Beta
⌘K

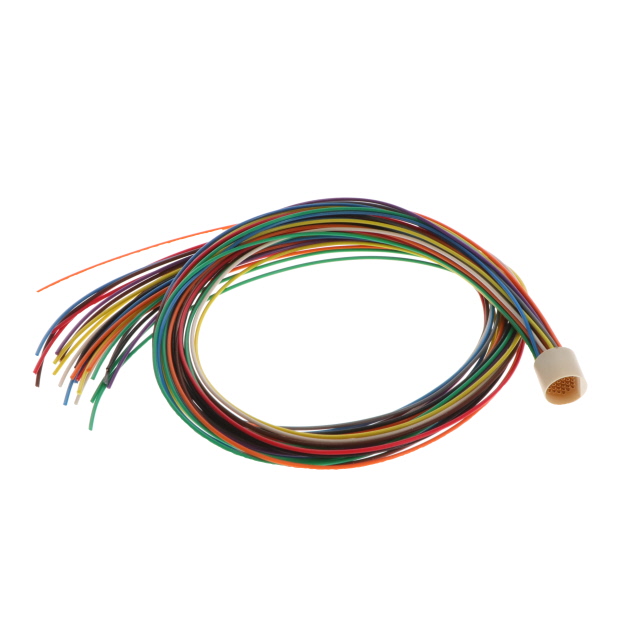

CIRC CBL 27POS RCPT TO WIRE 1.5'
| Part | Cable Material | Assembly Configuration | Usage | 2nd Connector Type | 1st Connector Mounting Type | Color | Cable Type | 1st Connector Number of Positions Loaded | 1st Connector Gender | Shielding | 1st Connector Type | Length [x] | Length [x] | 1st Connector Orientation | Contact Material | Fastening Type | Current Rating (Amps) | Connector Type | Number of Positions | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Mounting Type | Orientation | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | Polytetrafluoroethylene (PTFE) | Standard | Industrial Environments | Wire Leads | Free Hanging (In-Line) | Multiple | Individual | All | Female Sockets | Unshielded | Receptacle | 457.2 mm | 1.5 ft | Keyed | |||||||||||||||

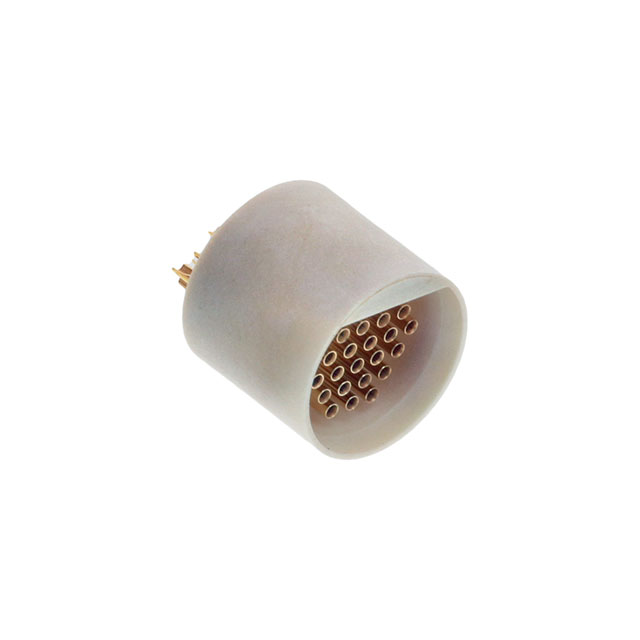

 Omnetics | Natural | Unshielded | Copper Alloy | Push-Pull | 3 A | Receptacle Female Sockets | 27 | Plastic | 50 µin | 1.27 µm | Liquid Crystal Polymer (LCP) | -55 C | 125 °C | Gold | Free Hanging (In-Line) | Keyed | Liquid Crystal Polymer (LCP) |
