CMS16 Series

Catalog

HIGH POWER, CURRENT HANDING CAPABILITY MOSFET

Part	Mounting Type	Rds On (Max) @ Id, Vgs	Package / Case	Supplier Device Package	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature [Max]	Operating Temperature [Min]	Input Capacitance (Ciss) (Max) @ Vds	Technology	Current - Continuous Drain (Id) @ 25°C	FET Type	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]
Comchip Technology CMS16N06D-HF	Surface Mount	50 mOhm	DPAK (2 Leads + Tab) SC-63 TO-252-3	TO-252 (DPAK)	2.5 V	60 V	4.5 V 10 V	2 W 27 W	14 nC	150 °C	-55 °C	815 pF	MOSFET (Metal Oxide)	4.4 A 16 A	N-Channel	20 V

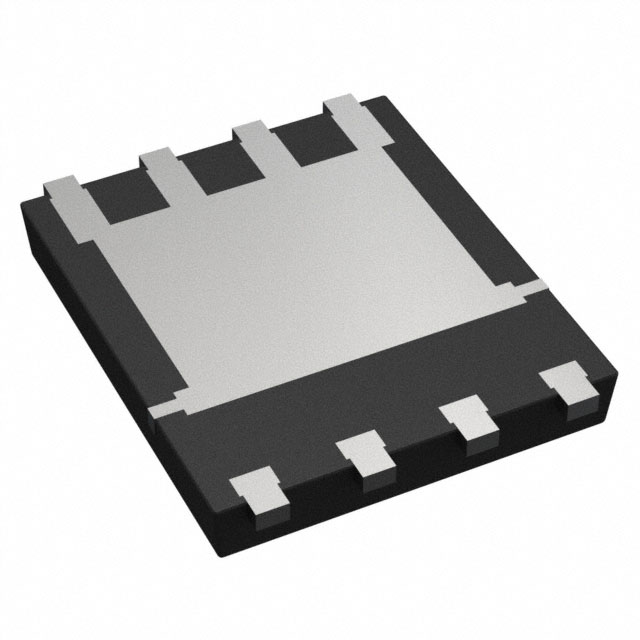

Comchip Technology CMS16P06H8-HF	Surface Mount	48 mOhm	8-PowerTDFN	DFN5x6 (PR-PAK)	2.5 V	60 V	4.5 V 10 V	2 W 25 W		150 °C	-55 °C	1256 pF	MOSFET (Metal Oxide)	5 A 16 A	P-Channel	20 V	22 nC
