1010020 Series

Catalog

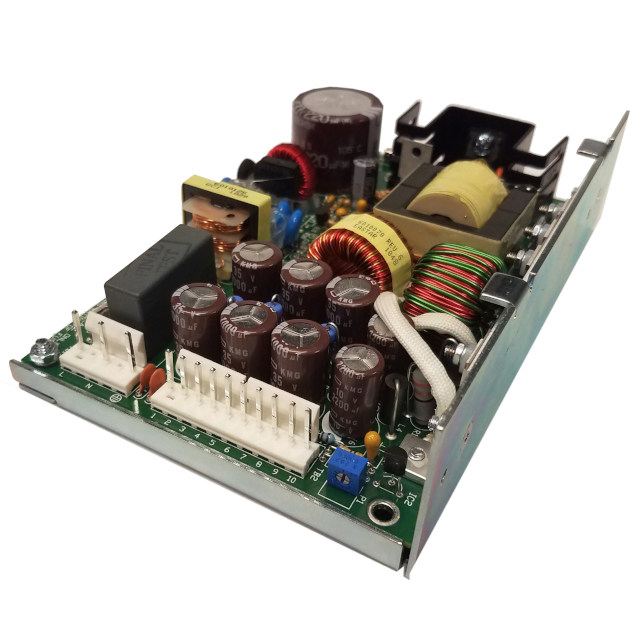

AC/DC CONVERTER +/-5V +/-12V 65W

Part	Type	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 3	Voltage - Output 2	Mounting Type	Current - Output 2	Approval Agency	Current - Output 1	Current - Output 4	Features	Number of Outputs	Current - Output 3	Applications	Voltage - Output 4	Standard Number	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]
Integrated Power Designs 1010020CH	Chassis	76 %	1.65 "	158.2 mm	6.23 in	4.25 in	108 mm	41.9 mm	12 V	-5 V	Chassis Mount	3 A	CE TUV UKCA	5 A	2 A	Adjustable Output Universal Input	4	2 A	Industrial ITE (Commercial)	-12 V	62368-1	5 V	0 °C	50 °C	100 VAC	240 VAC
Integrated Power Designs 1010020CHCO	Enclosed	76 %	1.65 "	158.2 mm	6.23 in	4.25 in	108 mm	41.9 mm	12 V	-5 V	Chassis Mount	3 A	CE TUV UKCA	5 A	2 A	Adjustable Output Universal Input	4	2 A	Industrial ITE (Commercial)	-12 V	62368-1	5 V	0 °C	50 °C	100 VAC	240 VAC
