LM5017 Series
7.5-100V Wide Vin, 600mA Constant On-Time Synchronous Buck Regulator
Manufacturer: Texas Instruments
Catalog
7.5-100V Wide Vin, 600mA Constant On-Time Synchronous Buck Regulator
| Part | Voltage - Output (Min/Fixed) | Voltage - Output (Max) [Max] | Function | Output Configuration | Frequency - Switching | Supplier Device Package | Topology | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Mounting Type | Synchronous Rectifier | Current - Output | Number of Outputs | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Output Type | Supplied Contents | Voltage - Output [Min] | Voltage - Output [Max] | Main Purpose | Voltage - Input [Min] | Voltage - Input [Max] | Outputs and Type | Frequency - Switching | Board Type | Regulator Topology | Utilized IC / Part | Package / Case [y] | Package / Case [x] | Outputs and Type | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1.225 V | 100 V | Step-Down | Positive | Adj to 1MHz | 8-WSON (4x4) | Buck | -40 °C | 125 ¯C | 8-WDFN Exposed Pad | Surface Mount | 600 mA | 1 | 7.5 V | 100 V | Adjustable | ||||||||||||||||

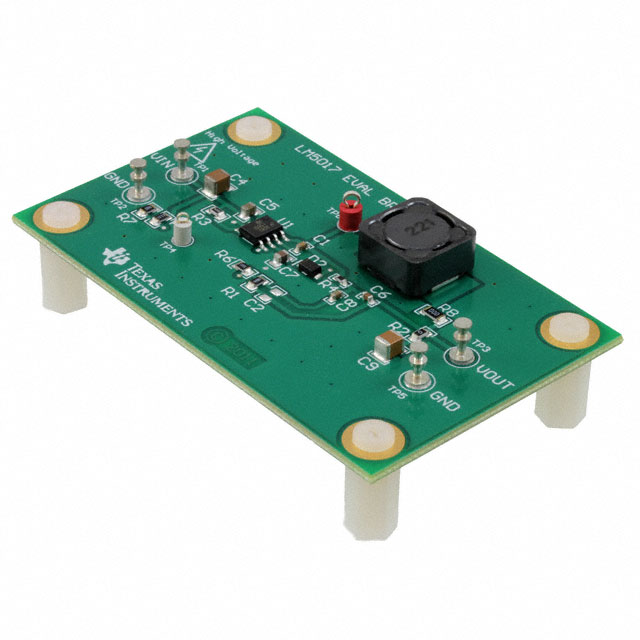

 Texas Instruments | 300 mA | Board(s) | 9.5 V | 10 V | DC/DC Step Down | 20 VDC | 100 V | 1 1 | 750 kHz | Fully Populated | Buck | LM5017 | ||||||||||||||||||||
 Texas Instruments | 1.225 V | 90 V | Step-Down | Positive | Adj to 1MHz | 8-WSON (4x4) | Buck | -40 °C | 125 ¯C | 8-WDFN Exposed Pad | Surface Mount | 600 mA | 1 | 7.5 V | 100 V | Adjustable | ||||||||||||||||
 Texas Instruments | 1.225 V | 90 V | Step-Down | Positive | Adj to 1MHz | 8-SO PowerPad | Buck | -40 °C | 125 ¯C | 8-PowerSOIC | Surface Mount | 600 mA | 1 | 7.5 V | 100 V | Adjustable | 3.9 mm | 0.154 in | ||||||||||||||

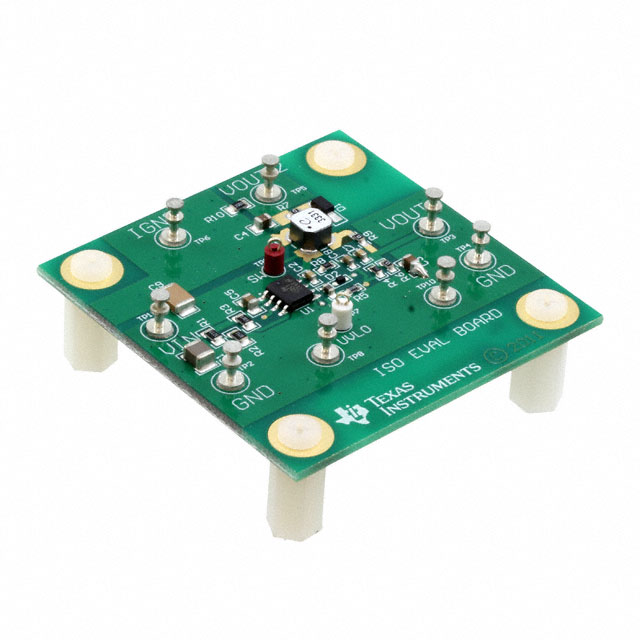

 Texas Instruments | 600 mA | Board(s) | DC/DC Step Down | 12.5 V | 100 V | 1 | 200 kHz | Fully Populated | Buck | LM5017 | Non-Isolated | 10 V | ||||||||||||||||||||
Texas Instruments | 1.225 V | 90 V | Step-Down | Positive | Adj to 1MHz | 8-WSON (4x4) | Buck | -40 °C | 125 ¯C | 8-WDFN Exposed Pad | Surface Mount | 600 mA | 1 | 7.5 V | 100 V | Adjustable | ||||||||||||||||
Texas Instruments | 1.225 V | 90 V | Step-Down | Positive | Adj to 1MHz | 8-SO PowerPad | Buck | -40 °C | 125 ¯C | 8-PowerSOIC | Surface Mount | 600 mA | 1 | 7.5 V | 100 V | Adjustable | 3.9 mm | 0.154 in |
Key Features
• Wide 7.5-V to 100-V input rangeIntegrated 100-V high-side and low-side switchesNo schottky requiredConstant on-time controlNo loop compensation requiredUltra-fast transient responseNearly constant operating frequencyIntelligent peak current limitAdjustable output voltage from 1.225 VPrecision 2% feedback referenceFrequency adjustable to 1 MHzAdjustable undervoltage lockout (UVLO)Remote shutdownThermal shutdownPackages:WSON-8SO PowerPAD™-8Create a custom regulator design usingWEBENCH Power DesignerWide 7.5-V to 100-V input rangeIntegrated 100-V high-side and low-side switchesNo schottky requiredConstant on-time controlNo loop compensation requiredUltra-fast transient responseNearly constant operating frequencyIntelligent peak current limitAdjustable output voltage from 1.225 VPrecision 2% feedback referenceFrequency adjustable to 1 MHzAdjustable undervoltage lockout (UVLO)Remote shutdownThermal shutdownPackages:WSON-8SO PowerPAD™-8Create a custom regulator design usingWEBENCH Power Designer
Description
AI
The LM5017 is a 100-V, 600-mA synchronous stepdown regulator with integrated high side and low side MOSFETs. The constant on-time (COT) control scheme employed in the LM5017 requires no loop compensation, provides excellent transient response, and enables very high step-down ratios. The on-time varies inversely with the input voltage resulting in nearly constant frequency over the input voltage range. A high voltage startup regulator provides bias power for internal operation of the IC and for integrated gate drivers.
A peak current limit circuit protects against overload conditions. The undervoltage lockout (UVLO) circuit allows the input undervoltage threshold and hysteresis to be independently programmed. Other protection features include thermal shutdown and bias supply undervoltage lockout (VCCUVLO).
The LM5017 device is available in WSON-8 and HSOP PowerPAD-8 plastic packages.
The LM5017 is a 100-V, 600-mA synchronous stepdown regulator with integrated high side and low side MOSFETs. The constant on-time (COT) control scheme employed in the LM5017 requires no loop compensation, provides excellent transient response, and enables very high step-down ratios. The on-time varies inversely with the input voltage resulting in nearly constant frequency over the input voltage range. A high voltage startup regulator provides bias power for internal operation of the IC and for integrated gate drivers.
A peak current limit circuit protects against overload conditions. The undervoltage lockout (UVLO) circuit allows the input undervoltage threshold and hysteresis to be independently programmed. Other protection features include thermal shutdown and bias supply undervoltage lockout (VCCUVLO).
The LM5017 device is available in WSON-8 and HSOP PowerPAD-8 plastic packages.
