14-823 Series

Catalog

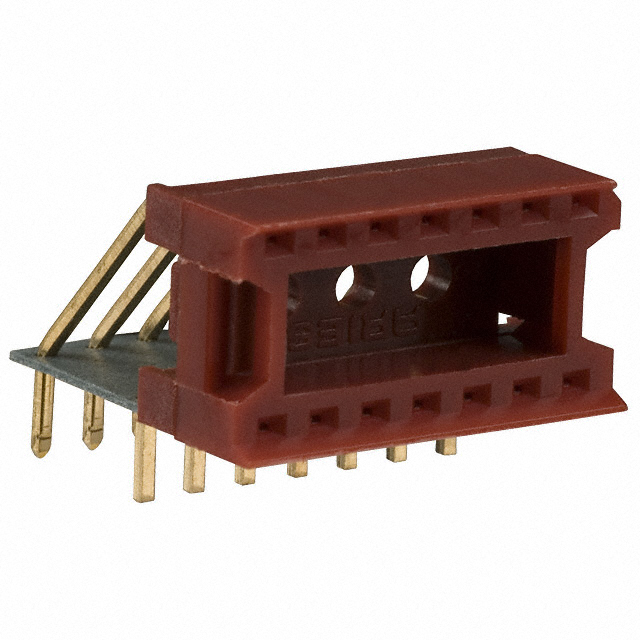

CONN IC DIP SOCKET 14POS TIN

Part	Current Rating (Amps)	Termination Post Length	Termination Post Length	Material Flammability Rating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Mating	Termination	Pitch - Mating	Pitch - Mating	Contact Material - Post	Pitch - Post	Pitch - Post	Type	Type	Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions or Pins (Grid)	Features	Housing Material	Contact Finish - Mating	Contact Material - Post [custom]	Operating Temperature [Min]	Operating Temperature [Max]
Aries Electronics 14-823-90T	1.5 A	0.145 in	3.68 mm	UL94 V-0	Tin	5.08 µm	200 µin	Phosphor Bronze	Solder	0.1 "	2.54 mm	Phosphor Bronze	0.1 in	2.54 mm	7.62 mm	0.3 in	DIP	200 µin	5.08 µm	14	Closed Frame	Polyamide (PA46) Nylon 4/6
Aries Electronics 14-823-90TWR	1.5 A	0.145 in	3.68 mm	UL94 V-0	Tin	5.08 µm	200 µin	Phosphor Bronze	Solder	0.1 "	2.54 mm	Phosphor Bronze	0.1 in	2.54 mm	7.62 mm	0.3 in	DIP	200 µin	5.08 µm	14	Closed Frame	Polyamide (PA46) Nylon 4/6
Aries Electronics 14-823-90WR	1.5 A	0.145 in	3.68 mm	UL94 V-0	Gold	0.25 µm	10 µin	Phosphor Bronze	Solder	0.1 "	2.54 mm	Phosphor Bronze	0.1 in	2.54 mm	7.62 mm	0.3 in	DIP	10 Áin	0.25 çm	14	Closed Frame	Polyamide (PA46) Nylon 4/6	Gold
Aries Electronics 14-823-90C	3 A	0.14 in	3.56 mm	UL94 V-0	Tin	0.76 Ám	30 Áin	Beryllium Copper	Solder	0.1 "	2.54 mm		0.1 in	2.54 mm	7.62 mm	0.3 in	DIP	200 µin	5.08 µm	14	Closed Frame	Polyamide (PA46) Nylon 4/6 Glass Filled	Gold	Brass	-55 C	105 ░C
