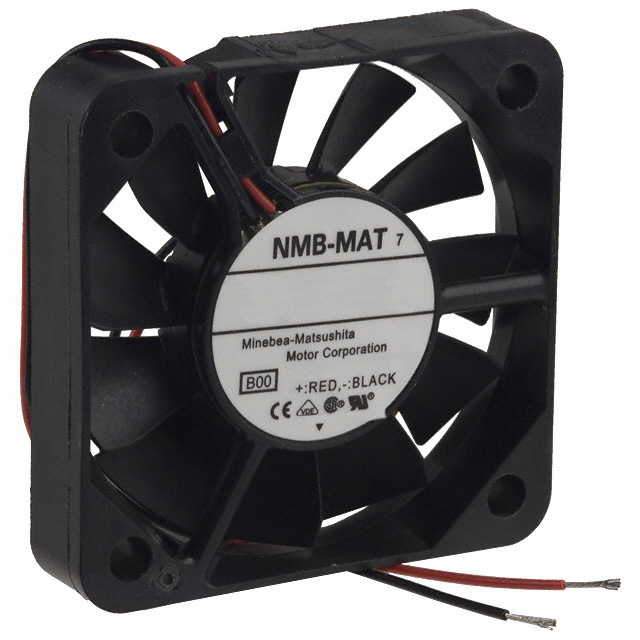

2004KL Series

Catalog

FAN AXIAL 50X10MM BALL 5VDC WIRE

Part	Material - Frame	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Material - Blade	Air Flow	Air Flow	Bearing Type	Width [y]	Features	Power (Watts)	Approval Agency	Static Pressure	Static Pressure	Voltage - Rated	Weight [custom]	Weight [custom]	Noise	RPM	Termination	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Operating Temperature [Max]	Operating Temperature [Min]
NMB TECHNOLOGIES 2004KL-01W-B39-B50	Plastic	60000 Hrs	4.5 V	6 VDC	100 mA	Plastic	6.4 CFM	0.179 mł/min	Ball	10 mm	Speed Sensor (Tach)	0.5 W	CE CSA UL VDE	16 Pa	0.064 in H2O	5 V	0.044 lb	19.96 g	23 dB(A)	3500 RPM	3 Wire Leads	50 mm	50 mm	Tubeaxial	70 °C	-10 °C
NMB TECHNOLOGIES 2004KL-01W-B49-B50	Plastic	60000 Hrs	4.5 V	6 VDC		Plastic	8.1 CFM	0.227 m³/min	Ball	10 mm	Speed Sensor (Tach)	0.8 W	CE CSA UL VDE	26 Pa	0.104 in H2O	5 V	0.044 lb	19.96 g	28.5 dB	4500 RPM	3 Wire Leads	50 mm	50 mm	Tubeaxial	70 °C	-10 °C
NMB TECHNOLOGIES 2004KL-01W-B39-B00	Plastic	60000 Hrs	4.5 V	6 VDC	100 mA	Plastic	6.4 CFM	0.179 mł/min	Ball	10 mm	Locked Rotor Sensor	0.5 W	CE CSA UL VDE	16 Pa	0.064 in H2O	5 V	0.044 lb	19.96 g	23 dB(A)	3500 RPM	3 Wire Leads	50 mm	50 mm	Tubeaxial	70 °C	-10 °C
NMB TECHNOLOGIES 2004KL-04W-B39-B50	Plastic	60000 Hrs	10.2 VDC	13.8 VDC	40 mA	Plastic	6.4 CFM	0.179 mł/min	Ball	10 mm	Speed Sensor (Tach)	0.48 W	CE CSA UL VDE	16 Pa	0.064 in H2O	12 VDC	0.044 lb	19.96 g	23 dB(A)	3500 RPM	3 Wire Leads	50 mm	50 mm	Tubeaxial	70 °C	-10 °C
NMB TECHNOLOGIES 2004KL-01W-B50-B00	Plastic	60000 Hrs	4.5 V	6 VDC	0.3 A	Plastic	10.2 CFM	0.286 mł/min	Ball	10 mm		1.5 W	CE CSA UL VDE	34.9 Pa	0.14 in H2O	5 V	0.044 lb	19.96 g	34 dB(A)	5500 RPM	2 Wire Leads	50 mm	50 mm	Tubeaxial	70 °C	-10 °C
NMB TECHNOLOGIES 2004KL-04W-B59-B50	Plastic	60000 Hrs	10.2 VDC	13.8 VDC	100 mA	Plastic	10.2 CFM	0.286 mł/min	Ball	10 mm	Speed Sensor (Tach)	1.2 W	CE CSA UL VDE	34.9 Pa	0.14 in H2O	12 VDC	0.044 lb	19.96 g	34 dB(A)	5500 RPM	3 Wire Leads	50 mm	50 mm	Tubeaxial	70 °C	-10 °C
NMB TECHNOLOGIES 2004KL-04W-B40-B00	Plastic	60000 Hrs	10.2 VDC	13.8 VDC	70 mA	Plastic	8.1 CFM	0.227 m³/min	Ball	10 mm		840 mW	CE CSA UL VDE	26 Pa	0.104 in H2O	12 VDC	0.044 lb	19.96 g	28.5 dB	4500 RPM	2 Wire Leads	50 mm	50 mm	Tubeaxial	70 °C	-10 °C
NMB TECHNOLOGIES 2004KL-01W-B40-B00	Plastic	60000 Hrs	4.5 V	6 VDC		Plastic	8.1 CFM	0.227 m³/min	Ball	10 mm		0.8 W	CE CSA UL VDE	26 Pa	0.104 in H2O	5 V	0.044 lb	19.96 g	28.5 dB	4500 RPM	2 Wire Leads	50 mm	50 mm	Tubeaxial	70 °C	-10 °C
NMB TECHNOLOGIES 2004KL-01W-B49-B00	Plastic	60000 Hrs	4.5 V	6 VDC		Plastic	8.1 CFM	0.227 m³/min	Ball	10 mm	Locked Rotor Sensor	0.8 W	CE CSA UL VDE	26 Pa	0.104 in H2O	5 V	0.044 lb	19.96 g	28.5 dB	4500 RPM	3 Wire Leads	50 mm	50 mm	Tubeaxial	70 °C	-10 °C
NMB TECHNOLOGIES 2004KL-01W-B30-B00	Plastic	60000 Hrs	4.5 V	6 VDC	100 mA	Plastic	6.4 CFM	0.179 mł/min	Ball	10 mm		0.5 W	CE CSA UL VDE	16 Pa	0.064 in H2O	5 V	0.044 lb	19.96 g	23 dB(A)	3500 RPM	2 Wire Leads	50 mm	50 mm	Tubeaxial	70 °C	-10 °C
