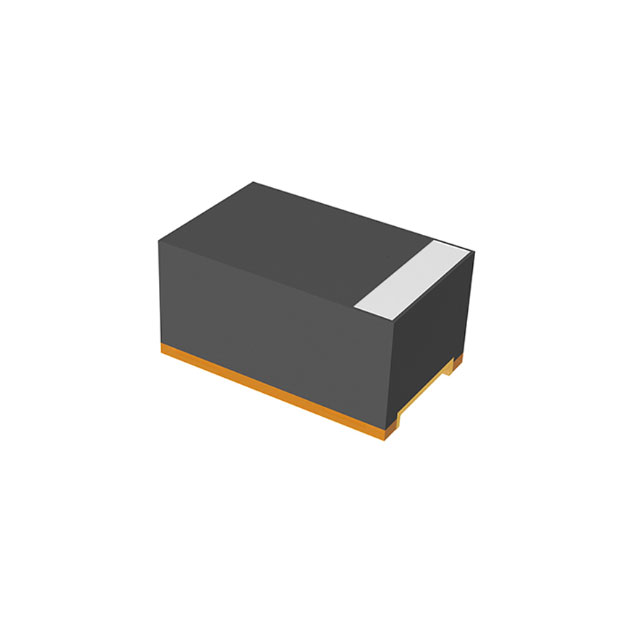

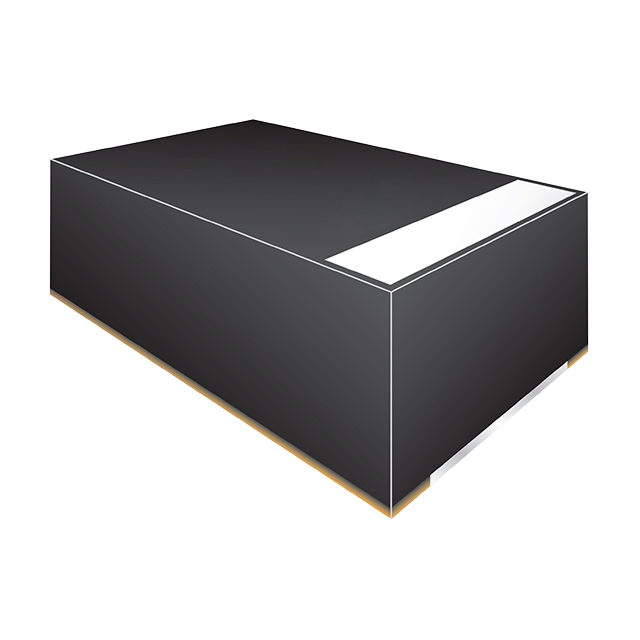

T529P Series

Manufacturer: KEMET

Catalog

CAP TANT POLYMER 22UF 10VDC P CASE 20%( 2 X 1.25 X 1MM) INWARD L SMD 2012-10 0.15 OHM 105°C T/R

Part	Lifetime @ Temp.	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Rated	Mounting Type	Tolerance	Type	Capacitance
KEMET T529P226M010AAE150	1000 Hrs	2 mm	1.25 mm	0.049 "	0.079 in	General Purpose	0.039 in	1 mm	P	150 mOhm	-55 C	105 ░C	0805	10 V	Surface Mount	20 %	Molded	22 µF
KEMET T529P106M010AAE200	1000 Hrs	2 mm	1.25 mm	0.049 "	0.079 in	General Purpose	0.039 in	1 mm	P	200 mOhm	-55 C	105 ░C	0805	10 V	Surface Mount	20 %	Molded	10 µF
KEMET T529P226M010AAE200		2 mm	1.25 mm	0.049 "	0.079 in	General Purpose	0.039 in	1 mm	P	200 mOhm	-55 C	105 ░C	0805	10 V	Surface Mount	20 %	Molded	22 µF
KEMET T529P106M006AAE200	1000 Hrs	2 mm	1.25 mm	0.049 "	0.079 in	General Purpose	0.039 in	1 mm	P	200 mOhm	-55 C	105 ░C	0805	6.3 VDC	Surface Mount	20 %	Molded	10 µF
