4715TS Series

Catalog

FAN AXIAL 119X38MM 200VAC TERM

Part	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Material - Frame	Noise	RPM	Fan Type	Air Flow	Air Flow	Static Pressure	Static Pressure	Approval Agency	Voltage - Rated	Termination	Width [y]	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Bearing Type	Power (Watts)	Operating Temperature	Weight [custom]	Weight [custom]	Ingress Protection
NMB TECHNOLOGIES 4715TS-20T-B50-BM0	50000 Hrs	Steel	0.17 A	Aluminum	50 dB(A)	3100 RPM	Tubeaxial	116.5 CFM	3.26 m³/min	99.6 Pa	0.4 in H2O	CE UL VDE	200 VAC	2	38 mm	1.4 lbs	635 g	-10 °C	60 °C	Square	119 mm	119 mm	Ball	17 W
NMB TECHNOLOGIES 4715TS-20T-B5A-B00	50000 Hrs	Steel	0.17 A	Aluminum	50 dB(A)	3100 RPM	Tubeaxial	116.5 CFM	3.26 m³/min	99.6 Pa	0.4 in H2O	CE UL VDE	200 VAC	2	38 mm					Square	119 mm	119 mm	Ball	17 W	14 ~ 149°F (-10 ~ 65°C)	1.3 lbs	589.7 g
NMB TECHNOLOGIES 4715TS-22T-B50-BM0	50000 Hrs	Steel	150 mA	Aluminum	50 dB(A)	3100 RPM	Tubeaxial	116.5 CFM	3.26 m³/min	99.6 Pa	0.4 in H2O	CE UL VDE	220 VAC	2	38 mm	1.4 lbs	635 g	-10 °C	60 °C	Square	119 mm	119 mm	Ball	17 W

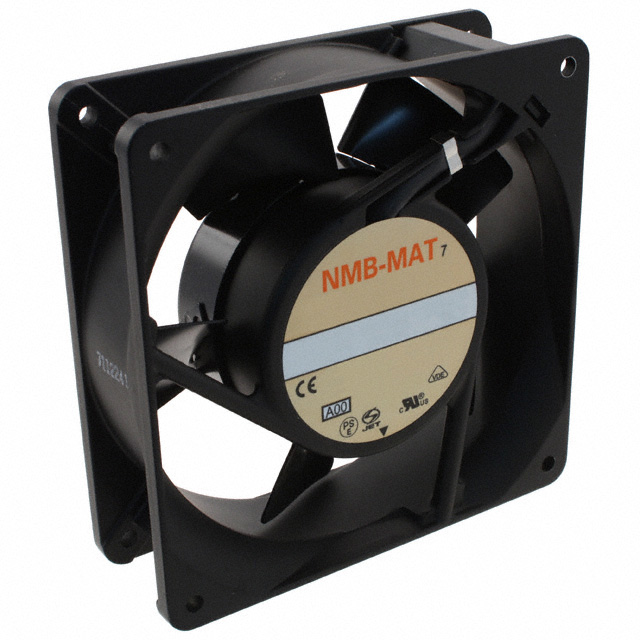

NMB TECHNOLOGIES 4715TS-23T-B5A-A00	50000 Hrs	Steel	140 mA	Aluminum	50 dB(A)	3100 RPM	Tubeaxial	116.5 CFM	3.26 m³/min	99.6 Pa	0.4 in H2O	CE UL VDE	230 VAC	2	38 mm			-10 °C	60 °C	Square	119 mm	119 mm	Ball	17 W		1.3 lbs	589.7 g
NMB TECHNOLOGIES 4715TS-10T-B5A-B00	50000 Hrs	Steel	0.34 A	Aluminum	50 dB(A)	3100 RPM	Tubeaxial	116.5 CFM	3.26 m³/min	99.6 Pa	0.4 in H2O	CE UL VDE	100 VAC	2	38 mm					Square	119 mm	119 mm	Ball	17 W	14 ~ 149°F (-10 ~ 65°C)	1.3 lbs	589.7 g

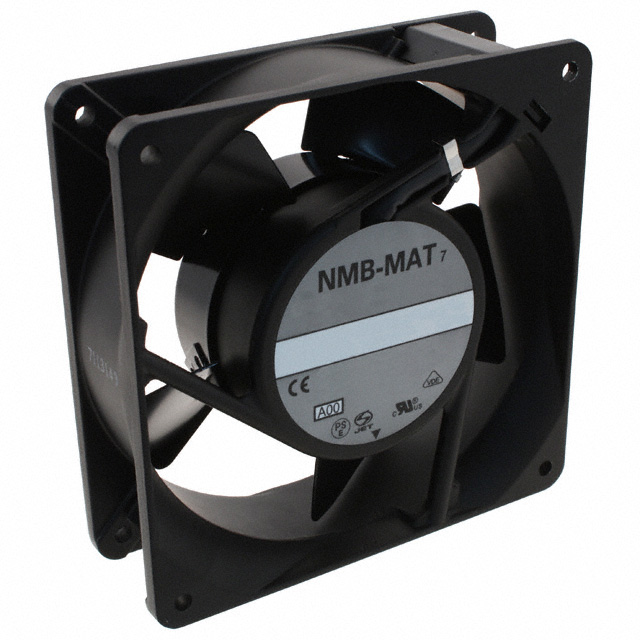

NMB TECHNOLOGIES 4715TS-12T-B5A-A00	50000 Hrs	Steel	0.3 A	Aluminum	50 dB(A)	3100 RPM	Tubeaxial	116.5 CFM	3.26 m³/min	99.6 Pa	0.4 in H2O	CE UL VDE	115 VAC	2	38 mm			-10 °C	60 °C	Square	119 mm	119 mm	Ball	17 W		1.3 lbs	589.7 g
NMB TECHNOLOGIES 4715TS-10T-B50-BM0	50000 Hrs	Steel	0.34 A	Aluminum	50 dB(A)	3100 RPM	Tubeaxial	116.5 CFM	3.26 m³/min	99.6 Pa	0.4 in H2O	CE UL VDE	100 VAC	2	38 mm	1.4 lbs	635 g	-10 °C	60 °C	Square	119 mm	119 mm	Ball	17 W
NMB TECHNOLOGIES 4715TS-22T-B5A-B00	50000 Hrs	Steel	150 mA	Aluminum	50 dB(A)	3100 RPM	Tubeaxial	116.5 CFM	3.26 m³/min	99.6 Pa	0.4 in H2O	CE UL VDE	220 VAC	2	38 mm					Square	119 mm	119 mm	Ball	17 W	14 ~ 149°F (-10 ~ 65°C)	1.3 lbs	589.7 g

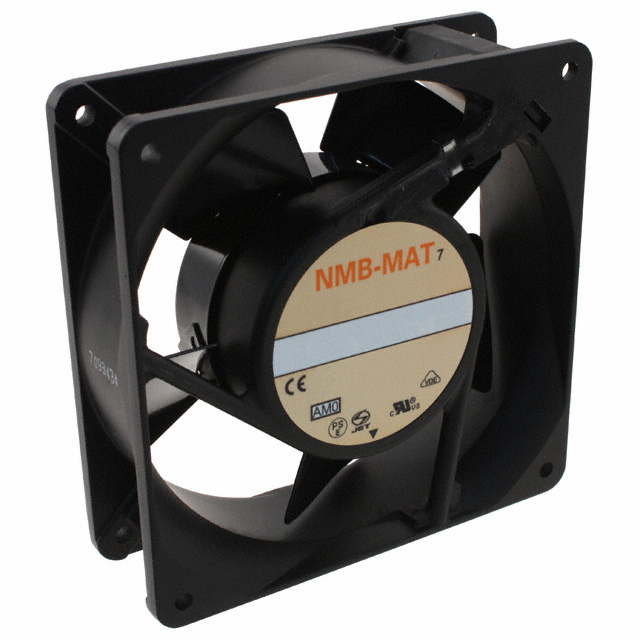

NMB TECHNOLOGIES 4715TS-23T-B50-AM0	50000 Hrs	Steel	140 mA	Aluminum	50 dB(A)	3100 RPM	Tubeaxial	116.5 CFM	3.26 m³/min	99.6 Pa	0.4 in H2O	CE UL VDE	230 VAC	2	38 mm	1.4 lbs	635 g	-10 °C	60 °C	Square	119 mm	119 mm	Ball	17 W				IP54 - Dust Protected Water Resistant

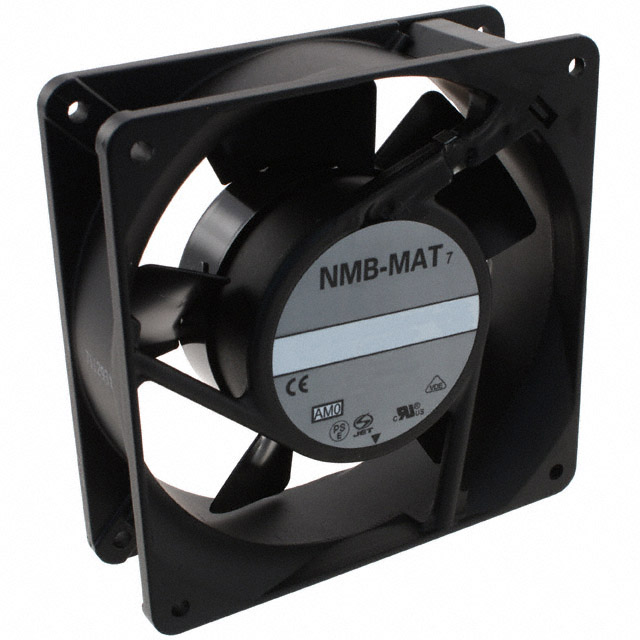

NMB TECHNOLOGIES 4715TS-12T-B50-AM0	50000 Hrs	Steel	0.3 A	Aluminum	50 dB(A)	3100 RPM	Tubeaxial	116.5 CFM	3.26 m³/min	99.6 Pa	0.4 in H2O	CE UL VDE	115 VAC	2	38 mm	1.4 lbs	635 g	-10 °C	60 °C	Square	119 mm	119 mm	Ball	17 W				IP54 - Dust Protected Water Resistant
