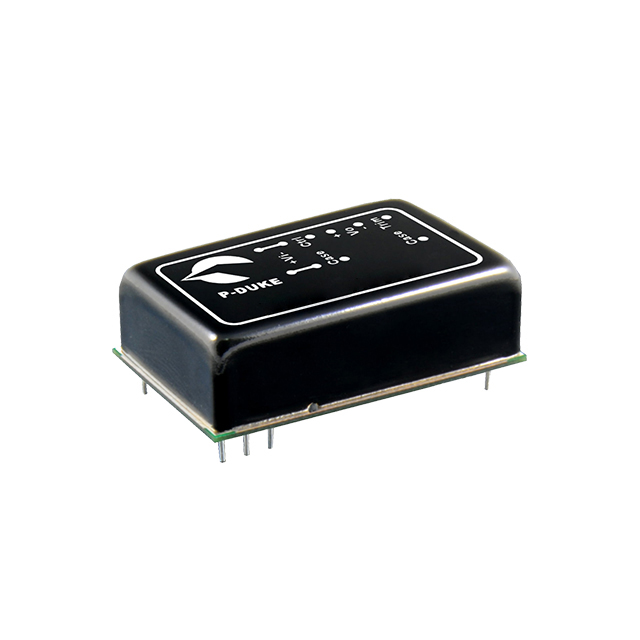

LKC05 Series

Catalog

DC DC CONVERTER 5V 5W

Part	Voltage - Output 1	Efficiency	Approval Agency	Features	Voltage - Input (Min) [Min]	Mounting Type	Package / Case	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Control Features	Voltage - Isolation	Power (Watts)	Applications	Type	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Current - Output (Max)	Package / Case	Voltage - Output 2
P-DUKE Technology LKC05-48S05W	5 V	83 %	CE	Adjustable Output Remote On/Off Standby Output	18 V	Through Hole	24-DIP Module 10 Leads	1 A	25.4 mm	0.4 "	10.2 mm	1 in	0.8 "	20.3 mm	Active Low Enable	1.6 kV	5 W	ITE (Commercial)	Isolated Module	75 V	-40 °C	100 °C	1
P-DUKE Technology LKC05-24D24W	24 V	87 %	CE	Adjustable Output Remote On/Off Standby Output	9 V	Through Hole	24-DIP Module		25.4 mm	0.4 "	10.2 mm	1 in	0.8 "	20.3 mm	Active Low Enable	1.6 kV	5 W	ITE (Commercial)	Isolated Module	36 V	-40 °C	100 °C	2	104 mA	12 Leads	-24 V
P-DUKE Technology LKC05-24D15W	15 V	86 %	CE	Remote On/Off	9 V	Through Hole	24-DIP Module	166 mA	31.8 mm	0.4 "	10.2 mm	1.25 in	0.8 "	20.3 mm		1.6 kV	5 W	ITE (Commercial)	Isolated Module	36 V	-40 °C	100 °C	2		12 Leads	-15 V
