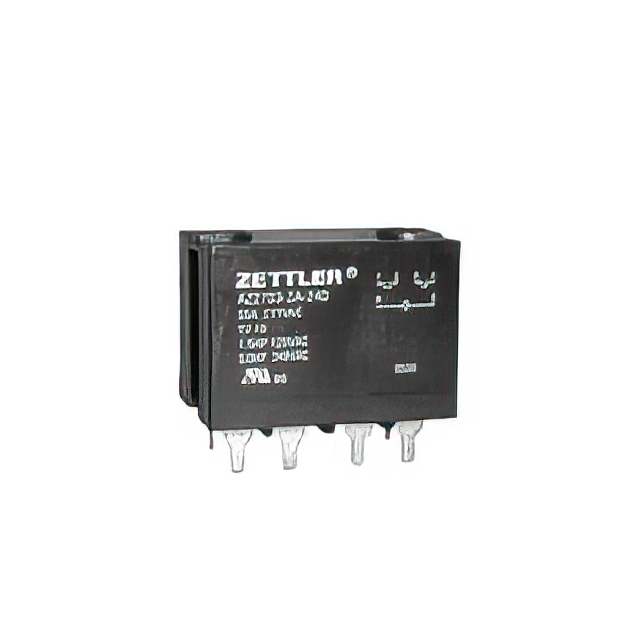

AZ2703-2A Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE DPST 30A 24V
| Part | Coil Resistance | Contact Material | Release Time | Coil Voltage | Load - Max Switching | Must Operate Voltage | Relay Type | Contact Form | Approval Agency | Coil Type | Mounting Type | Coil Insulation | Must Release Voltage | Contact Rating (Current) | Coil Current | Switching Voltage [Max] | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 300 Ohms | Silver Tin Oxide (AgSnO) | 30 ms | 24 VDC | 840 W 8310 VA | 18 VDC | General Purpose | DPST-NO (2 Form A) | CUR TUV UL | Non Latching | Chassis Mount | Class B | 1.2 VDC | 30 A | 80 mA | 150 VDC 400 VAC | 30 ms | 85 °C | -40 C | |
 American Zettler | 75 Ohms | Silver Tin Oxide (AgSnO) | 30 ms | 12 VDC | 840 W 8310 VA | 9 VDC | General Purpose | DPST-NO (2 Form A) | CUR TUV UL | Non Latching | Chassis Mount | Class B | 0.6 VDC | 30 A | 160 mA | 150 VDC 400 VAC | 30 ms | 85 °C | -40 C | |
American Zettler | 75 Ohms | Silver Tin Oxide (AgSnO) | 30 ms | 12 VDC | 840 W 8310 VA | 9 VDC | General Purpose | DPST-NO (2 Form A) | CUR TUV UL | Non Latching | Chassis Mount | Class B | 0.6 VDC | 30 A | 160 mA | 150 VDC 400 VAC | 30 ms | 85 °C | -40 C | |
American Zettler | 5217 Ohms | Silver Tin Oxide (AgSnO) | 30 ms | 120 VAC | 840 W 8310 VA | 96 VAC | General Purpose | DPST-NO (2 Form A) | CUR TUV UL | Non Latching | Chassis Mount | Class B | 18 VAC | 30 A | 23 mA | 150 VDC 400 VAC | 30 ms | 85 °C | -40 C | |
American Zettler | 1.2 kOhms | Silver Tin Oxide (AgSnO) | 30 ms | 48 VDC | 840 W 8310 VA | 36 VDC | General Purpose | DPST-NO (2 Form A) | CUR TUV UL | Non Latching | Chassis Mount | Class B | 2.4 VDC | 30 A | 40 mA | 150 VDC 400 VAC | 30 ms | 85 °C | -40 C | |
American Zettler | 26.667 kOhms | Silver Tin Oxide (AgSnO) | 30 ms | 240 VAC/DC | 840 W 8310 VA | 192 VAC | General Purpose | DPST-NO (2 Form A) | CUR TUV UL | Non Latching | Chassis Mount | Class B | 36 VAC | 30 A | 9 mA | 150 VDC 400 VAC | 30 ms | 85 °C | -40 C | |
American Zettler | Silver Tin Oxide (AgSnO) | 30 ms | 220 VAC/DC | 840 W 8310 VA | 176 VAC | General Purpose | DPST-NO (2 Form A) | CUR TUV UL | Non Latching | Chassis Mount | Class B | 33 VAC | 30 A | 10 mA | 150 VDC 400 VAC | 30 ms | 85 °C | -40 C | ||
American Zettler | 26.667 kOhms | Silver Tin Oxide (AgSnO) | 30 ms | 240 VAC/DC | 840 W 8310 VA | 192 VAC | General Purpose | DPST-NO (2 Form A) | CUR TUV UL | Non Latching | Chassis Mount | Class B | 36 VAC | 30 A | 9 mA | 150 VDC 400 VAC | 30 ms | 85 °C | -40 C | Sealed - Fully |
