AD5258 Series

Nonvolatile, I2C®-Compatible 64-Position, Digital Potentiometer

Catalog

Nonvolatile, I2C®-Compatible 64-Position, Digital Potentiometer

Part	Type	Function	Utilized IC / Part	Contents	Supplied Contents	Resistance (Ohms)	Memory Type	Supplier Device Package	Number of Taps	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Wiper (Ohms) (Typ)	Package / Case	Package / Case [x]	Package / Case [x]	Taper	Mounting Type	Configuration	Temperature Coefficient (Typ)	Features	Number of Circuits	Tolerance	Resistance (Ohms)

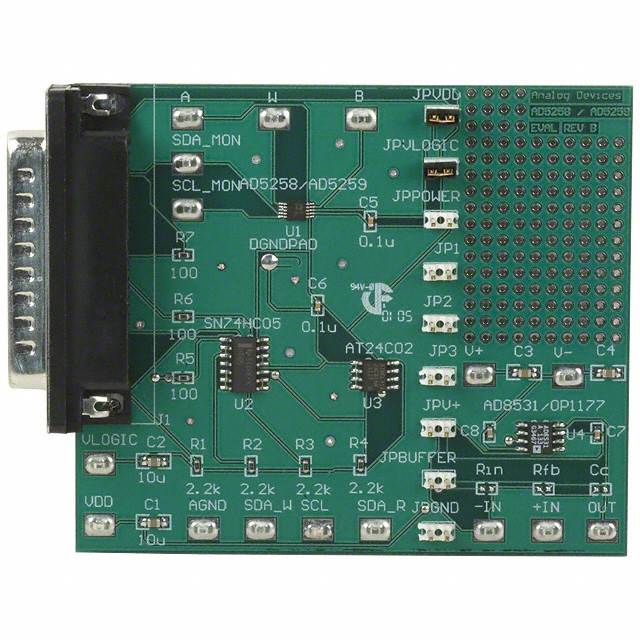

Analog Devices AD5258EVAL	Data Acquisition	Digital Potentiometer	AD5258	Board(s)	Board(s)
Analog Devices AD5258BRMZ100-R7						100 kOhms	Non-Volatile	10-MSOP	64	I2C	2.7 V	5.5 V	85 °C	-40 °C	75 Ohms	10-MSOP 10-TFSOP	3 mm	0.118 in	Linear	Surface Mount	Potentiometer	200 ppm/°C	Selectable Address	1	30 %
Analog Devices AD5258BRMZ10-R7							Non-Volatile	10-MSOP	64	I2C	2.7 V	5.5 V	85 °C	-40 °C	75 Ohms	10-MSOP 10-TFSOP	3 mm	0.118 in	Linear	Surface Mount	Potentiometer	200 ppm/°C	Selectable Address	1	30 %	10k
Analog Devices AD5258BRMZ1						1 kOhms	Non-Volatile	10-MSOP	64	I2C	2.7 V	5.5 V	85 °C	-40 °C	75 Ohms	10-MSOP 10-TFSOP	3 mm	0.118 in	Linear	Surface Mount	Potentiometer	200 ppm/°C	Selectable Address	1	30 %

Catalog

Nonvolatile, I2C®-Compatible 64-Position, Digital Potentiometer

Key Features

• Nonvolatile memory maintains wiper settings

• 64-position digital potentiometer

• Compact MSOP-10 (3 mm × 4.9 mm)

• I2C-compatible interface

• VLOGICpin provides increased interface flexibility

• End-to-end resistance 1 kΩ, 10 kΩ, 50 kΩ, 100 kΩ

• Resistance tolerance stored in EEPROM (0.1% accuracy)

• Power-on EEPROM refresh time

• <1 ms

• Software write protect command

• Address Decode Pin AD0 and

• Address Decode Pin AD1 allow four packages per bus

• 100-year typical data retention at 55°C

• Wide operating temperature−40°C to +85°C

Description

The AD5258 provides a compact, nonvolatile 3 mm × 4.9 mm packaged solution for 64-position adjustment applications. These devices perform the same electronic adjustment function as mechanical potentiometers or variable resistors, but with enhanced resolution and solid-state reliability.The wiper settings are controllable through an I2C-compatible digital interface that is also used to read back the wiper register and EEPROM content in addition, resistor tolerance is stored within EEPROM, providing an end-to-end tolerance accuracy of 0.1%. There is also a software write protection function that ensures data cannot be written to the EEPROM register.A separate VLOGICpin delivers increased interface flexibility. For users who need multiple parts on one bus, Address Bit AD0 and Address Bit AD1 allow up to four devices on the same bus.APPLICATIONSLCD panel VCOM adjustmentLCD panel brightness and contrast controlMechanical potentiometer replacement in new designsProgrammable power suppliesRF amplifier biasingAutomotive electronics adjustmentGain control and offset adjustmentFiber to the home systemsElectronics level settings
