FH39 Series

Catalog

CONN FPC 51POS 0.3MM R/A

Part	Actuator Color	Housing Color	Current Rating (Amps)	Mating Cycles	FFC, FCB Thickness [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Material Flammability Rating	Cable End Type	Locking Feature	Actuator Material	Pitch	Pitch	Number of Positions	Housing Material	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Connector/Contact Type	Contact Material	Flat Flex Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]

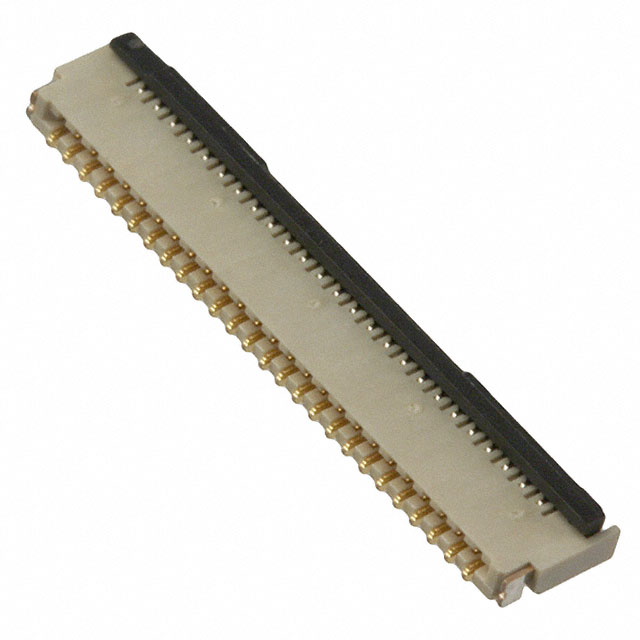

Hirose Electric Co Ltd FH39-51S-0.3SHW(99)	Black	Beige	0.2 A	10	0.2 mm	Right Angle Surface Mount	-55 C	85 °C	Solder	UL94 V-0	Tapered	Backlock Flip Lock	Polyamide (PA) Nylon	0.012 in	0.3 mm	51	Liquid Crystal Polymer (LCP)	0.044 in	1.12 mm	30 VDC	Contacts Top and Bottom	Phosphor Bronze	FPC	Gold

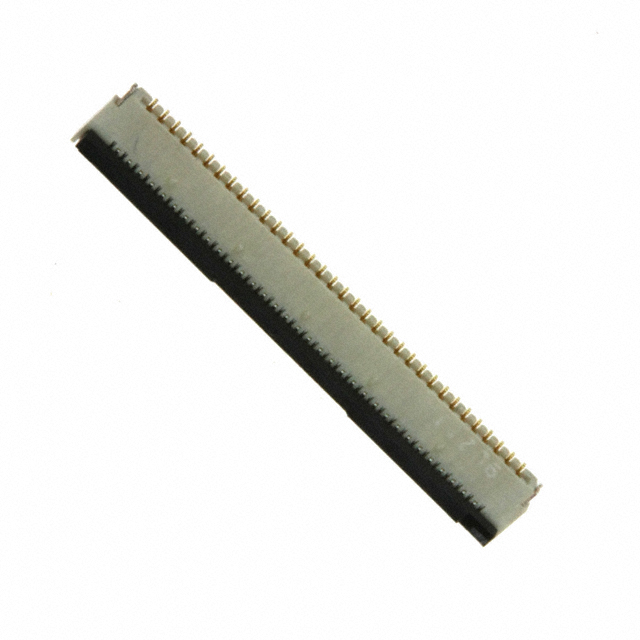

Hirose Electric Co Ltd FH39A-67S-0.3SHW(99)	Black	Beige	0.2 A	10	0.2 mm	Right Angle Surface Mount	-55 C	85 °C	Solder	UL94 V-0	Tapered	Backlock Flip Lock	Polyamide (PA) Nylon	0.012 in	0.3 mm	67	Liquid Crystal Polymer (LCP)	0.044 in	1.12 mm	30 VDC	Contacts Top and Bottom	Phosphor Bronze	FPC	Gold

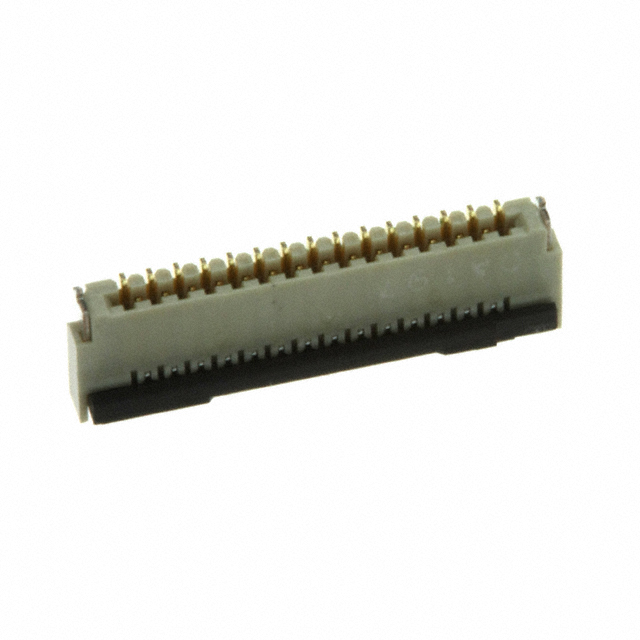

Hirose Electric Co Ltd FH39-29S-0.3SHW(99)	Black	Beige	0.2 A	10	0.2 mm	Right Angle Surface Mount	-55 C	85 °C	Solder	UL94 V-0	Tapered	Backlock Flip Lock	Polyamide (PA) Nylon	0.012 in	0.3 mm	29	Liquid Crystal Polymer (LCP)	0.044 in	1.12 mm	30 VDC	Contacts Top and Bottom	Phosphor Bronze	FPC	Gold
Hirose Electric Co Ltd FH39-51S-0.3SHW(10)	Black	Beige	0.2 A	10	0.2 mm	Right Angle Surface Mount	-55 C	85 °C	Solder	UL94 V-0	Tapered	Backlock Flip Lock	Polyamide (PA) Nylon	0.012 in	0.3 mm	51	Liquid Crystal Polymer (LCP)	0.044 in	1.12 mm	30 VDC	Contacts Top and Bottom	Phosphor Bronze	FPC	Gold	19.7 µin	0.5 µm

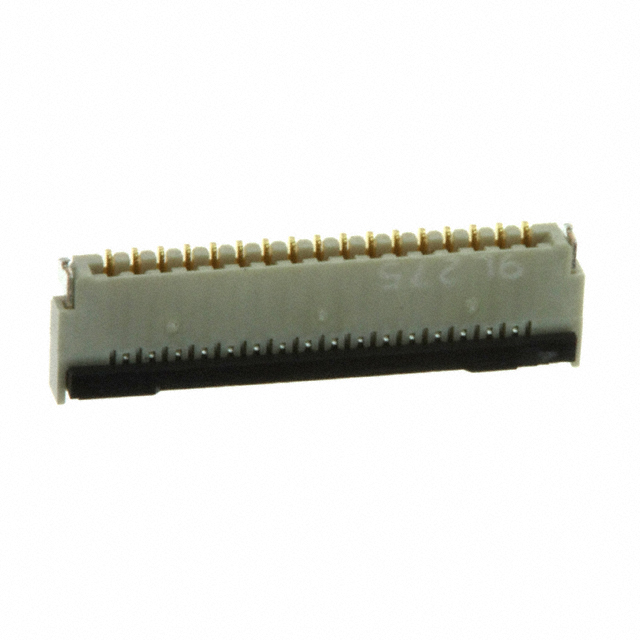

Hirose Electric Co Ltd FH39-33S-0.3SHW(10)	Black	Beige	0.2 A	10	0.2 mm	Right Angle Surface Mount	-55 C	85 °C	Solder	UL94 V-0	Tapered	Backlock Flip Lock	Polyamide (PA) Nylon	0.012 in	0.3 mm		Liquid Crystal Polymer (LCP)	0.044 in	1.12 mm	30 VDC	Contacts Top and Bottom	Phosphor Bronze	FPC	Gold	19.7 µin	0.5 µm	33

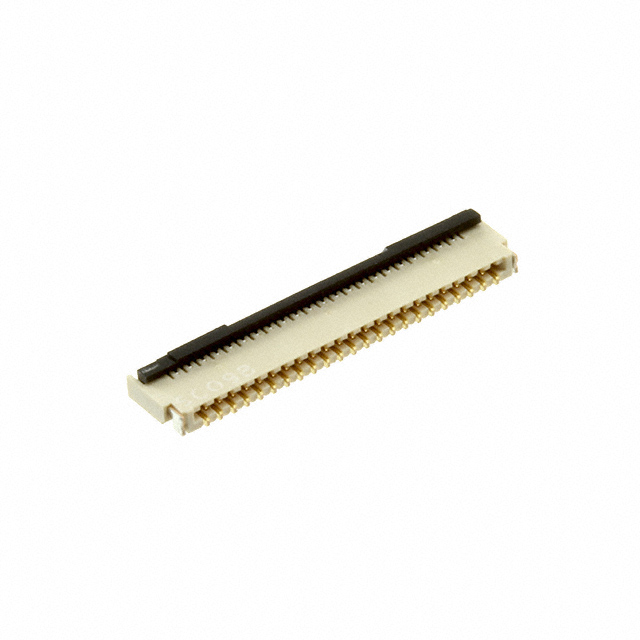

Hirose Electric Co Ltd FH39J-45S-0.3SHW(10)	Black	Beige	0.2 A	10	0.2 mm	Right Angle Surface Mount	-55 C	85 °C	Solder	UL94 V-0	Tapered	Backlock Flip Lock	Polyamide (PA) Nylon	0.012 in	0.3 mm	45	Liquid Crystal Polymer (LCP) Halogen Free	0.044 in	1.12 mm	30 VDC	Contacts Top and Bottom	Phosphor Bronze	FPC	Gold	19.7 µin	0.5 µm
Hirose Electric Co Ltd FH39-33S-0.3SHW(99)	Black	Beige	0.2 A	10	0.2 mm	Right Angle Surface Mount	-55 C	85 °C	Solder	UL94 V-0	Tapered	Backlock Flip Lock	Polyamide (PA) Nylon	0.012 in	0.3 mm		Liquid Crystal Polymer (LCP)	0.044 in	1.12 mm	30 VDC	Contacts Top and Bottom	Phosphor Bronze	FPC	Gold			33
Hirose Electric Co Ltd FH39J-51S-0.3SHW(10)	Black	Beige	0.2 A	10	0.2 mm	Right Angle Surface Mount	-55 C	85 °C	Solder	UL94 V-0	Tapered	Backlock Flip Lock	Polyamide (PA) Nylon	0.012 in	0.3 mm	51	Liquid Crystal Polymer (LCP) Halogen Free	0.044 in	1.12 mm	30 VDC	Contacts Top and Bottom	Phosphor Bronze	FPC	Gold	19.7 µin	0.5 µm
Hirose Electric Co Ltd FH39-29S-0.3SHW(10)	Black	Beige	0.2 A	10	0.2 mm	Right Angle Surface Mount	-55 C	85 °C	Solder	UL94 V-0	Tapered	Backlock Flip Lock	Polyamide (PA) Nylon	0.012 in	0.3 mm	29	Liquid Crystal Polymer (LCP)	0.044 in	1.12 mm	30 VDC	Contacts Top and Bottom	Phosphor Bronze	FPC	Gold	19.7 µin	0.5 µm

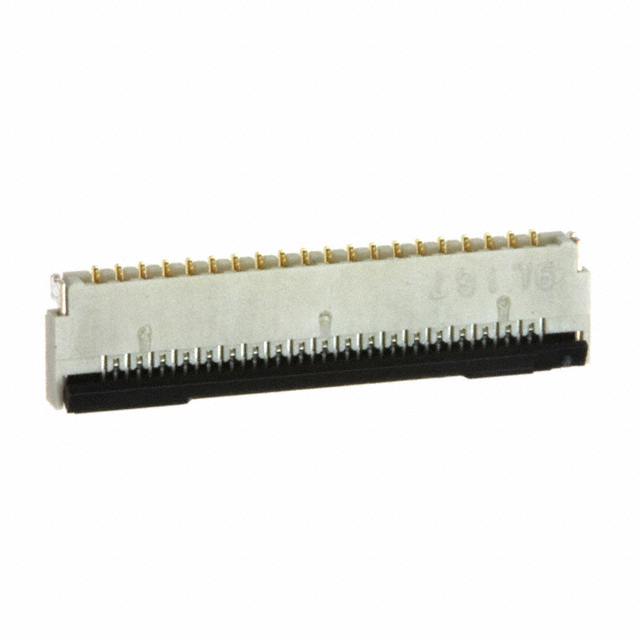

Hirose Electric Co Ltd FH39-39S-0.3SHW(99)	Black	Beige	0.2 A	10	0.2 mm	Right Angle Surface Mount	-55 C	85 °C	Solder	UL94 V-0	Tapered	Backlock Flip Lock	Polyamide (PA) Nylon	0.012 in	0.3 mm	39	Liquid Crystal Polymer (LCP)	0.044 in	1.12 mm	30 VDC	Contacts Top and Bottom	Phosphor Bronze	FPC	Gold
