ADSP-2189N Series

16-bit, 75 MIPS, 2.5v, 2 serial ports, host port, 192 KB RAM

Catalog

16-bit, 75 MIPS, 2.5v, 2 serial ports, host port, 192 KB RAM

Part	Supplier Device Package	Voltage - I/O	Voltage - Core	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Clock Rate	On-Chip RAM	Type	Package / Case	Non-Volatile Memory

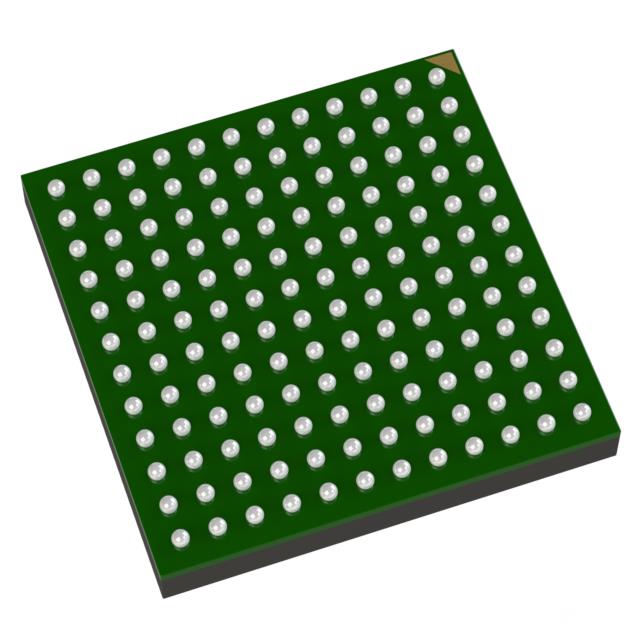

Analog Devices ADSP-2189NBCAZ-320	144-CSPBGA (10x10)	1.8 V 2.5 V 3.3 V	1.9 V	Surface Mount	85 °C	-40 °C	80 MHz	192 kB	Fixed Point	144-LFBGA CSPBGA	External
Analog Devices ADSP-2189NKST-320	100-LQFP (14x14)	1.8 V 2.5 V 3.3 V	1.8 V	Surface Mount	70 °C	0 °C	80 MHz	192 kB	Fixed Point	100-LQFP	External

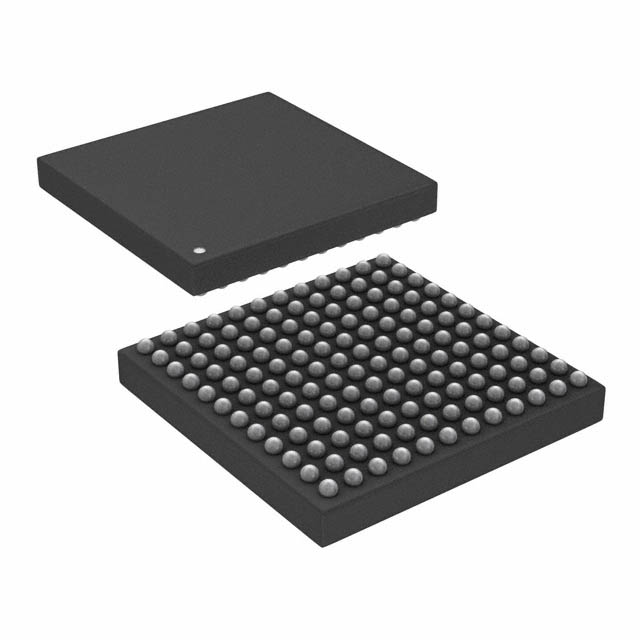

Analog Devices ADSP-2189MKCAZ-300	144-MiniBGA (10x10)	3.3 V	2.5 V	Surface Mount	70 °C	0 °C	75 MHz	192 kB	Fixed Point	144-LFBGA	External
Analog Devices ADSP-2189MKSTZ-300	100-LQFP (14x14)	3.3 V	2.5 V	Surface Mount	70 °C	0 °C	75 MHz	192 kB	Fixed Point	100-LQFP	External
Analog Devices ADSP-2189NBST-320	100-LQFP (14x14)	1.8 V 2.5 V 3.3 V	1.9 V	Surface Mount	85 °C	-40 °C	80 MHz	192 kB	Fixed Point	100-LQFP	External

Catalog

16-bit, 75 MIPS, 2.5v, 2 serial ports, host port, 192 KB RAM

Key Features

• 13 ns instruction cycle time (75 MIPS)

• 2.5 volt supply with 3.3 volt I/O

• 32K words of on-chip program RAM

• 48K words of on-chip data memory RAM

• 16-bit internal DMA port for high speed access to on-chip memory

• 8-bit DMA port to byte memory for transparent program and data memory transfers

• 0.4 mA/MIPS

• Byte memory interface for storage of data tables and program overlays

• Programmable memory strobe and separate I/O memory space permits "glueless" system

• ADSP-2100 Family code and function compatible

• 100-lead LQFP

• 144 mini-BGA package

Description

The ADSP-218xN series consists of six single chip microcomputers optimized for digital signal processing applications. All series members are pin-compatible and are differentiated solely by the amount of on-chip SRAM. This feature combined with ADSP-21xx code compatibility provide a great deal of flexibility in the design decision. The ADSP-218xN series offers products from 2 MBits of SRAM to $3.50. Specifically, the series members are -ADSP-2184N (4K PM/4K DM)ADSP-2186N (8K PM/8K DM)ADSP-2185N (16K PM/16K DM)ADSP-2187N (32K PM/32K DM)ADSP-2189N (32K PM/48K DM)ADSP-2188N (48K PM/56K DM)The ADSP-218xN series offers the highest performance (80Mhz/MIPS) and lowest power consumption (0.55mW/MIP @ 1.8V) within the ADSP-218x portfolio. All series members are offered in a 100-lead LQFP and 144-Ball MBGA packages.
