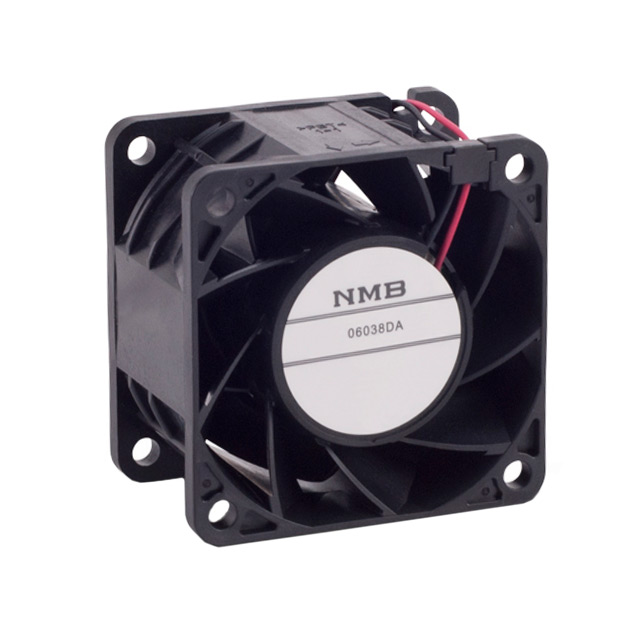

06038DA Series

Catalog

DC AXIAL FAN, 12 V, SQUARE, 60 MM, 38 MM, BALL BEARING, 50.15 CFM

Part	Current Rating (Amps)	Material - Blade	Material - Frame	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Air Flow	Air Flow	Noise	RPM	Power (Watts)	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Features	Termination	Weight [custom]	Weight [custom]	Approval Agency
NMB TECHNOLOGIES 06038DA-12Q-ETD-0	780 mA	Plastic	Plastic	70000 Hrs	10.8 VDC	13.2 VDC	Ball	Tubeaxial	60 mm	60 mm	38 mm	1.41 mł/min	50.2 CFM	58 dB(A)	13000 RPM	9.4 W	575 Pa	2.31 in H2O	70 °C	-10 °C	12 VDC	Auto Restart Speed Sensor (Tach)	3 Wire Leads
NMB TECHNOLOGIES 06038DA-12Q-EAD-0	780 mA	Plastic	Plastic	70000 Hrs	10.8 VDC	13.2 VDC	Ball	Tubeaxial	60 mm	60 mm	38 mm	1.41 mł/min	50.5 CFM	58 dB(A)	13000 RPM	9.4 W	575 Pa	2.31 in H2O	70 °C	-10 °C	12 VDC		2 Wire Leads	0.271 lb	122.92 g	UR VDE
NMB TECHNOLOGIES 06038DA-12S-ECF-0		Plastic	Plastic	70000 Hrs			Ball	Tubeaxial	60 mm	60 mm	38 mm								70 °C	-10 °C	12 VDC	Auto Restart	2 Wire Leads
NMB TECHNOLOGIES 06038DA-12S-EAD-0	1.65 A	Plastic	Plastic	70000 Hrs	10.8 VDC	13.2 VDC	Ball	Tubeaxial	60 mm	60 mm	38 mm	1.86 m³/min	66.4 CFM	63.5 dB(A)	17000 RPM	19.8 W	925 Pa	3.713 in H2O	70 °C	-10 °C	12 VDC		2 Wire Leads	0.271 lb	122.92 g	UR VDE
NMB TECHNOLOGIES 06038DA-12S-ETD-0	1.65 A	Plastic	Plastic	70000 Hrs	10.8 VDC	13.2 VDC	Ball	Tubeaxial	60 mm	60 mm	38 mm	1.86 m³/min	66.4 CFM	63.5 dB(A)	17000 RPM	19.8 W	924.1 Pa	3.71 in H2O	70 °C	-10 °C	12 VDC	Auto Restart Speed Sensor (Tach)	3 Wire Leads

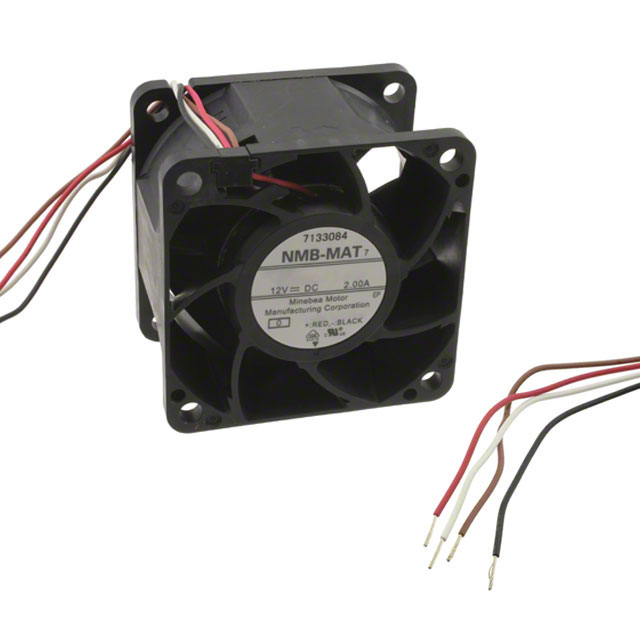

NMB TECHNOLOGIES 06038DA-12S-EUD-0	1.65 A	Plastic	Plastic	70000 Hrs	10.8 VDC	13.2 VDC	Ball	Tubeaxial	60 mm	60 mm	38 mm	1.86 m³/min	66.4 CFM	63.5 dB(A)	17000 RPM	19.8 W	925 Pa	3.713 in H2O	70 °C	-10 °C	12 VDC	PWM Control Speed Sensor (Tach)	4 Wire Leads	0.271 lb	122.92 g	UR VDE

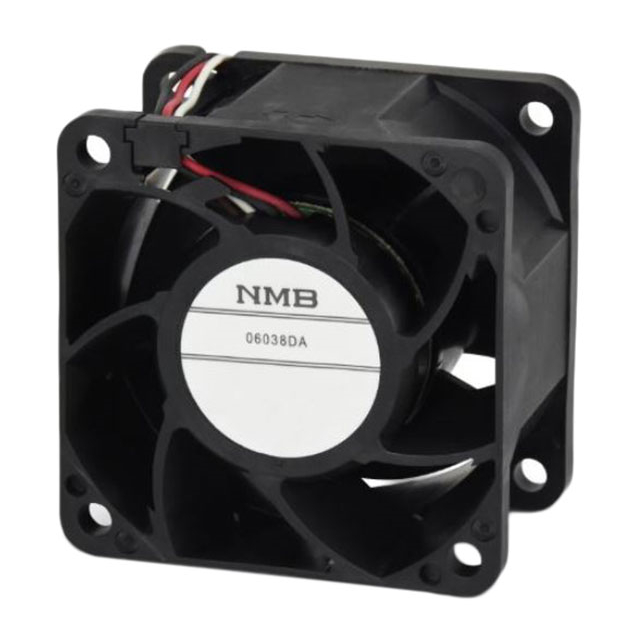

NMB TECHNOLOGIES 06038DA-12S-EWF-D	2.3 A	Plastic	Plastic	70000 Hrs	10.8 VDC	13.2 VDC	Ball	Tubeaxial	60 mm	60 mm	38 mm	2.05 m³/min	73.1 CFM	66.5 dB(A)	17000 RPM	27.6 W	886.7 Pa	3.56 in H2O	60 °C	-10 °C	12 VDC	Auto Restart PWM Control Speed Sensor (Tach)	4 Wire Leads			cULus VDE
NMB TECHNOLOGIES 06038DA-24Q-EAD-0		Plastic	Plastic	70000 Hrs			Ball	Tubeaxial	60 mm	60 mm	38 mm								70 °C	-10 °C	24 VDC	Auto Restart	2 Wire Leads
NMB TECHNOLOGIES 06038DA-12R-EAD-0	1.16 A	Plastic	Plastic	70000 Hrs	10.8 VDC	13.2 VDC	Ball	Tubeaxial	60 mm	60 mm	38 mm	1.64 m³/min	58.6 CFM	61.5 dB(A)	15000 RPM	14 W	740 Pa	2.97 in H2O	70 °C	-10 °C	12 VDC		2 Wire Leads	0.271 lb	122.92 g	UR VDE
