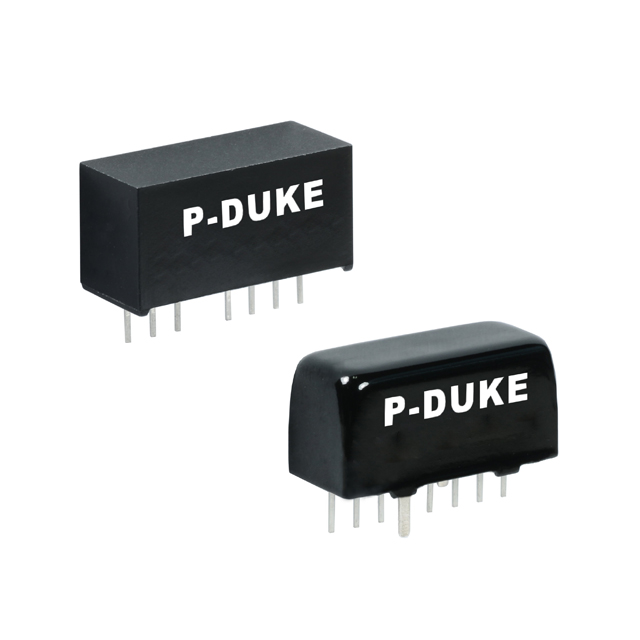

PDL06 Series

Catalog

DC DC CONVERTER 12V 6W

Part	Number of Outputs	Voltage - Input (Min)	Mounting Type	Applications	Efficiency	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Package Leads	Package Name	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Input (Max)	Power (Watts)	Voltage - Output 1	Approval Agency	Current - Output (Max)	Features	Type	Voltage - Isolation	Voltage - Output 2
P-DUKE Technology PDL06-24S12W	1	9 V	Through Hole	ITE (Commercial)	87 %	0.44 in	0.86 in	0.36 in	7 Leads	8-SIP Module	-40 °C	100 °C	36 V	6 W	12 V	CB CE cURus	500 mA	Remote On/Off Standby Output	Isolated Module	1.6 kV
P-DUKE Technology PDL06-48S05W	1	18 V	Through Hole	ITE (Commercial)	84 %	0.44 in	0.86 in	0.36 in	7 Leads	8-SIP Module	-40 °C	100 °C	75 V	6 W	5 V	CB CE cURus	1.2 A	Remote On/Off Standby Output	Isolated Module	1.6 kV
P-DUKE Technology PDL06-48S12W	1	18 V	Through Hole	ITE (Commercial)	87 %	0.44 in	0.86 in	0.36 in	7 Leads	8-SIP Module	-40 °C	100 °C	75 V	6 W	12 V	CB CE cURus	500 mA	Remote On/Off Standby Output	Isolated Module	1.6 kV
P-DUKE Technology PDL06-24D15W	2	9 V	Through Hole	ITE (Commercial)	87 %	0.44 in	0.86 in	0.36 in	7 Leads	8-SIP Module	-40 °C	100 °C	36 V	6 W	15 V	CB CE cURus	200 mA	Remote On/Off Standby Output	Isolated Module	1.6 kV	-15 V
P-DUKE Technology PDL06-24D15	2	18 V	Through Hole	ITE (Commercial)	85 %	0.44 in	0.86 in	0.36 in	7 Leads	8-SIP Module	-40 °C	90 °C	36 V	6 W	15 V	CB CE cURus	200 mA	Remote On/Off	Isolated Module	1.6 kV	-15 V
P-DUKE Technology PDL06-05D15	2	4.5 V	Through Hole	ITE (Commercial)	84 %	0.44 in	0.86 in	0.36 in	7 Leads	8-SIP Module	-40 °C	90 °C	9 V	6 W	15 V	CB CE cURus	200 mA	Remote On/Off	Isolated Module	1.6 kV	-15 V
P-DUKE Technology PDL06-24S24W	1	9 V	Through Hole	ITE (Commercial)	87 %	0.44 in	0.86 in	0.36 in	7 Leads	8-SIP Module	-40 °C	100 °C	36 V	6 W	24 V	CB CE cURus	250 mA	Remote On/Off Standby Output	Isolated Module	1.6 kV
