ADW54012 Series

I2C®CMOS 8 × 8 Unbuffered Analog Switch Array with Dual/Single Supplies

Catalog

I2C®CMOS 8 × 8 Unbuffered Analog Switch Array with Dual/Single Supplies

Part	Voltage - Supply, Single (V+)	Multiplexer/Demultiplexer Circuit	Number of Channels	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Applications	Mounting Type	Features	On-State Resistance (Max) [Max]	Voltage - Supply, Dual (V±) [Max]	Voltage - Supply, Dual (V±) [Min]	Package / Case	-3db Bandwidth	Utilized IC / Part	Type	Function	Contents	Supplied Contents
Analog Devices ADG2188YCPZ-HS-RL7	12 V	8:8	1	-40 °C	125 °C	32-LFCSP-VQ (5x5)	Telecommunications Ultrasound	Surface Mount	I2C	50 Ohm	5 V	-5 V	32-VFQFN Exposed Pad CSP	210 MHz
Analog Devices ADG2188BCPZ-HS-RL7	12 V	8:8	1	-40 °C	85 °C	32-LFCSP-VQ (5x5)	Telecommunications Ultrasound	Surface Mount	I2C	50 Ohm	5 V	-5 V	32-VFQFN Exposed Pad CSP	210 MHz
Analog Devices ADG2188YCPZ-REEL7	12 V	8:8	1	-40 °C	125 °C	32-LFCSP-VQ (5x5)	Telecommunications Ultrasound	Surface Mount	I2C	50 Ohm	5 V	-5 V	32-VFQFN Exposed Pad CSP	210 MHz
Analog Devices ADW54012Z-0REEL7	12 V	8:8	1	-40 °C	85 °C	32-LFCSP-VQ (5x5)	Telecommunications Ultrasound	Surface Mount	I2C	50 Ohm	5 V	-5 V	32-VFQFN Exposed Pad CSP	210 MHz
Analog Devices ADG2188BCPZ-REEL7	12 V	8:8	1	-40 °C	85 °C	32-LFCSP-VQ (5x5)	Telecommunications Ultrasound	Surface Mount	I2C	50 Ohm	5 V	-5 V	32-VFQFN Exposed Pad CSP	210 MHz
Analog Devices EVAL-ADG2188EBZ															ADG2188	Interface	Crosspoint Switch/Multiplexer	Board(s)	Board(s)

Catalog

I2C®CMOS 8 × 8 Unbuffered Analog Switch Array with Dual/Single Supplies

Key Features

• I2C-compatible interface

• 3.4 MHz high speed I2C option

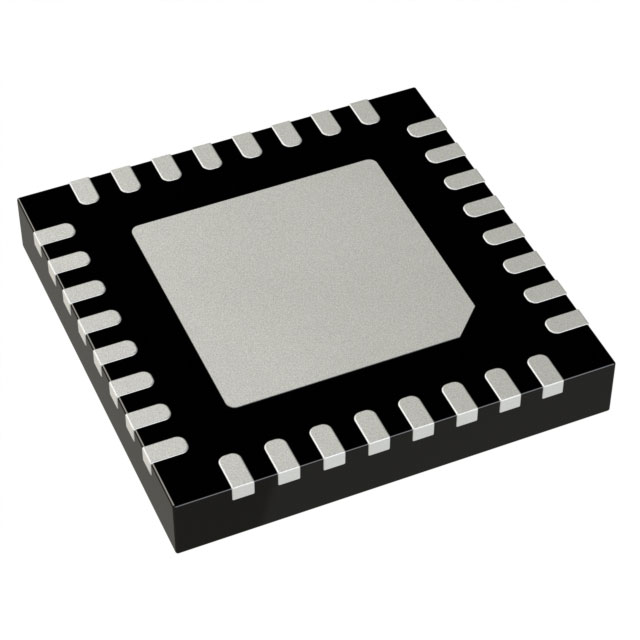

• 32-lead LFCSP_WQ (5 mm × 5 mm)

• Double-buffered input logicSimultaneous update of multiple switches

• Simultaneous update of multiple switches

• Up to 300 MHz bandwidth

• Fully specified at dual ±5 V/single +12 V operation

• On resistance 35 Ω maximum

• Low quiescent current < 20 μA

• Qualified for automotive applications

Description

The ADG2188 is an analog cross point switch with an array size of 8 × 8. The switch array is arranged so that there are eight columns by eight rows, for a total of 64 switch channels. The array is bidirectional, and the rows and columns can be configured as either inputs or outputs. Each of the 64 switches can be addressed and configured through the I2C-compatible interface. Standard, full speed, and high speed (3.4 MHz) I2C interfaces are supported. Any simultaneous switch combination is allowed. An additional feature of the ADG2188 is that switches can be updated simultaneously, using the LDSW command. In addition, aRESEToption allows all of the switch channels to be reset/off. At power on, all switches are in the off condition. The device is packaged in a 32-lead, 5 mm × 5 mm LFCSP_WQ.ApplicationsAV switching in TVAutomotive infotainmentAV receiversCCTVUltrasound applicationsKVM switchingTelecom applicationsTest equipment/instrumentationPBX systems
