B3FS Series

Tactile Switches Mechanical Keyswitch

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

Tactile Switches Mechanical Keyswitch

Catalog

Tactile Switches Mechanical Keyswitch

Part	Mechanical Life	Switch Travel	Outline [y]	Outline [x]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Actuator Orientation	Switch Function	Actuator Height off PCB, Vertical [z]	Circuit	Mounting Type	Actuator Type	Contact Rating @ Voltage	Illumination

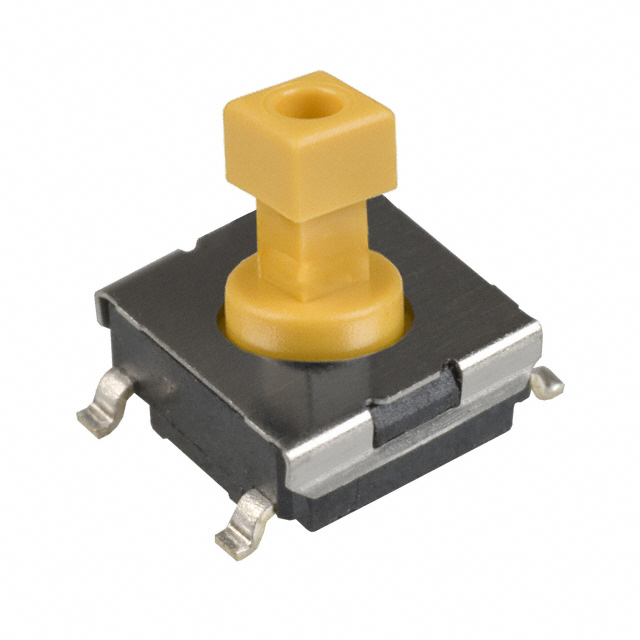

Omron Electronics Inc-EMC Div B3FS-1052	300000 Cycles	0.25 mm	6 mm	6.3 mm	Gull Wing	-25 °C	70 °C	150 gf	Top Actuated	Off-Mom	7.3 mm	SPST-NO	Surface Mount	Plunger for Cap	0.05 A 24 VDC	Non-Illuminated

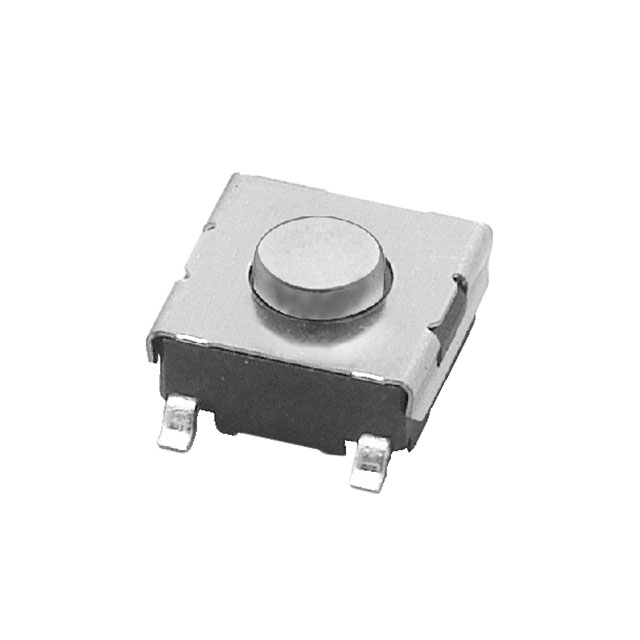

Omron Electronics Inc-EMC Div B3FS-1005P	300000 Cycles	0.25 mm	6 mm	6.3 mm	Gull Wing	-25 °C	70 °C	260 gf	Top Actuated	Off-Mom	3.1 mm	SPST-NO	Surface Mount	Standard	0.05 A 24 VDC	Non-Illuminated

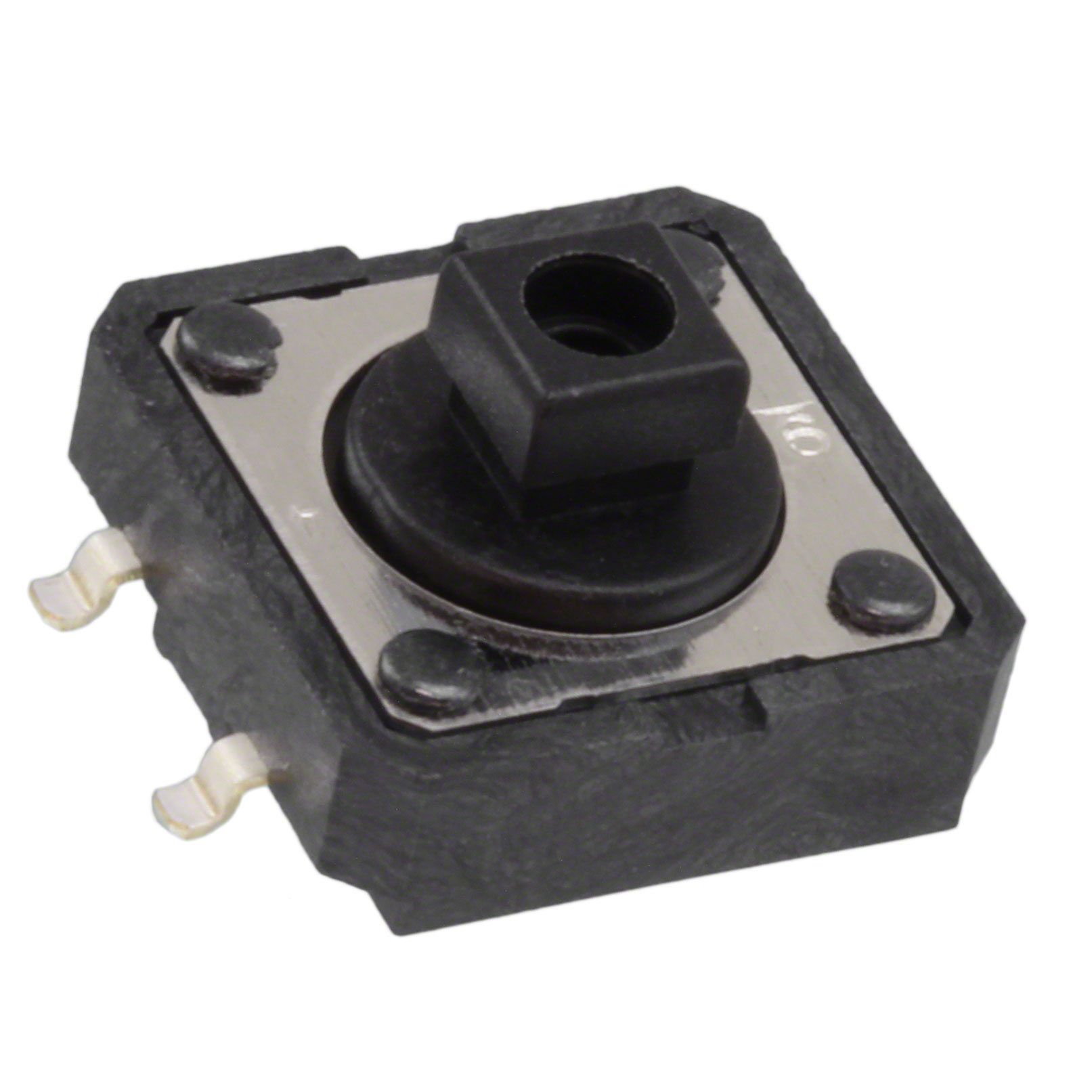

Omron Electronics Inc-EMC Div B3FS-4055P	1000000 Cycles	0.25 mm	12 mm	12 mm	Gull Wing	-25 °C	70 °C	260 gf	Top Actuated	Off-Mom	7.3 mm	SPST-NO	Surface Mount	Plunger for Cap	0.05 A 24 VDC	Non-Illuminated

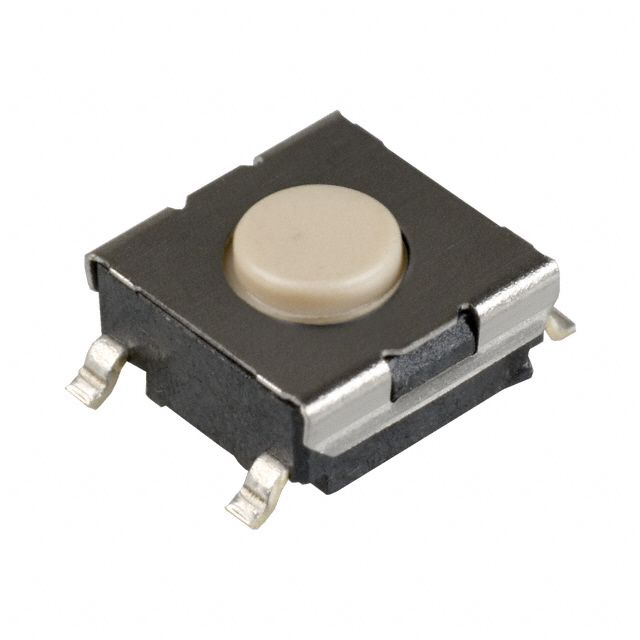

Omron Electronics Inc-EMC Div B3FS-1002P	300000 Cycles	0.25 mm	6 mm	6.3 mm	Gull Wing	-25 °C	70 °C	150 gf	Top Actuated	Off-Mom	3.1 mm	SPST-NO	Surface Mount	Standard	0.05 A 24 VDC	Non-Illuminated
Omron Electronics Inc-EMC Div B3FS-1050	1000000 Cycles	0.25 mm	6 mm	6.3 mm	Gull Wing	-25 °C	70 °C	100 gf	Top Actuated	Off-Mom	7.3 mm	SPST-NO	Surface Mount	Plunger for Cap	0.05 A 24 VDC	Non-Illuminated

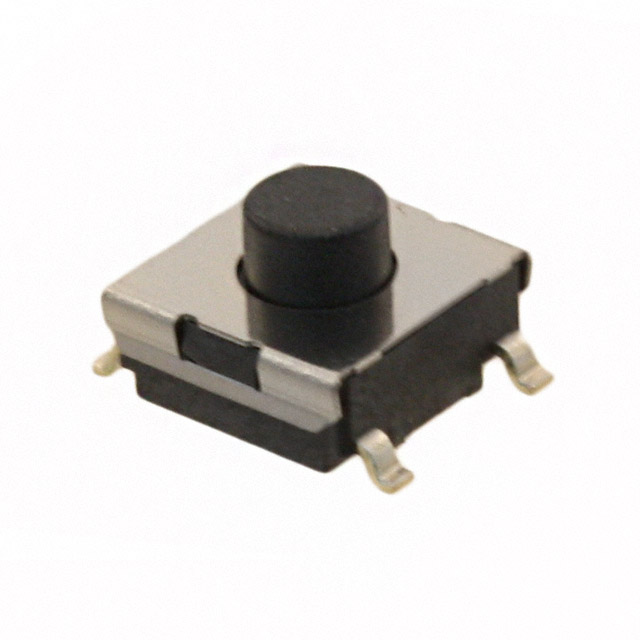

Omron Electronics Inc-EMC Div B3FS-1010P	1000000 Cycles	0.25 mm	6 mm	6.3 mm	Gull Wing	-25 °C	70 °C	100 gf	Top Actuated	Off-Mom	4.3 mm	SPST-NO	Surface Mount	Standard	0.05 A 24 VDC	Non-Illuminated

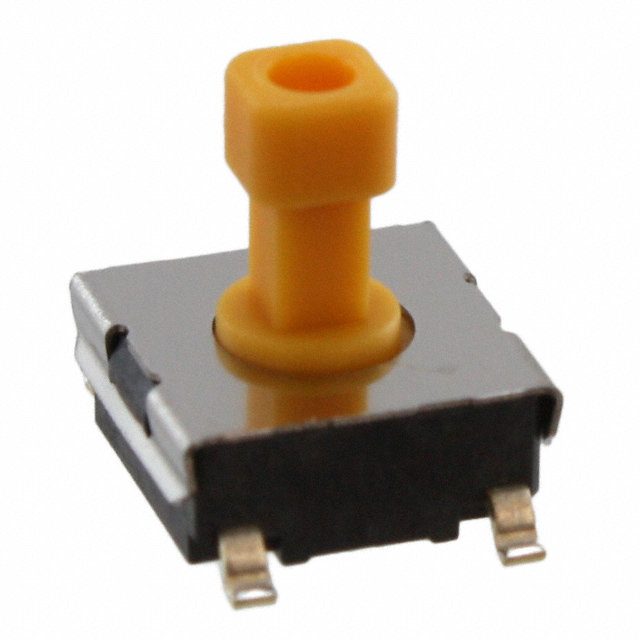

Omron Electronics Inc-EMC Div B3FS-1052P	300000 Cycles	0.25 mm	6 mm	6.3 mm	Gull Wing	-25 °C	70 °C	150 gf	Top Actuated	Off-Mom	7.3 mm	SPST-NO	Surface Mount	Plunger for Cap	0.05 A 24 VDC	Non-Illuminated

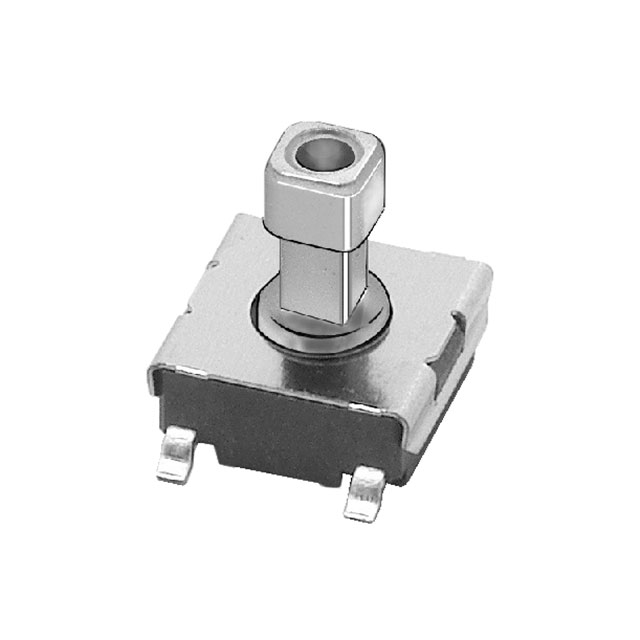

Omron Electronics Inc-EMC Div B3FS-1050P	1000000 Cycles	0.25 mm	6 mm	6.3 mm	Gull Wing	-25 °C	70 °C	100 gf	Top Actuated	Off-Mom	7.3 mm	SPST-NO	Surface Mount	Plunger for Cap	0.05 A 24 VDC	Non-Illuminated

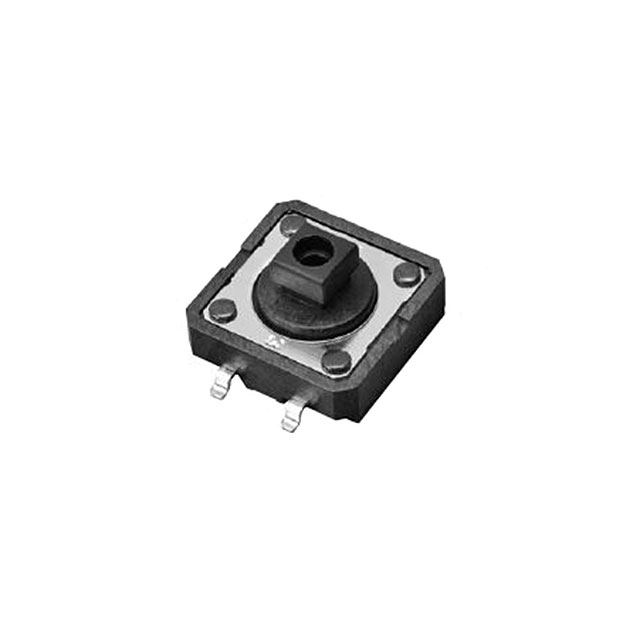

Omron Electronics Inc-EMC Div B3FS-4052P	3000000 Cycles	0.25 mm	12 mm	12 mm	Gull Wing	-25 °C	70 °C	150 gf	Top Actuated	Off-Mom	7.3 mm	SPST-NO	Surface Mount	Plunger for Cap	0.05 A 24 VDC	Non-Illuminated

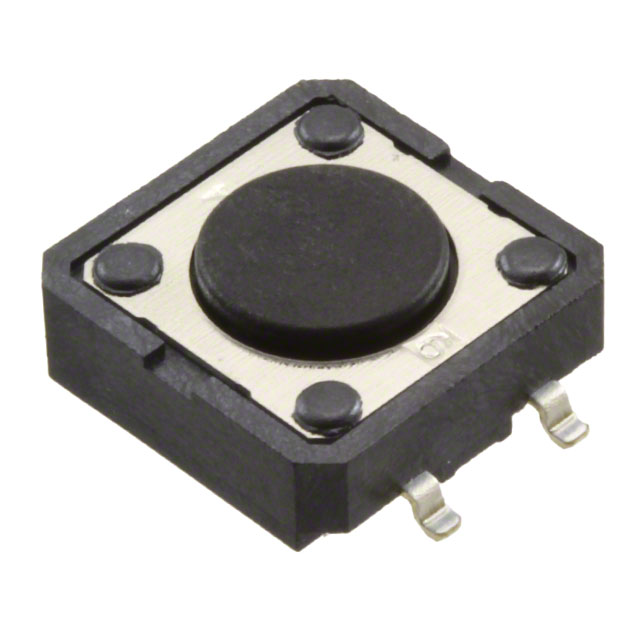

Omron Electronics Inc-EMC Div B3FS-4005P	1000000 Cycles	0.25 mm	12 mm	12 mm	Gull Wing	-25 °C	70 °C	260 gf	Top Actuated	Off-Mom	4.3 mm	SPST-NO	Surface Mount	Standard	0.05 A 24 VDC	Non-Illuminated
