ADP1715 Series

Catalog

IC REG LDO 0.9V 0.5A 8MSOP

Part	Supplier Device Package	Control Features	Current - Quiescent (Iq)	Package / Case	Package / Case [custom]	Package / Case	Mounting Type	Voltage Dropout (Max) [Max]	Number of Regulators	Output Configuration	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed)	Output Type	Protection Features	Current - Supply (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Regulator Type	Channels per IC	Voltage - Output	Board Type	Supplied Contents	Output Type	Voltage - Output (Max)	PSRR [Max]	PSRR [Min]
Analog Devices ADP1715ARMZ-0.9-R7	8-MSOP	Enable Soft Start	100 µA	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	0.4 V	1	Positive	500 mA	-40 °C	125 ¯C	0.9 V	1.81 mOhm	Over Current Over Temperature	650 µA	5.5 V
Analog Devices ADP1715ARMZ-1.05R7	8-MSOP	Enable Soft Start	100 µA	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	0.4 V	1	Positive	500 mA	-40 °C	125 ¯C	1.05 V	1.81 mOhm	Over Current Over Temperature	650 µA	5.5 V
Analog Devices ADP1715-1.8-EVALZ											500 mA								2.5 V	5.5 V	ADP1715	Positive Fixed	1 - Single	1.8 V	Fully Populated	Board(s)
Analog Devices ADP1715ARMZ-1.0-R7	8-MSOP	Enable Soft Start	100 µA	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	0.4 V	1	Positive	500 mA	-40 °C	125 ¯C	1 V	1.81 mOhm	Over Current Over Temperature	650 µA	5.5 V
Analog Devices ADP1715ARMZ-0.8-R7	8-MSOP	Enable Soft Start	100 µA	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	0.4 V	1	Positive	500 mA	-40 °C	125 ¯C	0.8 V	1.81 mOhm	Over Current Over Temperature	650 µA	5.5 V
Analog Devices ADP1715ARMZ-1.15R7	8-MSOP	Enable Soft Start	100 µA	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	0.4 V	1	Positive	500 mA	-40 °C	125 ¯C	1.15 V	1.81 mOhm	Over Current Over Temperature	650 µA	5.5 V
Analog Devices ADP1715ARMZ-3.0-R7	8-MSOP	Enable Soft Start	100 µA	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	0.5 V	1	Positive	500 mA	-40 °C	125 ¯C		1.81 mOhm	Over Current Over Temperature	650 µA	5.5 V
Analog Devices ADP1715ARMZ-1.1-R7	8-MSOP	Enable Soft Start	100 µA	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	0.4 V	1	Positive	500 mA	-40 °C	125 ¯C	1.1 V	1.81 mOhm	Over Current Over Temperature	650 µA	5.5 V

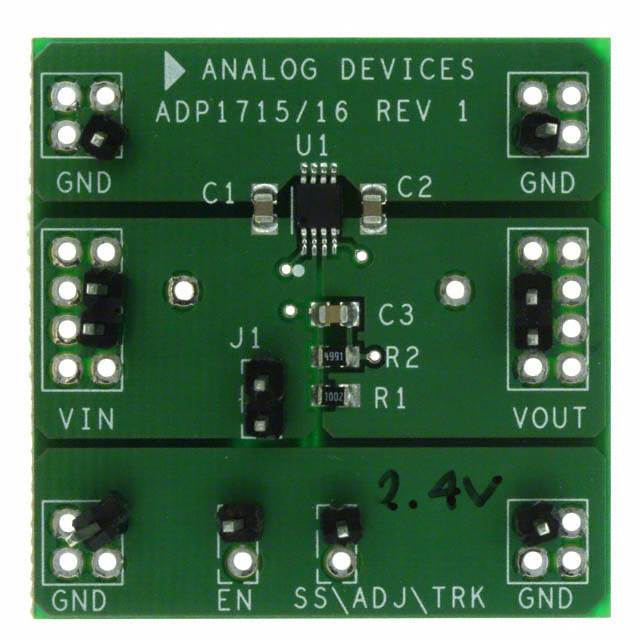

Analog Devices ADP1715-EVALZ											500 mA								2.5 V	5.5 V	ADP1715	Positive Adjustable	1 - Single	2.4 V	Fully Populated	Board(s)
Analog Devices ADP1715ARMZ-R7	8-MSOP	Enable Soft Start	100 µA	8-MSOP 8-TSSOP	0.118 in	3 mm	Surface Mount	0.4 V	1	Positive	500 mA	-40 °C	125 ¯C	0.8 V		Over Current Over Temperature	650 µA	5.5 V									Adjustable	5 V	67 dB	53 dB
