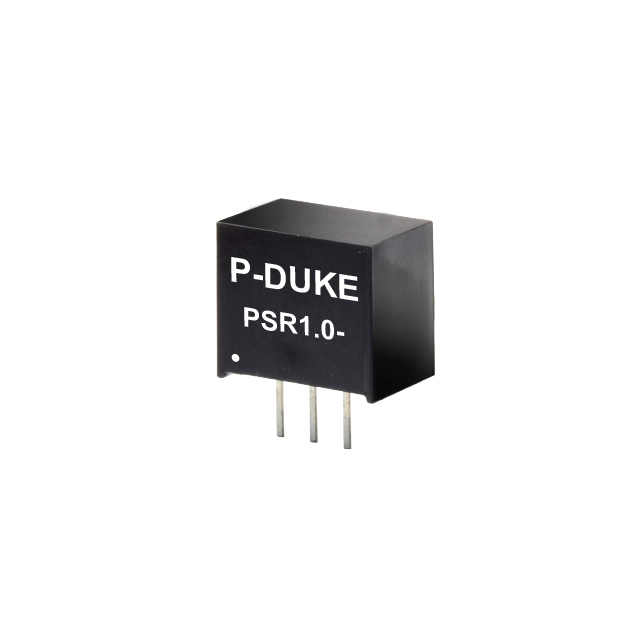

PSR1.0 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
DC DC CONVERTER 1.8V 1.8W
| Part | Package / Case | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Features | Voltage - Output 1 | Type | Number of Outputs | Voltage - Input (Min) [Min] | Applications | Voltage - Input (Max) [Max] | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Mounting Type | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | 3-SIP Module | 1 A | -40 °C | 100 °C | Standby Output | 1.8 V | Non-Isolated PoL Module | 1 | 4.6 V | ITE (Commercial) | 36 V | 1.8 W | 7.5 mm | 11.7 mm | 0.4 " | 0.46 in | 0.3 " | 10.1 mm | Through Hole | |
P-DUKE Technology | 3-SIP Module | 1 A | -40 °C | 100 °C | Standby Output | 3.3 V | Non-Isolated PoL Module | 1 | 4.75 V | ITE (Commercial) | 36 V | 3.3 W | 7.5 mm | 11.7 mm | 0.4 " | 0.46 in | 0.3 " | 10.1 mm | Through Hole | 91 % |
P-DUKE Technology | 3-SIP Module | 1 A | -40 °C | 100 °C | Standby Output | 12 V | Non-Isolated PoL Module | 1 | 15 V | ITE (Commercial) | 36 V | 12 W | 7.5 mm | 11.7 mm | 0.4 " | 0.46 in | 0.3 " | 10.1 mm | Through Hole | 95 % |
