8080 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

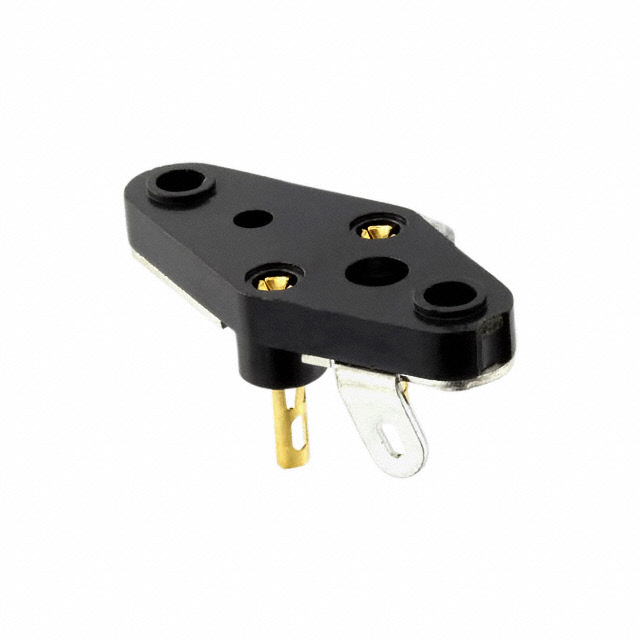

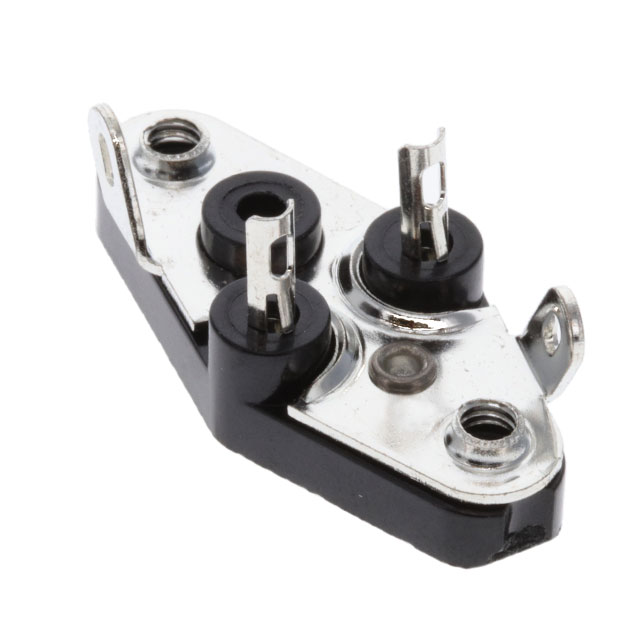

CONN TRANSIST TO-3 3POS TIN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Type | Housing Material | Termination | Contact Material - Post | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Contact Material - Mating | Number of Positions or Pins (Grid) | Material Flammability Rating | Contact Finish - Mating | Contact Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 125 °C | 5.08 µm | 200 µin | Closed Frame | Transistor TO-3 | Polytetrafluoroethylene (PTFE) | Solder | Beryllium Copper | Tin | 200 µin | 5.08 µm | Chassis Mount | Beryllium Copper | 3 | |||
 TE Connectivity AMP Connectors | -55 C | 125 °C | 5.08 µm | 200 µin | Closed Frame | Transistor TO-3 | Phenolic | Solder | Beryllium Copper | Tin-Lead | Through Hole | Beryllium Copper | 3 | UL94 V-0 | Tin-Lead | |||
 TE Connectivity AMP Connectors | -55 C | 125 °C | Closed Frame | Transistor TO-3 | Fluoropolymer (FP) | Solder | Beryllium Copper | Gold | Through Hole | Beryllium Copper | 4 | Gold | ||||||
TE Connectivity AMP Connectors | -55 C | 125 °C | Closed Frame | Transistor TO-3 | Polytetrafluoroethylene (PTFE) | Solder | Beryllium Copper | Tin | Chassis Mount | Beryllium Copper | 3 | |||||||
TE Connectivity AMP Connectors | -55 C | 125 °C | 5.08 µm | 200 µin | Closed Frame | Transistor TO-3 | Diallyl Phthalate (DAP) | Solder | Beryllium Copper | Tin-Lead | 20 µin | 0.51 µm | Chassis Mount | Beryllium Copper | 3 | UL94 V-0 | Tin-Lead | 25 mOhm |
TE Connectivity AMP Connectors | -55 C | 125 °C | 12.7 µm | 500 µin | Closed Frame | Transistor TO-3 | Diallyl Phthalate (DAP) | Solder | Beryllium Copper | Silver | 500 µin | 12.7 µm | Chassis Mount | Beryllium Copper | 3 | UL94 V-0 | Silver | |
TE Connectivity AMP Connectors | -55 C | 125 °C | Closed Frame | Transistor TO-3 | Polytetrafluoroethylene (PTFE) | Solder | Beryllium Copper | Tin | Chassis Mount | Beryllium Copper | 3 | |||||||
TE Connectivity AMP Connectors | -55 C | 125 °C | Closed Frame | Transistor TO-3 | Polytetrafluoroethylene (PTFE) | Solder | Beryllium Copper | Tin-Lead | Chassis Mount | Beryllium Copper | 3 | Tin-Lead | ||||||
 TE Connectivity AMP Connectors | -55 C | 125 °C | Closed Frame | Transistor TO-3 | Polytetrafluoroethylene (PTFE) | Solder | Beryllium Copper | Silver | Chassis Mount | Beryllium Copper | 3 | Silver | ||||||
TE Connectivity AMP Connectors | -55 C | 125 °C | Closed Frame | Transistor TO-3 | Polytetrafluoroethylene (PTFE) | Solder | Beryllium Copper | Gold | Chassis Mount | Beryllium Copper | 3 | Gold |
