E3004S Series
Manufacturer: Prysmian Group
Beta
⌘K

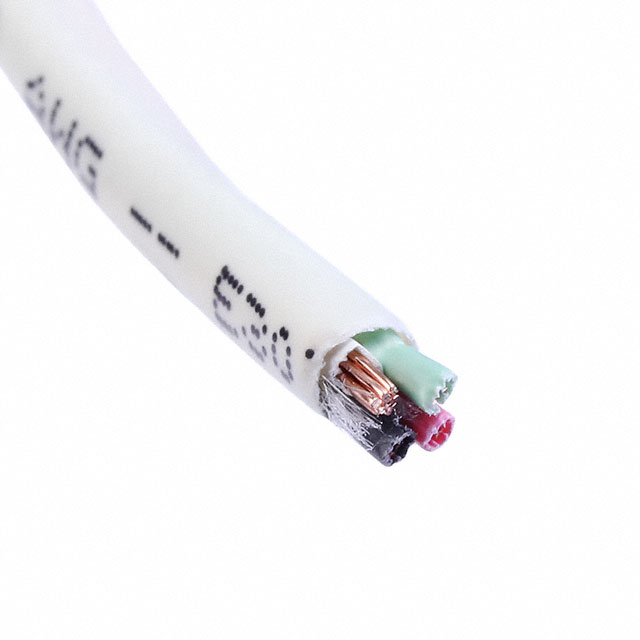

CABLE 4COND 22AWG PINK
| Part | Usage | Cable Type | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Material | Length | Length | Wire Gauge | Voltage | Jacket Color | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Alarm Security Sound | Multi-Conductor | 0.381 mm | 0.015 in | Plenum Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 22 AWG | 300 VDC | Pink | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4 | 30 AWG | 7 | Copper Annealed Bare | ASTM B-3 |
 Prysmian Group | Alarm Security Sound | Multi-Conductor | 0.381 mm | 0.015 in | Plenum Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | 22 AWG | 300 VDC | Natural | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4 | 30 AWG | 7 | Copper Annealed Bare | ASTM B-3 |
Prysmian Group | Alarm Security Sound | Multi-Conductor | 0.381 mm | 0.015 in | Plenum Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 22 AWG | 300 VDC | White | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4 | 30 AWG | 7 | Copper Bare | ASTM B-3 |
 Prysmian Group | Alarm Security Sound | Multi-Conductor | 0.381 mm | 0.015 in | Plenum Poly-Vinyl Chloride (PVC) | 762 m | 2500 ft | 22 AWG | 300 VDC | Natural | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4 | 30 AWG | 7 | Copper Annealed Bare | ASTM B-3 |
Prysmian Group | Alarm Security Sound | Multi-Conductor | 0.381 mm | 0.015 in | Plenum Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 22 AWG | 300 VDC | Pink | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4 | 30 AWG | 7 | Copper Annealed Bare | ASTM B-3 |
Prysmian Group | Alarm Security Sound | Multi-Conductor | 0.381 mm | 0.015 in | Plenum Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | 22 AWG | 300 VDC | Natural | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4 | 30 AWG | 7 | Copper Annealed Bare | ASTM B-3 |
Prysmian Group | Alarm Security Sound | Multi-Conductor | 0.381 mm | 0.015 in | Plenum Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 22 AWG | 300 VDC | White | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4 | 30 AWG | 7 | Copper Bare | ASTM B-3 |
Prysmian Group | Alarm Security Sound | Multi-Conductor | 0.381 mm | 0.015 in | Plenum Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 22 AWG | 300 VDC | Green Neon | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4 | 30 AWG | 7 | Copper Annealed Bare | ASTM B-3 |
Prysmian Group | Alarm Security Sound | Multi-Conductor | 0.381 mm | 0.015 in | Plenum Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 22 AWG | 300 VDC | Green Neon | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4 | 30 AWG | 7 | Copper Annealed Bare | ASTM B-3 |
Prysmian Group | Alarm Security Sound | Multi-Conductor | 0.381 mm | 0.015 in | Plenum Poly-Vinyl Chloride (PVC) | 762 m | 2500 ft | 22 AWG | 300 VDC | Natural | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 4 | 30 AWG | 7 | Copper Annealed Bare | ASTM B-3 |
