KMC9BPD Series

Catalog

CONN PLUG MALE 6P GOLD SLDR CUP

Part	Backshell Material, Plating	Shell Size - Insert	Ingress Protection	Insert Material	Features	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Voltage Rating	Color	Number of Positions	Orientation	Primary Material	Shell Finish	Contact Material	Mounting Type

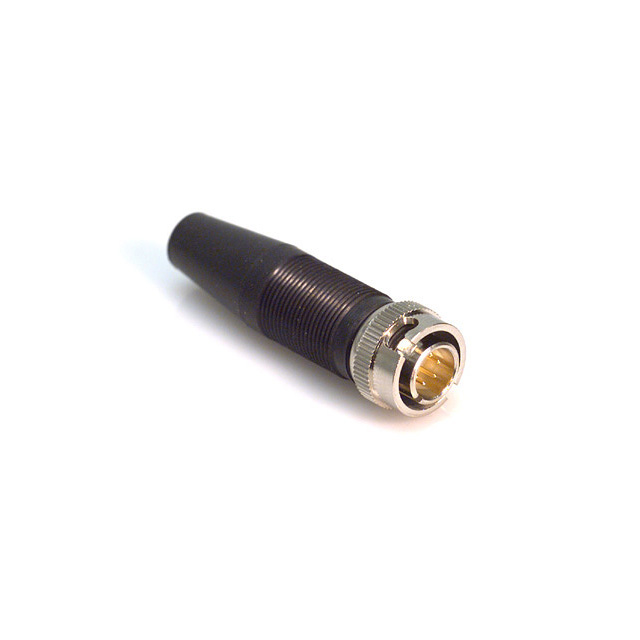

Hirose Electric Co Ltd KMC9BPD-6P(71)	Brass Nickel	9	Water Resistant	Polyacetal	Backshell Clamp Coupling Nut Strain Relief	Brass	78.7 µin	2 µm	Bayonet Lock	Plug Male Pins	-10 °C	60 °C	Gold	100 VAC 140 VDC	Black Silver	6	Keyed	Metal	Nickel	Brass	Free Hanging (In-Line)

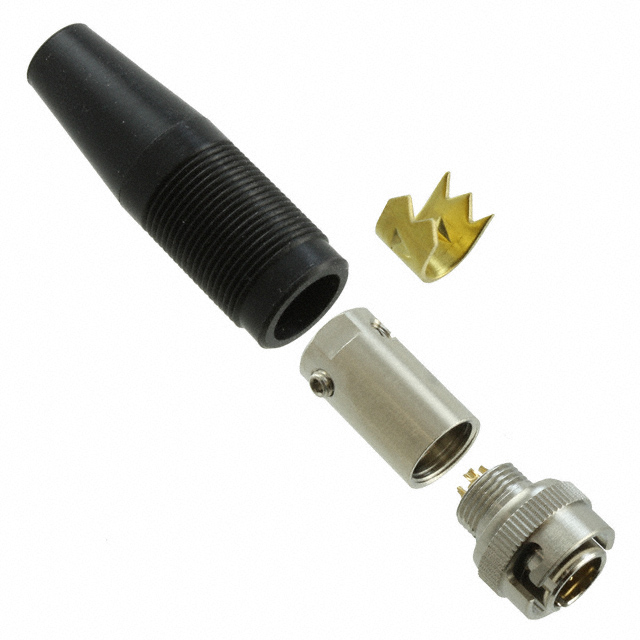

Hirose Electric Co Ltd KMC9BPD-4P(71)	Brass Nickel	9	Water Resistant	Polyacetal	Backshell Clamp Coupling Nut Strain Relief	Brass	78.7 µin	2 µm	Bayonet Lock	Plug Male Pins	-25 °C	85 °C	Gold	100 VAC 140 VDC	Black Silver	4	Keyed	Metal	Nickel	Brass	Free Hanging (In-Line)
