E3622S Series
Manufacturer: Prysmian Group
Beta
⌘K

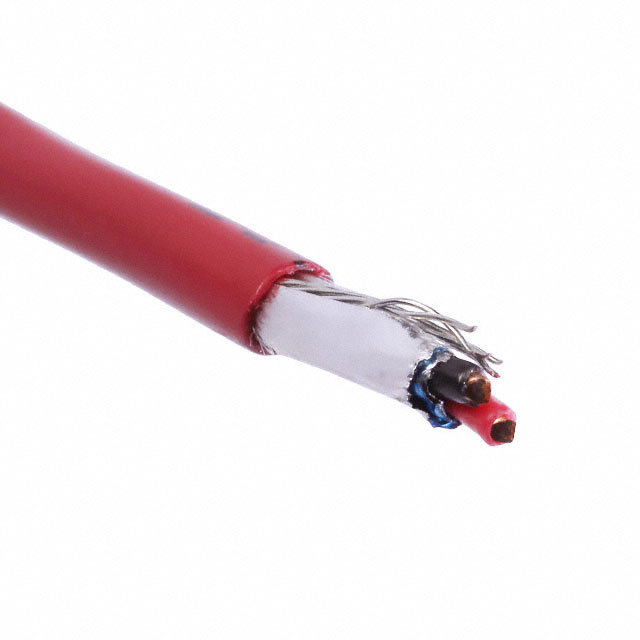

CABLE 2COND 14AWG RED SHLD
| Part | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Shield Coverage | Jacket Color | Length [x] | Length [x] | Conductor Strand | Number of Conductors | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Usage | Voltage | Shield Type | Jacket (Insulation) Material | Shield Material | Wire Gauge | Features | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 100 % | Red | 100 ft | 30.5 m | Solid | 2 | Multi-Conductor | 5.33 mm | 0.21 in | 0.381 mm | 0.015 in | Alarm Safety | 300 VDC | Foil | Plenum Poly-Vinyl Chloride (PVC) | Flexfoil® | 14.5 AWG | Drain Wire Rip Cord | Copper Bare |
Prysmian Group | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 152.4 m | 500 ft | 100 % | Red | Solid | 2 | Multi-Conductor | 5.33 mm | 0.21 in | 0.381 mm | 0.015 in | Alarm Safety | 300 VDC | Foil | Plenum Poly-Vinyl Chloride (PVC) | Flexfoil® | 14.5 AWG | Drain Wire Rip Cord | Copper Bare | ||
Prysmian Group | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 152.4 m | 500 ft | Red | Solid | 2 | Multi-Conductor | 5.33 mm | 0.21 in | 0.381 mm | 0.015 in | Alarm Safety | 300 VDC | Foil | Plenum Poly-Vinyl Chloride (PVC) | 14.5 AWG | Drain Wire Rip Cord | Copper Bare | ||||
 Prysmian Group | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 762 m | 2500 ft | 100 % | Red | Solid | 2 | Multi-Conductor | 5.33 mm | 0.21 in | 0.381 mm | 0.015 in | Alarm Safety | 300 VDC | Foil | Plenum Poly-Vinyl Chloride (PVC) | Flexfoil® | 14.5 AWG | Drain Wire Rip Cord | Copper Bare | ||
Prysmian Group | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 304.8 m | 1000 ft | Red | Solid | 2 | Multi-Conductor | 5.33 mm | 0.21 in | 0.381 mm | 0.015 in | Alarm Safety | 300 VDC | Foil | Plenum Poly-Vinyl Chloride (PVC) | 14.5 AWG | Drain Wire Rip Cord | Copper Bare | ||||
Prysmian Group | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Red | 100 ft | 30.5 m | Solid | 2 | Multi-Conductor | 5.33 mm | 0.21 in | 0.381 mm | 0.015 in | Alarm Safety | 300 VDC | Foil | Plenum Poly-Vinyl Chloride (PVC) | 14.5 AWG | Drain Wire Rip Cord | Copper Bare | ||
 Prysmian Group | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 304.8 m | 1000 ft | 100 % | Blue | Solid | 2 | Multi-Conductor | 5.33 mm | 0.21 in | 0.381 mm | 0.015 in | Alarm Safety | 300 VDC | Foil | Plenum Poly-Vinyl Chloride (PVC) | Flexfoil® | 14.5 AWG | Drain Wire Rip Cord | Copper Bare | ||
Prysmian Group | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 304.8 m | 1000 ft | 100 % | Red | Solid | 2 | Multi-Conductor | 5.33 mm | 0.21 in | 0.381 mm | 0.015 in | Alarm Safety | 300 VDC | Foil | Plenum Poly-Vinyl Chloride (PVC) | Flexfoil® | 14.5 AWG | Drain Wire Rip Cord | Copper Bare | ||
Prysmian Group | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 304.8 m | 1000 ft | Blue | Solid | 2 | Multi-Conductor | 5.33 mm | 0.21 in | 0.381 mm | 0.015 in | Alarm Safety | 300 VDC | Foil | Plenum Poly-Vinyl Chloride (PVC) | 14.5 AWG | Drain Wire Rip Cord | Copper Bare | ||||
Prysmian Group | Poly-Vinyl Chloride (PVC) | 75 ░C | 0 °C | 762 m | 2500 ft | Red | Solid | 2 | Multi-Conductor | 5.33 mm | 0.21 in | 0.381 mm | 0.015 in | Alarm Safety | 300 VDC | Foil | Plenum Poly-Vinyl Chloride (PVC) | 14.5 AWG | Drain Wire Rip Cord | Copper Bare |
