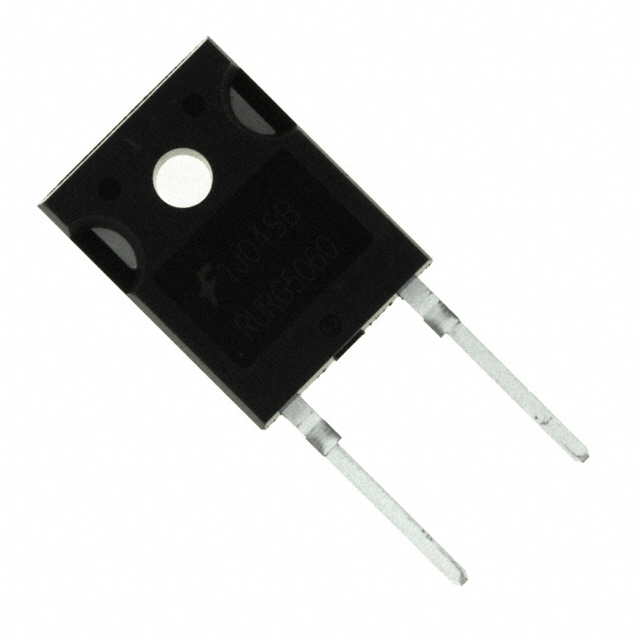

RURG5060_F085 Series

600V, 50A, 1.28V, TO-247 (2-lead)<BR>Ultrafast Diode

Catalog

600V, 50A, 1.28V, TO-247 (2-lead)<BR>Ultrafast Diode

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Package / Case	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Speed	Mounting Type	Qualification	Grade
ON Semiconductor RURG5060	1.6 V	175 ░C	-65 C	TO-247-2	250 µA	600 V	Avalanche	TO-247-2	75 ns	50 A	200 mA 500 ns	Through Hole
ON Semiconductor RURG5060-F085	1.6 V	175 ░C	-55 C	TO-247-2	250 µA	600 V	Avalanche	TO-247-2	90 ns	50 A	200 mA 500 ns	Through Hole	AEC-Q101	Automotive

Catalog

600V, 50A, 1.28V, TO-247 (2-lead)<BR>Ultrafast Diode

Key Features

• Ultrafast recovery Trr= 75ns (@IF= 50A)

• Max Forward Voltage, VF= 1.6V (@ TC= 25°C)

• 600V Reverse Voltage and High Reliability

• Avalanche Energy Rated

• RoHS compliant

Description

The RURG5060_F085 is an ultrafast diode with soft recovery characteristics (trr< 90ns). It has low forwardvoltage drop and is silicon nitride passivated ionimplanted epitaxial planar construction.This device is intended for use as a freewheeling/clamping diode and rectifier in a variety of switching powersupplies and other power switching applications. Its low stored charge and ultrafast recovery with soft recoverycharacteristic minimizes ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistors.
