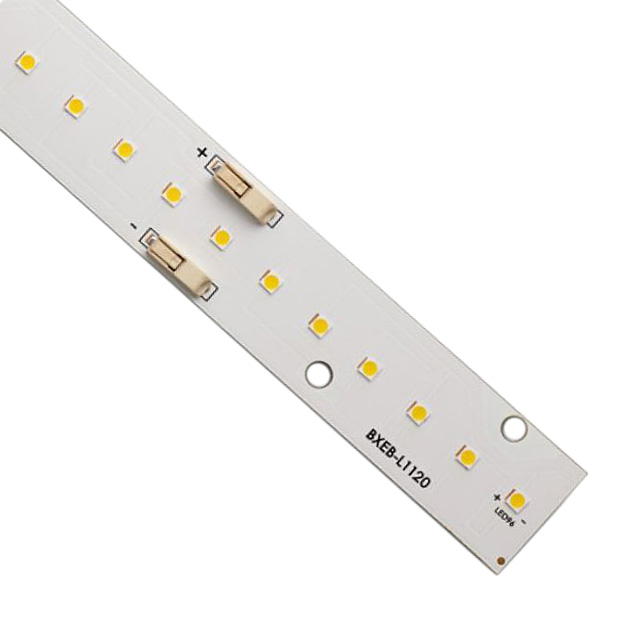

BXEB-L1120 Series

Manufacturer: BRIDGELUX

Catalog

LED MOD EB SER WH LNR STRP 3500K

Part	Voltage - Forward (Vf) (Typ)	Lens Type	Height [z]	Current - Max [Max]	Configuration	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	Temperature - Test	CCT (K)	CCT (K)	Type	Color	Viewing Angle	Features	Current - Test
BRIDGELUX BXEB-L1120Z-35E4000-C-A3	44.2 V	Flat	6.1 mm	1.4 A	Linear Light Strip	156 lm/W	1120 mm	24 mm	4820 lm	80	50 °C	3500 K	3-Step MacAdam Ellipse	LED Module	Warm White
BRIDGELUX BXEB-L1120Z-35E8000-C-D3	38.4 V	Flat	6.1 mm	2.8 A	Linear Light Strip	185 lm/W	1120 mm	24 mm	9920 lm	80	25 °C	3500 K	3-Step MacAdam Ellipse	LED Module	Warm White	120 °
BRIDGELUX BXEB-L1120Z-57E4000-C-A3	44.2 V	Flat	6.1 mm	1.4 A	Linear Light Strip	159 lm/W	1120 mm	24 mm	4920 lm	80	50 °C	5700 K	3-Step MacAdam Ellipse	LED Module	Cool White
BRIDGELUX BXEB-L1120Z-40E4000-C-B3	39 V	Flat	6.1 mm	1.4 A	Linear Light Strip	180 lm/W	1120 mm	24 mm	4920 lm	80	25 °C	4000 K	3-Step MacAdam Ellipse	LED Module	Neutral White	120 °	With Connector
BRIDGELUX BXEB-L1120Z-40E4000-C-A3	44.2 V	Flat	6.1 mm	1.4 A	Linear Light Strip	159 lm/W	1120 mm	24 mm	4920 lm	80	50 °C	4000 K	3-Step MacAdam Ellipse	LED Module	Neutral White
BRIDGELUX BXEB-L1120Z-30E4000-C-A3	44.2 V	Flat	6.1 mm	1.4 A	Linear Light Strip	156 lm/W	1120 mm	24 mm	4820 lm	80	50 °C	3000 K	3-Step MacAdam Ellipse	LED Module	Warm White
BRIDGELUX BXEB-L1120Z-50E4000-C-B3	39 V	Flat	6.1 mm	1.4 A	Linear Light Strip	180 lm/W	1120 mm	24 mm	4920 lm	80	25 °C	5000 K	3-Step MacAdam Ellipse	LED Module	Cool White	120 °
BRIDGELUX BXEB-L1120Z-35E4000-C-B3	39 V	Flat	6.1 mm	1.4 A	Linear Light Strip	175 lm/W	1120 mm	24 mm	4780 lm	80	25 °C	3500 K	3-Step MacAdam Ellipse	LED Module	Warm White	120 °
BRIDGELUX BXEB-L1120Z-50E4000-C-A3	44.2 V	Flat	6.1 mm	1.4 A	Linear Light Strip	159 lm/W	1120 mm	24 mm	4920 lm	80	50 °C	5000 K	3-Step MacAdam Ellipse	LED Module	Cool White
BRIDGELUX BXEB-L1120Z-50S4000-C-C3	40.6 V	Flat	6.1 mm	1.92 A	Linear Light Strip	138 lm/W	1120 mm	24 mm	5380 lm	98	25 °C	5000 K	3-Step MacAdam Ellipse	LED Module	Cool White	120 °		960 mA
