HA16RA Series

Catalog

CONN RCPT MALE 3P SILV SLDR CUP

Part	Orientation	Voltage Rating	Connector Type	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Mating	Insert Material [custom]	Insert Material [custom]	Features	Shell Material	Current Rating (Amps)	Primary Material	Shielding	Contact Material	Color	Material Flammability Rating	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Mounting Feature	Shell Size - Insert	Cable Opening	Cable Opening	Number of Positions
Hirose Electric Co Ltd HA16RA-3P(76)	Keyed	130 VAC 180 VDC	Receptacle Male Pins	Industrial	78.7 µin	2 µm	Push-Pull	Silver	Nylon	Polyamide (PA)	Ground	Aluminum Alloy	15 A	Metal	Shielded	Brass	Silver	UL94 V-0	Nickel	-25 °C	70 °C	Panel Mount	Flange	16	19 mm	0.748 "
Hirose Electric Co Ltd HA16RA-4P(77)	Keyed	130 VAC 180 VDC	Receptacle Male Pins	Industrial	78.7 µin	2 µm	Push-Pull	Silver	Nylon	Polyamide (PA)	Ground	Aluminum Alloy	5 A	Metal	Shielded	Brass	Silver	UL94 V-0	Nickel	-25 °C	70 °C	Panel Mount	Flange	16	19 mm	0.748 "	4

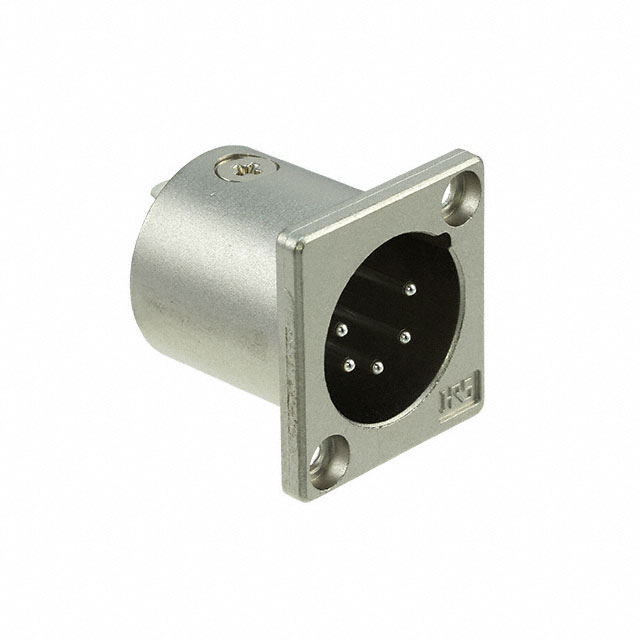

Hirose Electric Co Ltd HA16RA-5P(76)	Keyed	130 VAC 180 VDC	Receptacle Male Pins	Industrial	78.7 µin	2 µm	Push-Pull	Silver	Nylon	Polyamide (PA)	Ground	Aluminum Alloy	4 A	Metal	Shielded	Brass	Silver	UL94 V-0	Nickel	-25 °C	70 °C	Panel Mount	Flange	16	19 mm	0.748 "	5

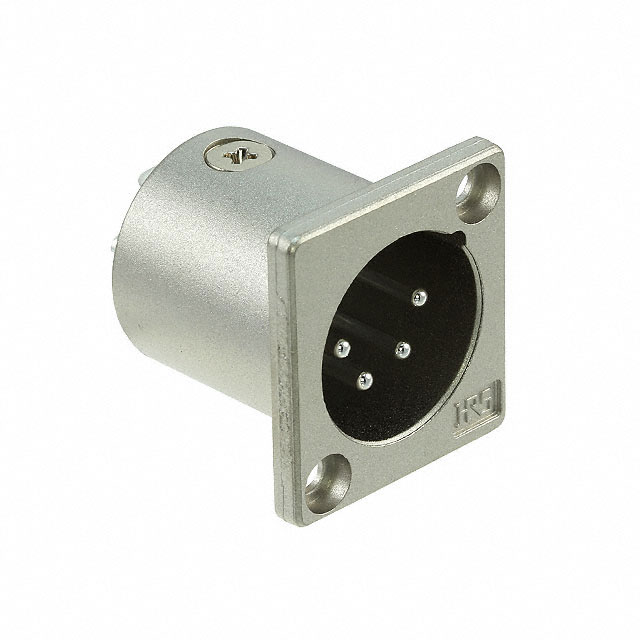

Hirose Electric Co Ltd HA16RA-4P(76)	Keyed	130 VAC 180 VDC	Receptacle Male Pins	Industrial	78.7 µin	2 µm	Push-Pull	Silver	Nylon	Polyamide (PA)	Ground	Aluminum Alloy	5 A	Metal	Shielded	Brass	Silver	UL94 V-0	Nickel	-25 °C	70 °C	Panel Mount	Flange	16	19 mm	0.748 "	4
