BXRE-40 Series

Manufacturer: BRIDGELUX

Catalog

Catalog

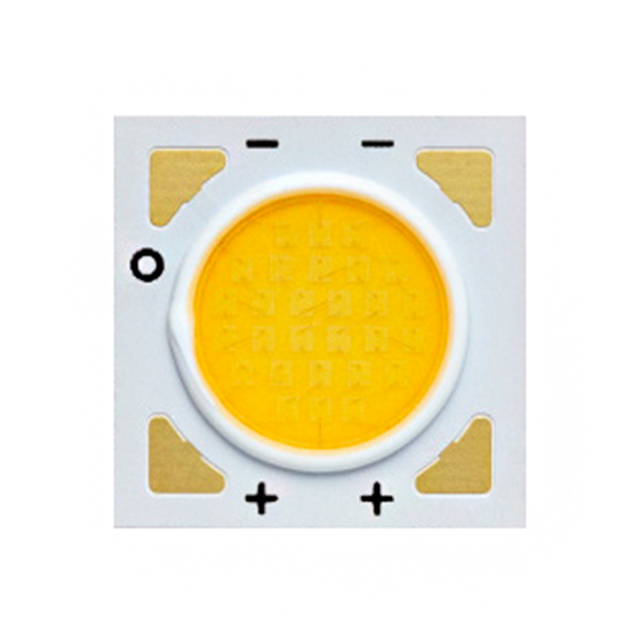

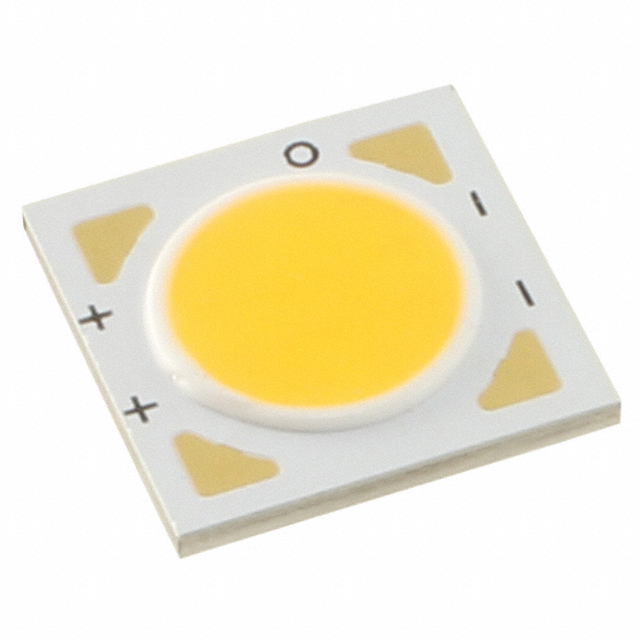

LED COB V8 ARR NEUT WHT SQ 4000K

...

Part	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Type	Lens Type	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Temperature - Test	CRI (Color Rendering Index)	Configuration	Color	Light Emitting Surface (LES) [diameter]	Height [z]	Luminous Flux @ Current/Temperature	Viewing Angle	CCT (K)	CCT (K)	Lumens/Watt @ Current - Test
BRIDGELUX BXRE-40E0800-A-23	34.6 V	350 mA	Chip On Board (COB)	Flat	175 mA	12.5 mm	12.5 mm	85 °C	80	Square	Neutral White	8.1 mm	1.7 mm	749 lm	120 °	4000 K	3-Step MacAdam Ellipse
BRIDGELUX BXRE-40G0800-D-72	16.7 V	700 mA	Chip On Board (COB)	Flat	350 mA	12.5 mm	12.5 mm	85 °C	90	Square	Neutral White	8.1 mm	1.7 mm		120 °	4000 K	2-Step MacAdam Ellipse	125 lm/W
BRIDGELUX BXRE-40E1000-B-72	33.8 V	540 mA	Chip On Board (COB)	Flat	270 mA	13.5 mm	13.5 mm	85 °C	80	Square	Neutral White	10.2 mm	1.7 mm	1315 lm	120 °	4000 K	2-Step MacAdam Ellipse	143 lm/W
BRIDGELUX BXRE-40G1000-B-73	34 V	540 mA	Chip On Board (COB)	Flat	270 mA	13.5 mm	13.5 mm	85 °C	90	Square	Neutral White	10.2 mm	1.7 mm	1125 lm		4000 K	3-Step MacAdam Ellipse	122 lm/W
BRIDGELUX BXRE-40E0800-A-03	35.6 V	350 mA	Chip On Board (COB)	Flat	175 mA	12.5 mm	12.5 mm	25 °C	80	Square	Neutral White	8.1 mm	1.7 mm	770 lm	120 °	4000 K	3-Step MacAdam Ellipse
BRIDGELUX BXRE-40E6500-C-72	50.7 V	2.88 A	Chip On Board (COB)	Flat	1.44 A	28 mm	28 mm	85 °C	80	Square	Neutral White	22.6 mm	1.7 mm	10885 lm 11176 lm	120 °	4000 K	2-Step MacAdam Ellipse	149 lm/W 153 lm/W
BRIDGELUX BXRE-40E2000-C-73	33.9 V	1.26 A	Chip On Board (COB)	Flat	630 mA	19 mm	19 mm	85 °C	80	Square	Neutral White	14 mm	1.7 mm	3170 lm 3267 lm	120 °	4000 K	3-Step MacAdam Ellipse	148 lm/W 153 lm/W
BRIDGELUX BXRE-40E1000-B-73	34 V	540 mA	Chip On Board (COB)	Flat	270 mA	13.5 mm	13.5 mm	85 °C	80	Square	Neutral White	10.2 mm	1.7 mm	1315 lm		4000 K	3-Step MacAdam Ellipse	143 lm/W
BRIDGELUX BXRE-40G3001-D-23	36 V	1.4 A	Chip On Board (COB)	Flat		21 mm	21 mm	25 °C	90	Square	Neutral White	15.2 mm	1.7 mm	2822 lm	120 °	4000 K	3-Step MacAdam Ellipse	112 lm/W

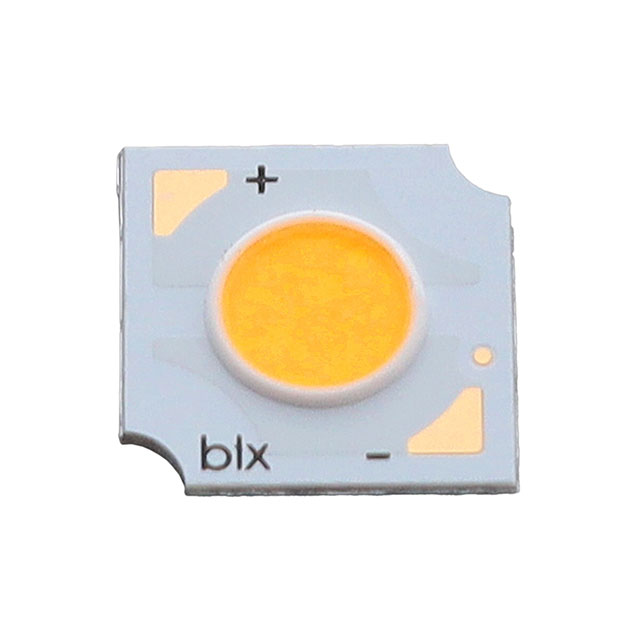

BRIDGELUX BXRE-40E0400-C-83	33.7 V	250 mA	Chip On Board (COB)	Flat	80 mA	12.5 mm	12.5 mm	25 °C	80	Square	Neutral White	6.3 mm	1.65 mm	478 lm	120 °	4000 K	3-Step MacAdam Ellipse	177 lm/W
