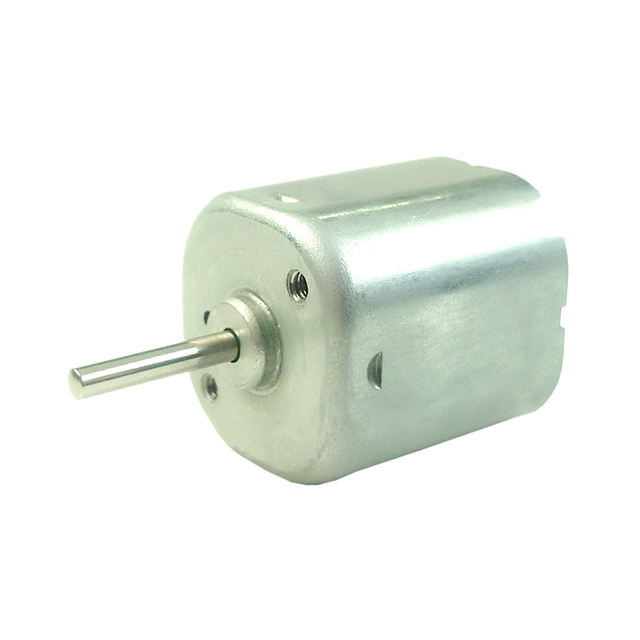

SE18J1 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
STANDARD MOTOR 4756 RPM 12V
| Part | Weight | Weight | Type | Motor Type | Termination Style | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension | RPM | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Voltage - Rated | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 0.051 lb | 23.13 g | DC Motor | Brushed | Solder Tab | 0.717 in | 0.717 in | 18.2 mm | 18.2 mm | 4756 RPM | 0.504 in | 12.8 mm | 0.079 in | 2 mm | 0.566 oz-in | 4 mNm | 14 mm | 0.551 in | 12 VDC | Standard |
