5910PL Series

Catalog

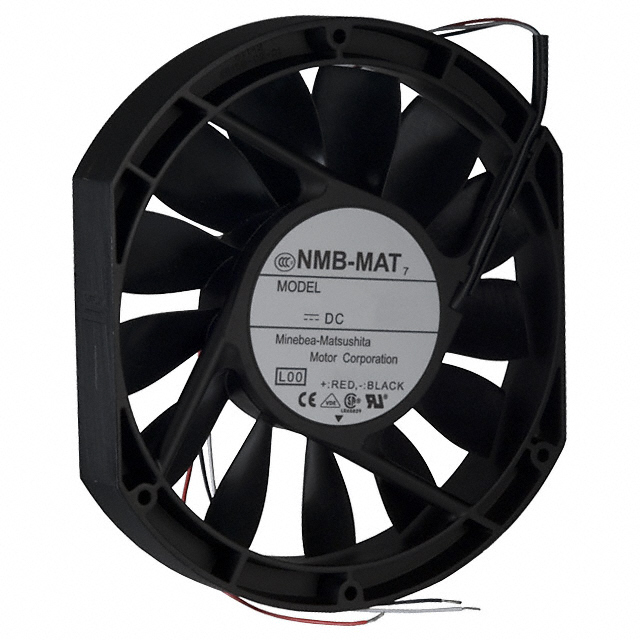

FAN AXIAL 172X25.4MM 12VDC WIRE

Part	Material - Frame	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Voltage - Rated	Static Pressure	Static Pressure	Width [y]	RPM	Air Flow	Air Flow	Termination	Noise	Power (Watts)	Approval Agency	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Weight [custom]	Weight [custom]	Bearing Type	Fan Type	Static Pressure
NMB TECHNOLOGIES 5910PL-04W-B59-L50	Aluminum	Plastic	18 VDC	6 VDC	1.85 A	12 VDC	144.5 Pa	0.58 in H2O	25.4 mm	3500 RPM	225.9 CFM	6.33 m³/min	3 Wire Leads	61.5 dB(A)	22.2 W	CE CSA UL VDE	Rectangular/Rounded	150 mm	172 mm	Speed Sensor (Tach)	70 °C	-10 °C	1.1 lbs	500 g	Ball	Tubeaxial
NMB TECHNOLOGIES 5910PL-07W-B50-L00	Aluminum	Plastic	60 V	25 VDC	0.51 A	48 VDC	163.7 Pa	0.657 in H2O	25.4 mm	3500 RPM	250 CFM	7 mł/min	2 Wire Leads	62.5 dB	24.5 W	CE CSA UL VDE	Rectangular/Rounded	150 mm	172 mm		70 °C	-10 °C	1.1 lbs	500 g	Ball	Tubeaxial
NMB TECHNOLOGIES 5910PL-05W-B60-L00	Aluminum	Plastic	30 V	12 VDC	1.16 A	24 VDC	187 Pa	0.751 in H2O	25.4 mm	3750 RPM	270 CFM	7.56 mł/min	2 Wire Leads	62.9 dB	27.8 W	CE CSA UL VDE	Rectangular/Rounded	150 mm	172 mm		70 °C	-10 °C	1.1 lbs	500 g	Ball	Tubeaxial
NMB TECHNOLOGIES 5910PL-05W-B20-L00	Aluminum	Plastic	30 V	12 VDC	580 mA	24 VDC	92.2 Pa	0.37 in H2O	25.4 mm	2850 RPM	190 CFM	5.32 m³/min	2 Wire Leads	57 dB	13.9 W	CE CSA UL VDE	Rectangular/Rounded	150 mm	172 mm		70 °C	-10 °C	1.1 lbs	500 g	Ball	Tubeaxial
NMB TECHNOLOGIES 5910PL-07W-B19-L50	Aluminum	Plastic	60 V	25 VDC	0.22 A	48 VDC	0.305 in H2O		25.4 mm	2500 RPM	170 CFM	4.76 m³/min	3 Wire Leads	54.1 dB	10.6 W	CE CSA UL VDE	Rectangular/Rounded	150 mm	172 mm	Speed Sensor (Tach)	70 °C	-10 °C	1.1 lbs	500 g	Ball	Tubeaxial	75.9 Pa
NMB TECHNOLOGIES 5910PL-05W-B40-L00	Aluminum	Plastic	30 V	12 VDC	0.86 A	24 VDC	141 Pa	0.566 in H2O	25.4 mm	3350 RPM	230 CFM	6.44 m³/min	2 Wire Leads	61.5 dB(A)	20.6 W	CE CSA UL VDE	Rectangular/Rounded	150 mm	172 mm		70 °C	-10 °C	1.1 lbs	500 g	Ball	Tubeaxial
NMB TECHNOLOGIES 5910PL-07W-B30-L00	Aluminum	Plastic	60 V	25 VDC	0.37 A	48 VDC	115.2 Pa	0.462 in H2O	25.4 mm	3150 RPM	210 CFM	5.88 m³/min	2 Wire Leads	58.9 dB(A)	17.8 W	CE CSA UL VDE	Rectangular/Rounded	150 mm	172 mm		70 °C	-10 °C	1.1 lbs	500 g	Ball	Tubeaxial
NMB TECHNOLOGIES 5910PL-04W-B30-L00	Aluminum	Plastic	18 VDC	6 VDC	1.52 A	12 VDC	115.2 Pa	0.462 in H2O	25.4 mm	3150 RPM	210 CFM	5.88 m³/min	2 Wire Leads	58.9 dB(A)	18.2 W	CE CSA UL VDE	Rectangular/Rounded	150 mm	172 mm		70 °C	-10 °C	1.1 lbs	500 g	Ball	Tubeaxial
NMB TECHNOLOGIES 5910PL-05W-B59-L50	Aluminum	Plastic	30 V	12 VDC		24 VDC	163.7 Pa	0.657 in H2O	25.4 mm	3500 RPM	250 CFM	7 mł/min	3 Wire Leads	62.5 dB	24 W	CE CSA UL VDE	Rectangular/Rounded	150 mm	172 mm	Speed Sensor (Tach)	70 °C	-10 °C	1.1 lbs	500 g	Ball	Tubeaxial

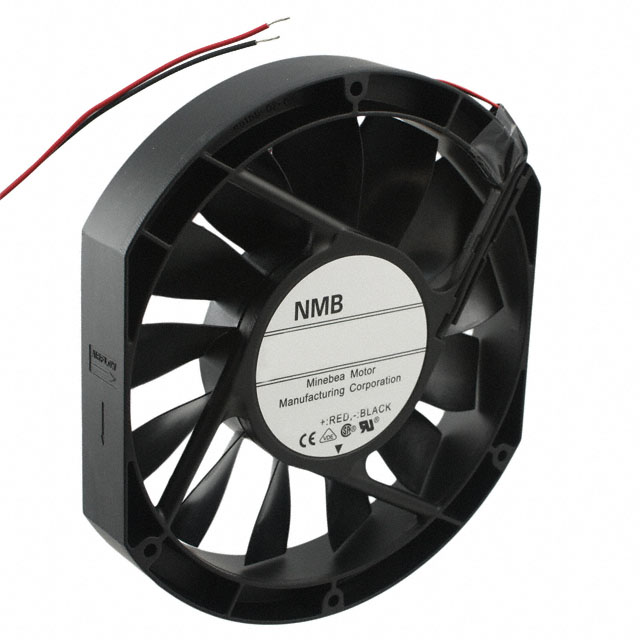

NMB TECHNOLOGIES 5910PL-05W-B50-L00	Aluminum	Plastic	30 V	12 VDC		24 VDC	163.7 Pa	0.657 in H2O	25.4 mm	3500 RPM	250 CFM	7 mł/min	2 Wire Leads	62.5 dB	24 W	CE CSA UL VDE	Rectangular/Rounded	150 mm	172 mm		70 °C	-10 °C	1.1 lbs	500 g	Ball	Tubeaxial
