HMC8342 Series
GaAs MMIC ×2 Active Frequency Multiplier, 22 GHz to 42 GHz Output
Manufacturer: Analog Devices
Catalog
GaAs MMIC ×2 Active Frequency Multiplier, 22 GHz to 42 GHz Output
Key Features
• High output power: 15 dBm (typical) at RFIN = 16 GHz
• Low input power drive: 5 dBm (typical)
• Fundamental RF input isolation at RF output: −23 dBc at RFOUT = 30 GHz

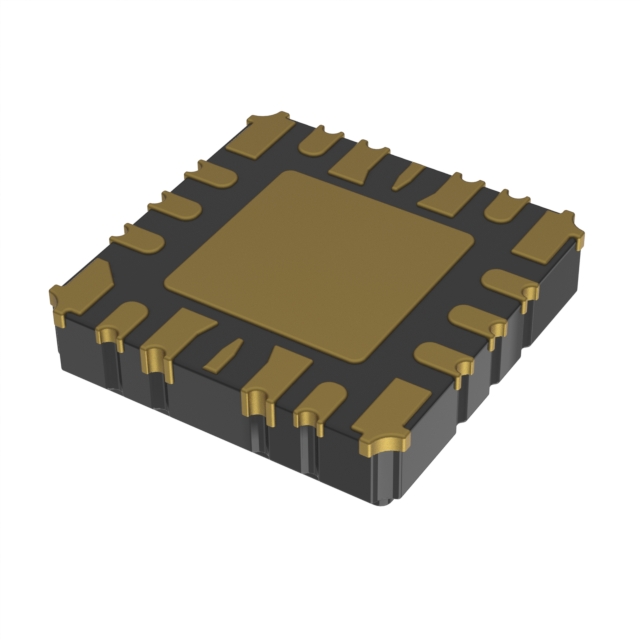

• 16-terminal, 6 mm × 6 mm LCC_HS package, 36 mm2
Description
AI
The HMC8342 is a gallium arsenide (GaAs), monolithic microware integrated circuit (MMIC), ×2 active broadband frequency multiplier. When driven by a 5 dBm signal, the multiplier provides 15 dBm typical output power. The output frequency range is from 22 GHz to 42 GHz, and the input fundamental and third harmonic isolations measured at the output are −23 dBc and −20 dBc, respectively, at an output frequency of 30 GHz. The HMC8342 is ideal for use in LO multiplier chains for point to point and VSAT radios, resulting in a reduced parts count vs. traditional design approaches.APPLICATIONSClock generationPoint to point and very small aperture terminal (VSAT) radiosTest instrumentationMilitary and space
