RM15WTLP Series

Catalog

CONNECTOR

Part	Shell Size - Insert [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Shell Finish	Number of Positions	Mounting Type	Shell Material	Shielding	Insert Material	Fastening Type	Ingress Protection	Voltage Rating	Primary Material	Contact Material	Backshell Material, Plating	Features	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Color	Orientation	Material Flammability Rating
Hirose Electric Co Ltd RM15WTLP-4P(31)	15	85 °C	-25 °C	Silver	Nickel	4	Free Hanging (In-Line) Right Angle	Brass	Unshielded	Diallyl Phthalate (DAP)	Threaded	IP67/IP68	500 VAC 700 VDC	Metal	Copper Alloy	Brass Nickel	Backshell Coupling Nut	Plug Male Pins	5 µin	0.127 µm	5 A	Silver	Keyed	UL94 V-0
Hirose Electric Co Ltd RM15WTLP-12S(71)	15	85 °C	-25 °C	Silver		12	Free Hanging (In-Line) Right Angle				Threaded	IP67/IP68	350 VAC 490 VDC				Backshell Coupling Nut	Plug Female Sockets			5 A		Keyed	UL94 V-0
Hirose Electric Co Ltd RM15WTLP-12S(31)	15	85 °C	-25 °C	Silver	Nickel	12	Free Hanging (In-Line) Right Angle	Brass	Unshielded	Diallyl Phthalate (DAP)	Threaded	IP67/IP68	350 VAC 490 VDC	Metal	Copper Alloy	Brass Nickel	Backshell Coupling Nut	Plug Female Sockets	5 µin	0.127 µm	5 A	Silver	Keyed	UL94 V-0
Hirose Electric Co Ltd RM15WTLP-4S(32)	15	85 °C	-25 °C	Silver	Nickel	4	Free Hanging (In-Line) Right Angle	Brass	Unshielded	Polyphenylene Sulfide (PPS)	Threaded	IP67/IP68	500 VAC 700 VDC	Metal	Copper Alloy	Brass Nickel	Backshell Coupling Nut	Plug Female Sockets	5 µin	0.127 µm	5 A	Silver	Keyed	UL94 V-0
Hirose Electric Co Ltd RM15WTLP-4S(82)

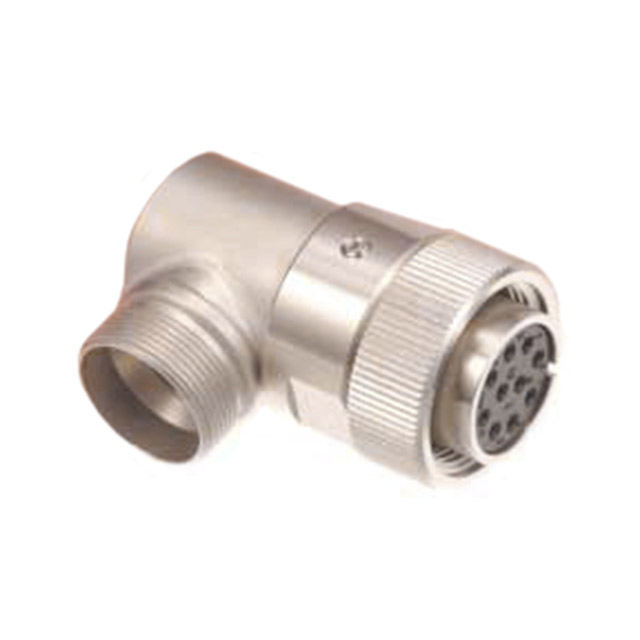

Hirose Electric Co Ltd RM15WTLP-10S(71)	15	85 °C	-25 °C	Silver	Nickel	10	Free Hanging (In-Line) Right Angle	Brass		Diallyl Phthalate (DAP)	Threaded	IP67/IP68	350 VAC 490 VDC	Metal	Copper Alloy	Brass Nickel	Backshell Coupling Nut	Plug Female Sockets	196.9 µin	5 µm	5 A	Silver	Keyed	UL94 V-0
