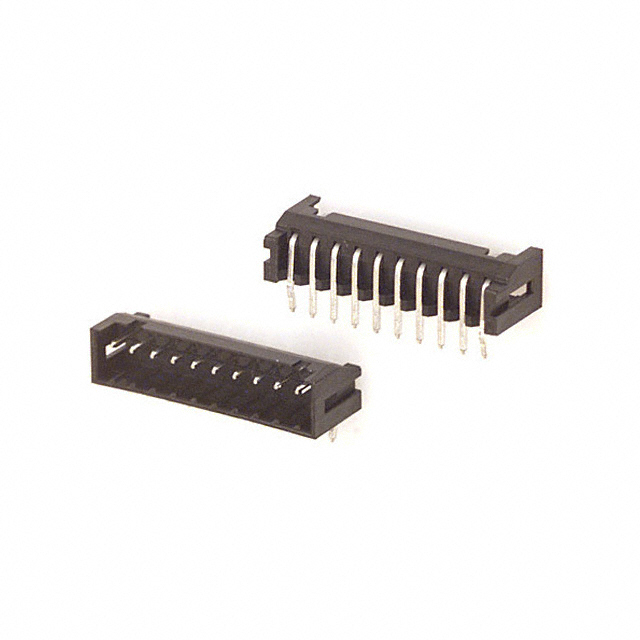

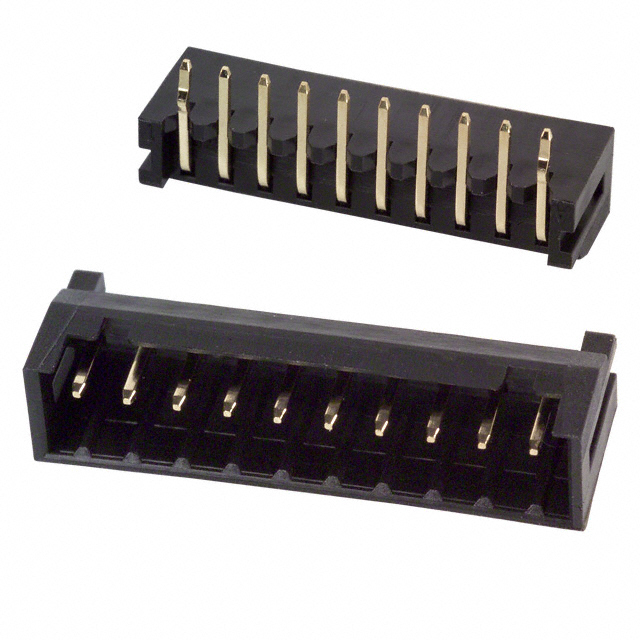

DF3-10P Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN SHROUDED HEADER HDR 10 POS 2MM SOLDER RA THRU-HOLE BAG
| Part | Contact Shape | Fastening Type | Material Flammability Rating | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Insulation Material | Mounting Type | Contact Type | Insulation Height | Insulation Height | Number of Rows | Number of Positions | Contact Length - Mating | Contact Length - Mating | Insulation Color | Number of Positions Loaded | Connector Type | Style | Contact Material | Features | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Square | Push-Pull | UL94 V-0 | Press-Fit Solder | 0.114 in | 2.9 mm | -55 C | 105 ░C | 8 µin | 0.203 µm | Shrouded - 4 Wall | 3 A | 0.079 " | 2 mm | Gold | Nylon Polyamide (PA) | Right Angle Through Hole | Male Pin | 0.197 " | 5 mm | 1 | 10 | 0.122 in | 3.1 mm | Black | All | Header | Board to Board Cable | Brass | ||
 Hirose Electric Co Ltd | Circular | Push-Pull | UL94 V-0 | Solder | -55 C | 105 ░C | Shrouded - 4 Wall | 3 A | 0.079 " | 2 mm | Nylon Polyamide (PA) | Surface Mount | Male Pin | 0.232 in | 5.9 mm | 1 | 10 | Beige | All | Header | Board to Board Cable | Brass | Board Guide | Tin | |||||||
 Hirose Electric Co Ltd | Square | Push-Pull | UL94 V-0 | Press-Fit Solder | 0.114 in | 2.9 mm | -55 C | 105 ░C | Shrouded - 4 Wall | 3 A | 0.079 " | 2 mm | Nylon Polyamide (PA) | Right Angle Through Hole | Male Pin | 0.197 " | 5 mm | 1 | 10 | 0.122 in | 3.1 mm | Black | All | Header | Board to Board Cable | Brass | Tin |
