PIC16LC770 Series

Catalog

IC MCU 8BIT 3.5KB OTP 20DIP

Part	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size	Core Size	Program Memory Type	Supplier Device Package	Core Processor	Package / Case	Package / Case	Package / Case	Mounting Type	Speed	Data Converters	Program Memory Size	Connectivity	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Package / Case [y]	Package / Case [y]
Microchip Technology PIC16LC770/P	15	70 °C	0 °C	256 x 8	8-Bit	OTP	20-PDIP	PIC	20-DIP	7.62 mm	0.3 in	Through Hole	20 MHz	6 channels 12 b	3.5 KB	I2C SPI	Internal	2.5 V	5.5 V
Microchip Technology PIC16LC770/SS	15	70 °C	0 °C	256 x 8	8-Bit	OTP	20-SSOP	PIC	20-SSOP			Surface Mount	20 MHz	6 channels 12 b	3.5 KB	I2C SPI	Internal	2.5 V	5.5 V
Microchip Technology PIC16LC770T/SS	15	70 °C	0 °C	256 x 8	8-Bit	OTP	20-SSOP	PIC	20-SSOP			Surface Mount	20 MHz	6 channels 12 b	3.5 KB	I2C SPI	Internal	2.5 V	5.5 V
Microchip Technology PIC16C770T/SS	15	70 °C	0 °C	256 x 8	8-Bit	OTP	20-SSOP	PIC	20-SSOP			Surface Mount	20 MHz	6 channels 12 b	3.5 KB	I2C SPI	Internal	4 V	5.5 V
Microchip Technology PIC16C770-I/SS	15	85 °C	-40 °C	256 x 8	8-Bit	OTP	20-SSOP	PIC	20-SSOP			Surface Mount	20 MHz	6 channels 12 b	3.5 KB	I2C SPI	Internal	4 V	5.5 V
Microchip Technology PIC16C770/P	15	70 °C	0 °C	256 x 8	8-Bit	OTP	20-PDIP	PIC	20-DIP	7.62 mm	0.3 in	Through Hole	20 MHz	6 channels 12 b	3.5 KB	I2C SPI	Internal	4 V	5.5 V
Microchip Technology PIC16LC770-I/P	15	85 °C	-40 °C	256 x 8	8-Bit	OTP	20-PDIP	PIC	20-DIP	7.62 mm	0.3 in	Through Hole	20 MHz	6 channels 12 b	3.5 KB	I2C SPI	Internal	2.5 V	5.5 V
Microchip Technology PIC16LC770-I/SS	15	85 °C	-40 °C	256 x 8	8-Bit	OTP	20-SSOP	PIC	20-SSOP			Surface Mount	20 MHz	6 channels 12 b	3.5 KB	I2C SPI	Internal	2.5 V	5.5 V
Microchip Technology PIC16C770/SO	15	70 °C	0 °C	256 x 8	8-Bit	OTP	20-SOIC	PIC	20-SOIC			Surface Mount	20 MHz	6 channels 12 b	3.5 KB	I2C SPI	Internal	4 V	5.5 V	0.295 in	7.5 mm

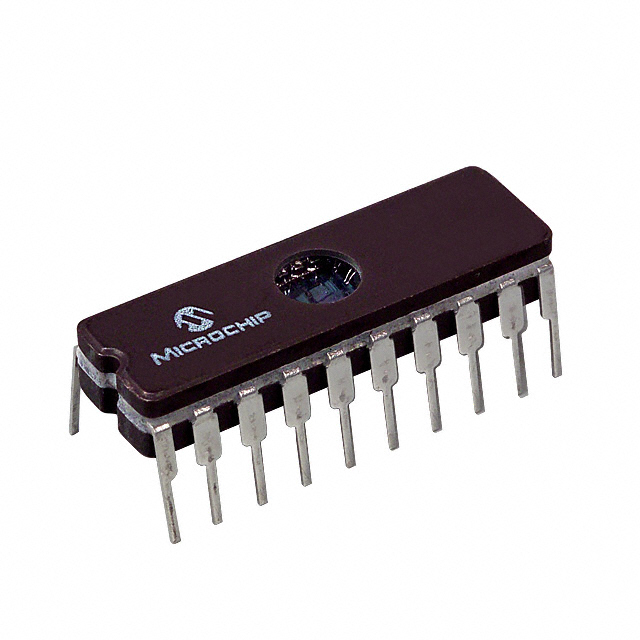

Microchip Technology PIC16C770/JW	15	70 °C	0 °C	256 x 8	8-Bit	EPROM UV	20-CDIP	PIC	20-CDIP Window	7.62 mm	0.3 in	Through Hole	20 MHz	6 channels 12 b	3.5 KB	I2C SPI	Internal	4 V	5.5 V

Catalog

Key Features

• * Programmable BOR, Programmable LVD, on-chip bandgap voltage reference, Master mode I²C™, Half-Bridge & Full-Bridge PWM w/ deadband control, dual speed INTRC oscillator (4 MHz/37 kHz)

Description

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS OTP-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 20-pin package and is upwards compatible with the PIC16C5X and PIC12CXXX devices. The PIC16C770 features 6 channels of 12-bit Analog-to-Digital (A/D) converter giving designers the ability to discriminate smaller signal changes and eliminate the need for external circuitry for high precision measurement of analog signals. With 2 additional timers and an enhanced capture/compare/PWM function that make it ideal for the most sophisticated applications requiring higher levels of A/D in automotive, industrial, appliances and consumer applications.
