TRI 6 Series

Catalog

DC DC CONVERTER +/-12V 6W

Part	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Efficiency	Package / Case	Applications	Number of Outputs	Mounting Type	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Approval Agency	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power TRI 6-1222	Isolated Module	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	87 %	24-DIP Module 6 Leads	ITE (Commercial)	2	Through Hole	6 W	9 V	12 V	9 kV	-40 C	95 °C	-12 V	CB cURus	18 V	250 mA

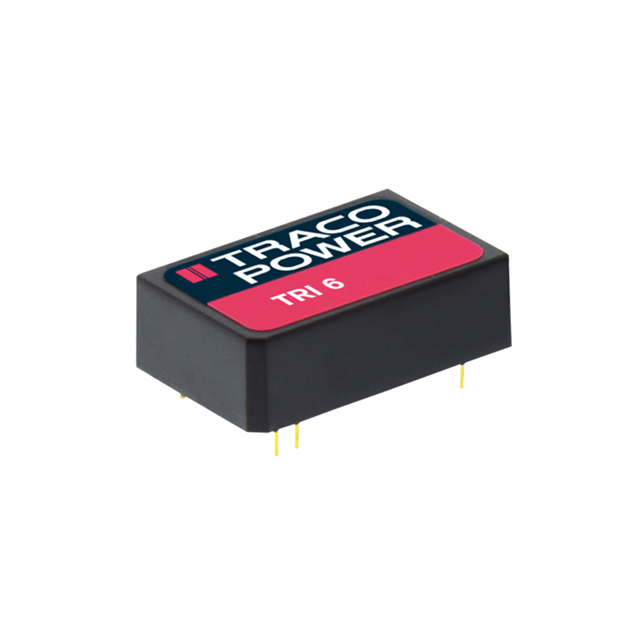

Traco Power TRI 6-2422	Isolated Module	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	86 %	24-DIP Module 6 Leads	ITE (Commercial)	2	Through Hole	6 W	18 V	12 V	9 kV	-40 C	95 °C	-12 V	CB cURus	36 V	250 mA
Traco Power TRI 6-4813	Isolated Module	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	89 %	24-DIP Module 5 Leads	ITE (Commercial)	1	Through Hole	6 W	36 V	15 V	9 kV	-40 C	95 °C		CB cURus	75 V		400 mA
Traco Power TRI 6-2412	Isolated Module	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	86 %	24-DIP Module 5 Leads	ITE (Commercial)	1	Through Hole	6 W	18 V	12 V	9 kV	-40 C	95 °C		CB cURus	36 V		500 mA
Traco Power TRI 6-2423	Isolated Module	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	87 %	24-DIP Module 6 Leads	ITE (Commercial)	2	Through Hole	6 W	18 V	15 V	9 kV	-40 C	95 °C	-15 V	CB cURus	36 V
Traco Power TRI 6-4822	Isolated Module	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	87 %	24-DIP Module 6 Leads	ITE (Commercial)	2	Through Hole	6 W	36 V	12 V	9 kV	-40 C	95 °C	-12 V	CB cURus	75 V	250 mA
Traco Power TRI 6-4823	Isolated Module	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	88 %	24-DIP Module 6 Leads	ITE (Commercial)	2	Through Hole	6 W	36 V	15 V	9 kV	-40 C	95 °C	-15 V	CB cURus	75 V
Traco Power TRI 6-1223	Isolated Module	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	87 %	24-DIP Module 6 Leads	ITE (Commercial)	2	Through Hole	6 W	9 V	15 V	9 kV	-40 C	95 °C	-15 V	CB cURus	18 V
