BXRA-27 Series

Manufacturer: BRIDGELUX

Catalog

LED COB RS WARM WHT RECT 2700K

Part	Lens Type	Temperature - Test	Viewing Angle	Luminous Flux @ Current/Temperature	Color	Lumens/Watt @ Current - Test	CCT (K)	CCT (K)	Configuration	Size / Dimension [z]	Size / Dimension [y]	Type	Height [z]	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Current - Test	CRI (Color Rendering Index)	Size / Dimension [x]	Light Emitting Surface (LES) [diameter]
BRIDGELUX BXRA-27H4000-H-03	Flat	85 °C	120 °	2795 lm	Warm White	57 lm/W	2700 K	3-Step MacAdam Ellipse	Rectangle	45.3 mm	49.5 mm	Chip On Board (COB)	2.6 mm	3 A	23.5 V	2.1 A	97

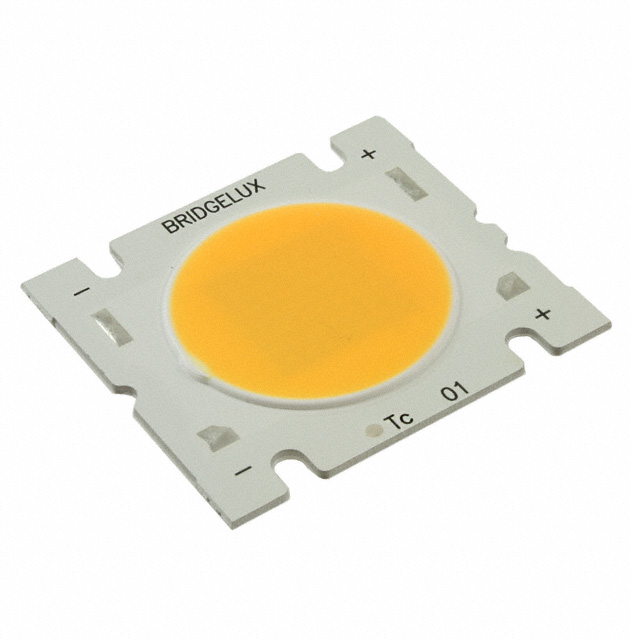

BRIDGELUX BXRA-27G4000-H-00	Domed	25 °C	120 °	3950 lm	Warm White	80 lm/W	2700 K		Square		2 in	Chip On Board (COB)	3 mm	3 A	23.5 V	2.1 A	90	45.6 mm
BRIDGELUX BXRA-27E0740-A-03	Domed	25 °C	120 °	810 lm	Warm White	82 lm/W	2700 K	3-Step MacAdam Ellipse	Starboard		19.9 mm	Chip On Board (COB)	3 mm	500 mA	28.1 V	350 mA	80	19.9 mm	10.9 mm

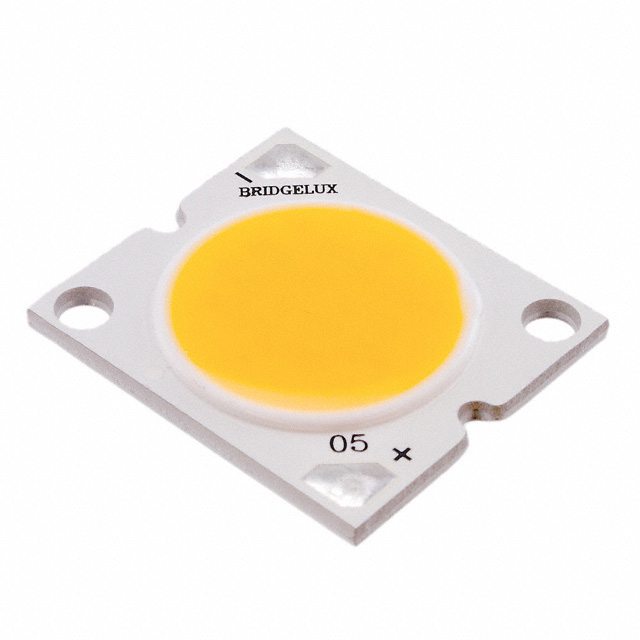

BRIDGELUX BXRA-27E0800-B-00	Domed	25 °C	120 °	950 lm	Warm White	92 lm/W	2700 K		Rectangle		25.8 mm	Chip On Board (COB)	3 mm	1 A	20.7 V	500 mA	80	22.8 mm
BRIDGELUX BXRA-27G1200-B-00	Domed	25 °C	120 °	1190 lm	Warm White	80 lm/W	2700 K		Rectangle		25.8 mm	Chip On Board (COB)	3 mm	750 mA		500 mA	90	22.8 mm
BRIDGELUX BXRA-27G2000-B-03	Domed	25 °C	120 °	1975 lm	Warm White	76 lm/W	2700 K	3-Step MacAdam Ellipse	Rectangle		25.8 mm	Chip On Board (COB)	3 mm	1 A	37 V		90	22.8 mm
BRIDGELUX BXRA-27E0540-A-03	Domed	25 °C	120 °	560 lm	Warm White	85 lm/W	2700 K	3-Step MacAdam Ellipse	Starboard		19.9 mm	Chip On Board (COB)	3 mm	500 mA	18.8 V	350 mA	80	19.9 mm	10.9 mm
BRIDGELUX BXRA-27G0800-B-03	Domed	25 °C	120 °	810 lm	Warm White	78 lm/W	2700 K	3-Step MacAdam Ellipse	Rectangle		25.8 mm	Chip On Board (COB)	3 mm	750 mA	20.7 V	500 mA	90	22.8 mm
BRIDGELUX BXRA-27E4000-H-00	Domed	25 °C	120 °	4640 lm	Warm White	94 lm/W	2700 K		Square		2 in	Chip On Board (COB)	3 mm	3 A	23.5 V	2.1 A	80	45.6 mm
BRIDGELUX BXRA-27E1200-B-03	Domed	25 °C	120 °	1400 lm	Warm White	95 lm/W	2700 K	3-Step MacAdam Ellipse	Rectangle		25.8 mm	Chip On Board (COB)	3 mm	1 A		500 mA	80	22.8 mm
