A79038 Series
Manufacturer: Omnetics
Beta
⌘K

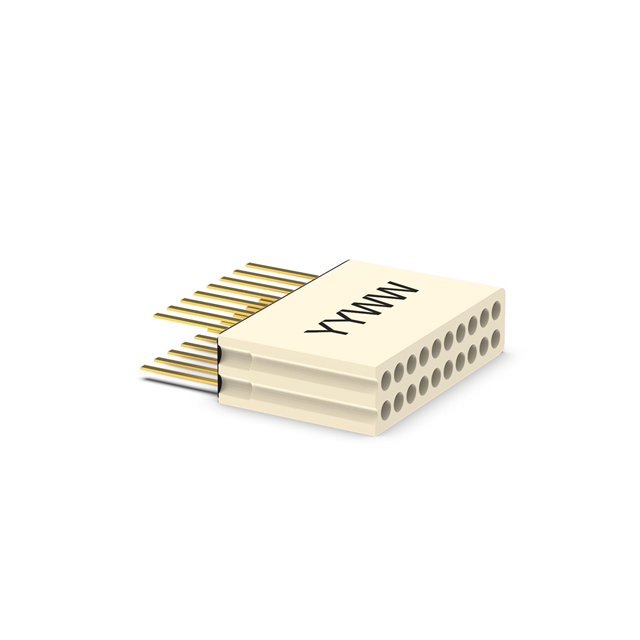

18 POSITION DUAL ROW MALE NANO-M
| Part | Insulation Height | Insulation Height | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Number of Positions | Number of Positions Loaded | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Style | Connector Type | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Row Spacing - Mating | Row Spacing - Mating | Features | Number of Rows [custom] | Contact Type | Shrouding | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Shape | Mounting Type | Fastening Type | Termination | Insulation Color | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | 4.4 mm | 0.173 in | Tin-Lead | 0.64 mm | 0.025 in | 18 | All | 50 µin | 1.27 µm | Board to Cable/Wire | Header | Gold | 0.1 in | 2.54 mm | 0.76 mm | 0.03 in | Guide Pin | 2 | Male Pin | Shrouded - 4 Wall | Thermoplastic | -55 C | 125 °C | 1 A | Circular | Through Hole | Push-Pull | Solder | Natural | Beryllium Copper |
