HIF4A Series

Catalog

CONN HEADER R/A 24POS 3.18MM

Part	Contact Shape	Number of Positions	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Material	Connector Type	Current Rating (Amps)	Mounting Type	Material Flammability Rating	Insulation Material	Insulation Color	Style	Voltage Rating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Termination	Number of Rows [custom]	Contact Finish - Mating	Wire Gauge	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Row Spacing	Row Spacing	Cable Termination	Pitch	Pitch	Color	Contact Finish	For Use With/Related Products	Accessory Type
Hirose Electric Co Ltd HIF4A-24P-3.18DS(01)	Square	24	Latch Lock/Eject Hooks	6.35 mm	0.25 in	Male Pin	Phosphor Bronze	Header	3 A	Right Angle Through Hole	UL94 V-0	Polybutylene Terephthalate (PBT)	Black	Board to Cable/Wire	300 VDC	Shrouded - 4 Wall	0.76 Ám	30 Áin	0.22 in	5.59 mm	-55 C	85 °C	All	Solder	2	Gold
Hirose Electric Co Ltd HIF4A-24P-3.18DS	Square	24	Latch Lock/Eject Hooks	6.35 mm	0.25 in	Male Pin	Phosphor Bronze	Header	3 A	Right Angle Through Hole	UL94 V-0	Polybutylene Terephthalate (PBT)	Black	Board to Cable/Wire	300 VDC	Shrouded - 4 Wall	0.76 Ám	30 Áin	0.22 in	5.59 mm	-55 C	85 °C	All	Solder	2	Gold

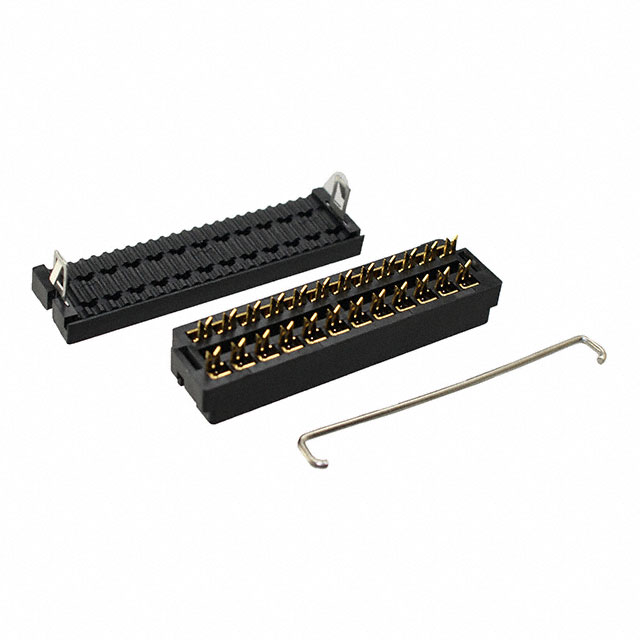

Hirose Electric Co Ltd HIF4A-24D-3.18R		24				Female Socket		Receptacle		Free Hanging (In-Line)															2		24 AWG	30 Áin	0.76 Ám	Discrete Ribbon Cable	0.25 in	6.35 mm	IDC	3.18 mm	0.125 in	Black	Gold
Hirose Electric Co Ltd HIF4A-GP24		24																																				HIF4 Series	Guide Plate
