TPP 100 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 12V 100W
| Part | Minimum Load Required | Approval Agency | Type | Mounting Type | Power (Watts) | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output 1 | Efficiency | Voltage - Isolation | Voltage - Output 1 | Features | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

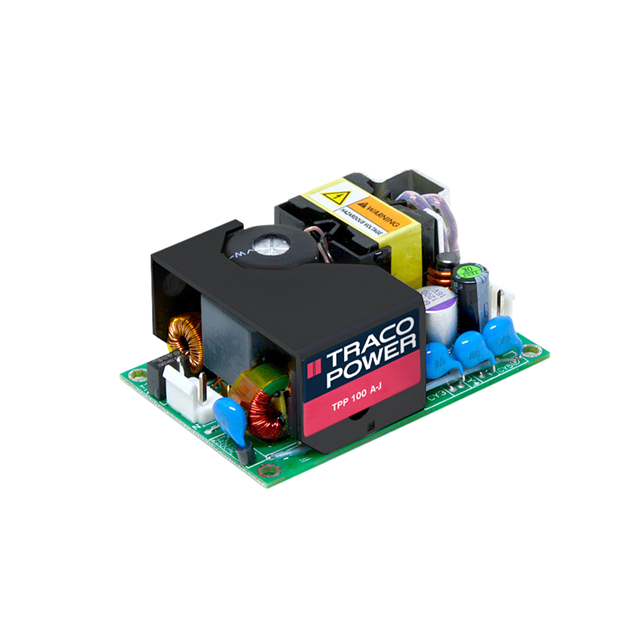

 Traco Power | CB CE cURus | Open Frame | Chassis Mount | 100 W | 29.5 mm | 2 in | 76.2 mm | 1.16 in | 3 " | 50.8 mm | ITE (Commercial) Medical | 85 °C | -25 °C | 85 VAC 120 VDC | 264 VAC 370 VDC | 8.34 A | 91 % | 4000 V | 12 V | Adjustable Output Universal Input | 1 | |

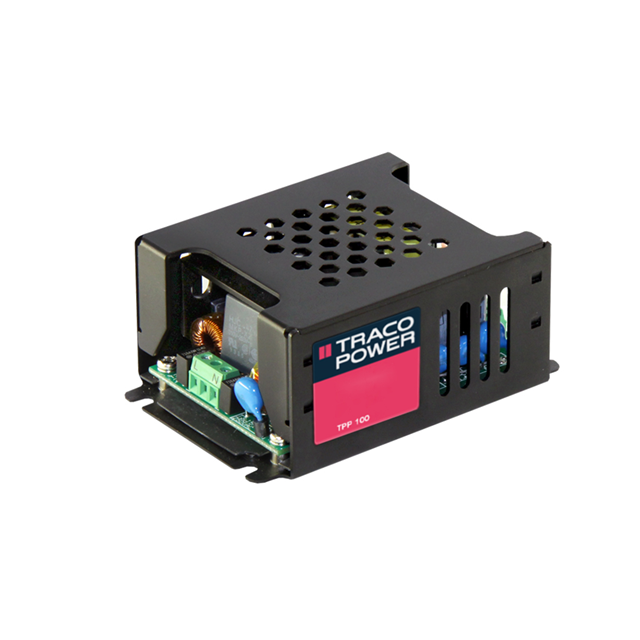

 Traco Power | CB CE cURus | Enclosed | Chassis Mount | 100 W | 39.1 mm | 2.44 " | 91.4 mm | 1.54 in | 3.6 " | 62 mm | ITE (Commercial) Medical | 85 °C | -25 °C | 85 VAC 120 VDC | 264 VAC 370 VDC | 3.58 A | 92 % | 4000 V | 28 V | Adjustable Output PFC Universal Input | 1 | |
 Traco Power | CB CE cURus | Enclosed | Chassis Mount | 100 W | 39.1 mm | 2.44 " | 91.4 mm | 1.54 in | 3.6 " | 62 mm | ITE (Commercial) Medical | 85 °C | -25 °C | 85 VAC 120 VDC | 264 VAC 370 VDC | 6.67 A | 92 % | 4000 V | 15 V | Adjustable Output PFC Universal Input | 1 | |
Traco Power | CB CE cURus | Enclosed | Chassis Mount | 100 W | 39.1 mm | 2.44 " | 91.4 mm | 1.54 in | 3.6 " | 62 mm | ITE (Commercial) Medical | 85 °C | -25 °C | 85 VAC 120 VDC | 264 VAC 370 VDC | 4.17 A | 92 % | 4000 V | 24 V | Adjustable Output IP20 Universal Input | 1 | |
Traco Power | CB CE cURus | Open Frame | Chassis Mount | 100 W | 29.5 mm | 2 in | 76.2 mm | 1.16 in | 3 " | 50.8 mm | ITE (Commercial) Medical | 85 °C | -25 °C | 85 VAC 120 VDC | 264 VAC 370 VDC | 4.17 A | 92 % | 4000 V | 24 V | Adjustable Output Universal Input | 1 |
