STL6 Series

Catalog

MOSFET N-CH 600V 5.75A POWERFLAT

Part	Mounting Type	Supplier Device Package	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs [Max]	Package / Case	Input Capacitance (Ciss) (Max) @ Vds [Max]	Power Dissipation (Max) [Max]	Vgs (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	FET Type	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Vgs (Max) [Max]	Input Capacitance (Ciss) (Max) @ Vds	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Power Dissipation (Max)
STMicroelectronics STL6NM60N	Surface Mount	PowerFLAT™ (5x5)	600 V	920 mOhm	8-PowerVDFN	420 pF	70 W	25 V	13 nC	N-Channel	5.75 A	10 V	4 V	MOSFET (Metal Oxide)	150 °C	-55 °C

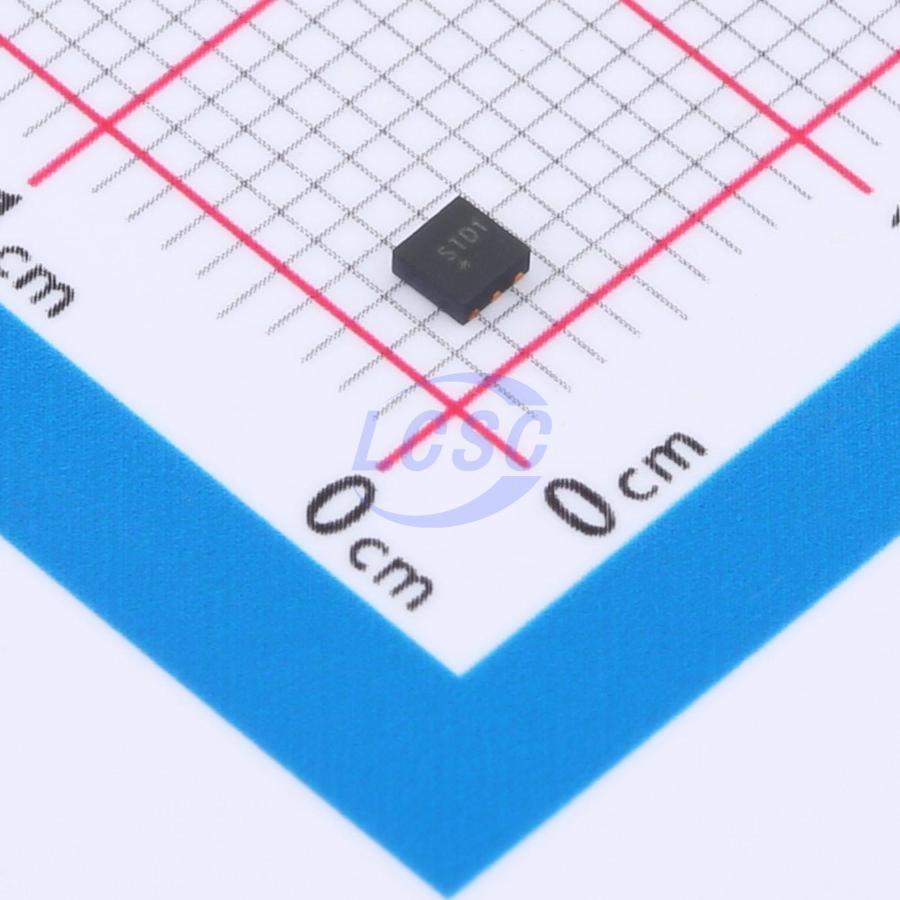

STMicroelectronics STL6N2VH5	Surface Mount	PowerFlat™ (2x2)	20 V		6-PowerWDFN					N-Channel	6 A		700 mV	MOSFET (Metal Oxide)	150 °C	-55 °C	30 mOhm	6 nC	8 V	550 pF	2.5 V	4.5 V	2.4 W
