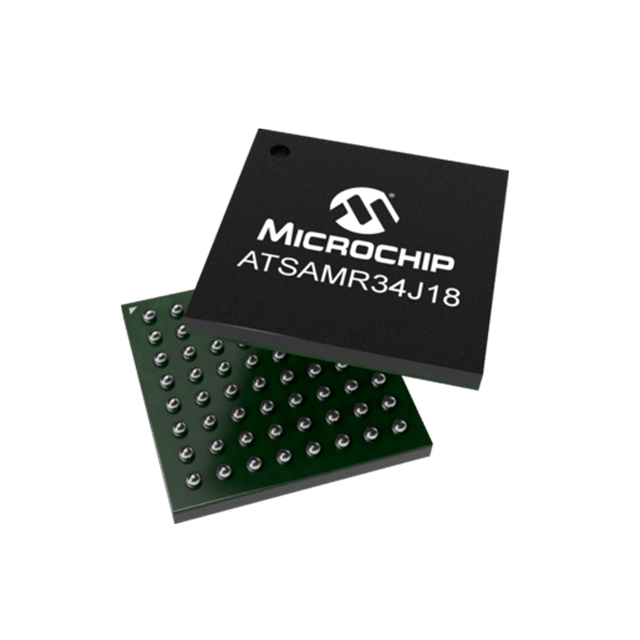

ATSAMR34J18 Series

Catalog

MCU WITH LORA TRANCEIVER WITH USB AND 256KB FLASH 64 TFBGA 6X6X1.20 TRAY ROHS COMPLIANT: YES

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting [Min]	Current - Transmitting [Max]	Sensitivity	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Power - Output	Modulation	Protocol	Frequency [Max]	Frequency [Min]	Mounting Type	RF Family/Standard	GPIO	Serial Interfaces	Type	Current - Receiving [Min]	Current - Receiving [Max]	Memory Size [custom]	Memory Size [custom]	Memory Size
Microchip Technology ATSAMR34J18B-I/7JX	85 °C	-40 °C	32.5 mA	94.5 mA	-148 dBm	64-TFBGA (6x6)	3.63 V	1.8 V	20 dBm	FSK GFSK GMSK MSK OOK	LoRa™	1.02 GHz 175 MHz 525 MHz	137 MHz 410 MHz 862 MHz	Surface Mount	802.15.4	27	I2S SPI USART USB	TxRx + MCU	14.8 mA	15.8 mA	32 kB	256 kB
Microchip Technology ATSAMR34J17BT-I/7JX	85 °C	-40 °C	32.5 mA	94.5 mA	-148 dBm	64-TFBGA (6x6)	3.63 V	1.8 V	20 dBm	FSK GFSK GMSK MSK OOK	LoRa™	1.02 GHz 175 MHz 525 MHz	137 MHz 410 MHz 862 MHz	Surface Mount	802.15.4	27	I2S SPI USART USB	TxRx + MCU	14.8 mA	15.8 mA			16 kB 128 kB
Microchip Technology ATSAMR34J17B-I/7JX	85 °C	-40 °C	32.5 mA	94.5 mA	-148 dBm	64-TFBGA (6x6)	3.63 V	1.8 V	20 dBm	FSK GFSK GMSK MSK OOK	LoRa™	1.02 GHz 175 MHz 525 MHz	137 MHz 410 MHz 862 MHz	Surface Mount	802.15.4	27	I2S SPI USART USB	TxRx + MCU	14.8 mA	15.8 mA			16 kB 128 kB
Microchip Technology ATSAMR34J16B-I/7JX	85 °C	-40 °C	32.5 mA	94.5 mA	-148 dBm	64-TFBGA (6x6)	3.63 V	1.8 V	20 dBm	FSK GFSK GMSK MSK OOK	LoRa™	1.02 GHz 175 MHz 525 MHz	137 MHz 410 MHz 862 MHz	Surface Mount	802.15.4	27	I2S SPI USART USB	TxRx + MCU	14.8 mA	15.8 mA			8 kB 64 kB

Catalog

Key Features

- Industry's lowest power LoRa® SiP device

- 32-bit Arm® Cortex M0+ MCU and LoRa Transceiver

- Small form factor: 6x6 mm compact BGA package

- 128 KB Flash and 24 KB RAM accommodates application code and stack

- Most cost and size effective solution, eliminating need for external MCU

- Fully supported 862 to 1020 MHz frequency coverage

- Up to 20 dBm maximum transmit power

- Down to -148 dBm Receive Sensitivity

- Low RX current of 17mA (typical)

- LoRa Technology, (G)FSK, (G)MSK and OOK Modulation

- Peripheral Touch Controller (PTC): 18-channel capacitive touch and proximity sensing

Description

The ATSAMR34J18 is an ultra-low power microcontroller combined with a UHF transceiver communication interface. It uses the 32-bit ARM® Cortex®-M0+ processor and offers 256KB of Flash and 40KB of SRAM (8KB battery backed) in a compact 6 x 6 mm BGA package. With ultra-low power sleep currents as low as 790nA, the ATSAMR34J18 devices are ideal for battery powered remote sensor applications. The highly configurable peripherals include up to 5 SERCOMs (configurable as I2C/SPI /UART/LIN interfaces) with one in the low power domain, 8 12-bit ADC channels, 2 analog comparators and custom configurable logic modules. The transceiver supports LoRa, FSK, MSK and GSK modulation and delivers up to 20 dBm TX power with an RX sensitivity down to -148 dBm. Supported by certified SAM R34 Xplained Pro Evaluation Kit, Atmel Studio and a detailed chip-down design package, these devices highly simplify the development and accelerate the time to market for LoRa end-nodes. SAM R34/35 SiP devices come in six device variants with different memory/interface options. For more information on specific SAM R34/35 device variants, refer to the product variant below. [ATSAMR34J18](https://www.microchip.com/en-us/product/atsamr34j18), [ATSAMR34J17](https://www.microchip.com/en-us/product/atsamr34j17), [ATSAMR34J16](https://www.microchip.com/en-us/product/atsamr34j16), [ATSAMR35J18](https://www.microchip.com/en-us/product/atsamr35j18), [ATSAMR35J17](https://www.microchip.com/en-us/product/atsamr35j17), [ATSAMR35J16](https://www.microchip.com/en-us/product/atsamr35j16) **Reference links:** * To get started with software development, download and install [Atmel Studio 7](https://www.microchip.com/en-us/tools-resources/develop/microchip-studio) * For software examples, update to ASF 3.44 and above in Atmel Studio * To access Chip-down design package, refer to the documents section on this page * [Enable Long Range STAR on SAM R34 ICs and WLR089U0 Module](https://github.com/MicrochipTech/atsamr34_long_range_star) Microchip's complimentary and confidential [Wireless Check online design review service](https://www.microchip.com/en-us/support/design-help/design-check-services) is available for customers who have selected our products for their application design-in\*. \*The online design review service is subject to Microchip's [Program Terms and Conditions](https://www.microchip.com/en-us/support/design-help/design-check-services/design-check-services-program-terms-and-conditions) and requires a myMicrochip account.
