AD5384 Series

Catalog

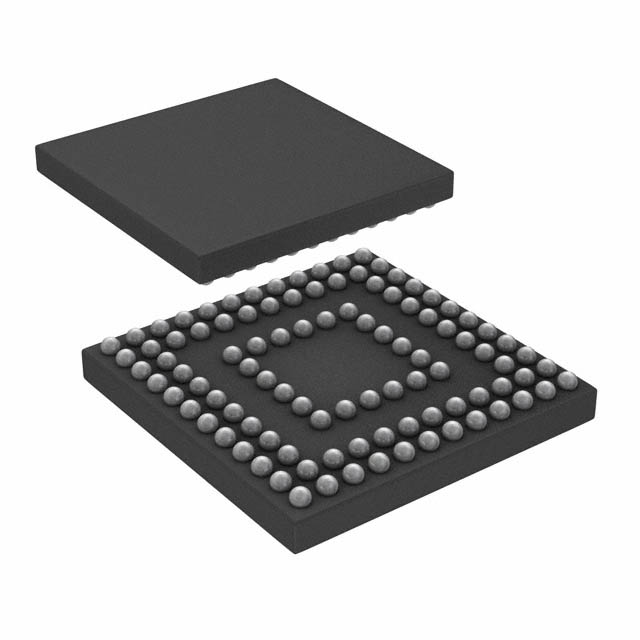

IC DAC 14BIT V-OUT 100CSBGA

Part	Data Interface	Mounting Type	Output Type	Number of Bits	Package / Case	Architecture	Supplier Device Package	Reference Type	Voltage - Supply, Analog	INL/DNL (LSB) [Max]	INL/DNL (LSB)	INL/DNL (LSB) [Min]	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Number of D/A Converters	Operating Temperature [Max]	Operating Temperature [Min]	Settling Time	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]
Analog Devices AD5384BBCZ-5REEL7	DSP I2C SPI	Surface Mount	Voltage - Buffered	14	100-LFBGA CSPBGA	String DAC	100-CSPBGA (10x10)	External Internal	5 V	2 LSB	4 LSB	-1 LSB	5.5 V	2.7 V	40	85 °C	-40 °C	8 µs
Analog Devices AD5384BBCZ-3	DSP I2C SPI	Surface Mount	Voltage - Buffered	14	100-LFBGA CSPBGA	String DAC	100-CSPBGA (10x10)	External Internal		2 LSB	4 LSB	-1 LSB	5.5 V	2.7 V	40	85 °C	-40 °C	8 µs	2.7 V	3.6 V
Analog Devices AD5384BBC-5	DSP I2C SPI	Surface Mount	Voltage - Buffered	14	100-LFBGA CSPBGA	String DAC	100-CSPBGA (10x10)	External Internal	5 V	2 LSB	4 LSB	-1 LSB	5.5 V	2.7 V	40	85 °C	-40 °C	8 µs
