845-070 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 70POS 0.100
| Part | Color | Number of Positions | Mounting Type | Termination | Read Out | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Termination Rows | Material - Insulation | Number of Rows | Card Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Pitch | Pitch | Gender | Contact Material | Number of Positions/Bay/Row [custom] | Termination Rows [custom] | Number of Positions/Bay/Row | Features | Number of Rows [custom] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

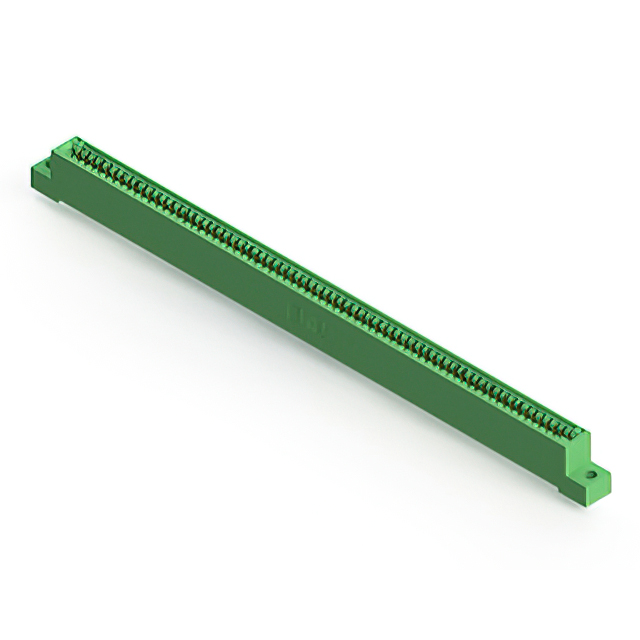

 EDAC Inc. | Green | 70 | Through Hole | Wire Wrap | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Cantilever | 3.25 mm | 0.128 " | 1 | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | Female | Copper Alloy | 70 | |||||
 EDAC Inc. | Green | 70 | Board Edge Straddle Mount | Solder | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Cantilever | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | Female | Copper Alloy | 2 | 35 | Card Extender | 2 | 4-40 Threaded Insert Top Mount Opening | |||||

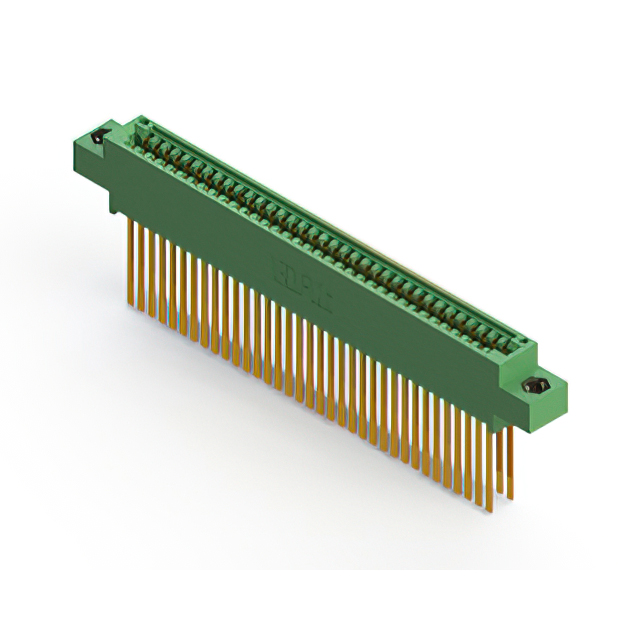

 EDAC Inc. | Green | 70 | Through Hole | Wire Wrap | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Cantilever | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | Female | Copper Alloy | 2 | 35 | 2 | 4-40 Threaded Insert Top Mount Opening | ||||||
 EDAC Inc. | Green | 70 | Board Edge Straddle Mount | Solder | Dual | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Cantilever | 2.95 mm | 0.116 " | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | Female | Copper Alloy | 2 | 35 | Card Extender | 2 | Floating Bobbin Top Mount Opening | |||
 EDAC Inc. | Green | 70 | Through Hole | Solder Eyelet(s) | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Cantilever | 2.95 mm | 0.116 " | 1 | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | Female | Copper Alloy | 70 | Floating Bobbin Top Mount Opening | ||||
 EDAC Inc. | Green | 70 | Through Hole | Wire Wrap | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Cantilever | 3.25 mm | 0.128 " | 1 | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | Female | Copper Alloy | 70 | Flush Mount Side Opening Unthreaded | ||||
 EDAC Inc. | Green | 70 | Through Hole | Solder | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Cantilever | 3.25 mm | 0.128 " | 1 | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | Female | Copper Alloy | 70 | Flush Mount Side Opening Unthreaded | ||||
 EDAC Inc. | Green | 70 | Through Hole | Wire Wrap | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Cantilever | 3.25 mm | 0.128 " | 1 | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | Female | Copper Alloy | 70 | Flush Mount Top Opening Unthreaded | ||||
 EDAC Inc. | Green | 70 | Through Hole | Wire Wrap | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Cantilever | 3.25 mm | 0.128 " | 1 | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | Female | Copper Alloy | 70 | |||||
 EDAC Inc. | Green | 70 | Through Hole | Solder | Single | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Cantilever | 3.96 mm | 0.156 " | 1 | Diallyl Phthalate (DAP) | 1 | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.1 " | 2.54 mm | Female | Copper Alloy | 70 | Flush Mount Top Opening Unthreaded |
