SML-LX2835 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED GRN/YLW CLEAR 2835 SMD

Part	Height (Max) [Max] [z]	Viewing Angle	Configuration	Mounting Type	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Lens Size [y]	Lens Size [x]	Lens Transparency	Current - Test	Supplier Device Package	Lens Color	Millicandela Rating	Package / Case	Lens Style	Color	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Current - Test
Lumex Opto/Components Inc. SML-LX2835GYC-TR	1.8 mm	120 °	Independent	Surface Mount	570 nm 585 nm	2 V 2 V	2.14 mm	2.64 mm	Clear	20 mA 20 mA	2835	Colorless	15 mcd 25 mcd	4-SMD J-Lead	Rectangle with Flat Top	Green Yellow

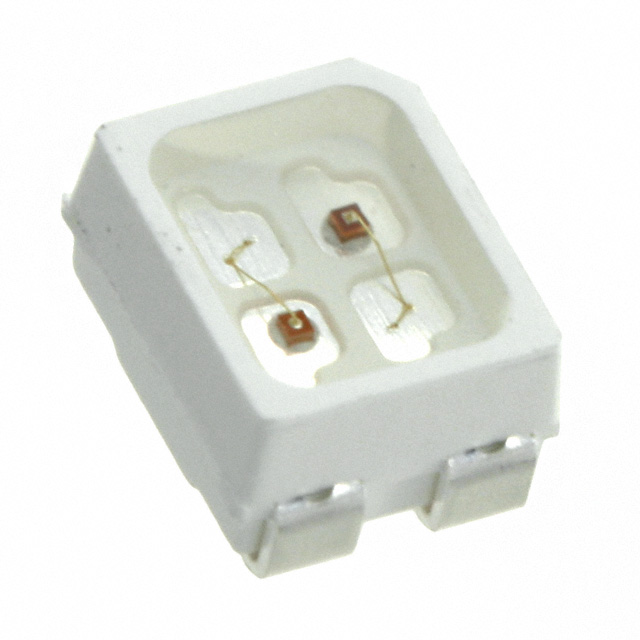

Lumex Opto/Components Inc. SML-LX2835YGC-TR	1.8 mm	120 °	Independent	Surface Mount	565 nm 585 nm	2.1 V 2.2 V	2.14 mm	2.64 mm	Clear	20 mA 20 mA	2835	Colorless	15 mcd 25 mcd	4-SMD J-Lead	Rectangle with Flat Top	Green Yellow
Lumex Opto/Components Inc. SML-LX2835IGC-TR	1.8 mm	120 °	Independent	Surface Mount	565 nm 635 nm	2 V 2.2 V	2.14 mm	2.64 mm	Clear		2835	Colorless	25 mcd 25 mcd	4-SMD J-Lead	Rectangle with Flat Top	Green Red	20 mA	20 mA
Lumex Opto/Components Inc. SML-LX2835SISUGUBC
Lumex Opto/Components Inc. SML-LX2835IYC-TR	1.8 mm	120 °	Independent	Surface Mount	585 nm 635 nm	2 V 2.1 V	2.14 mm	2.64 mm	Clear	20 mA 20 mA	2835	Colorless		4-SMD J-Lead	Rectangle with Flat Top	Red Yellow
Lumex Opto/Components Inc. SML-LX2835SISUGSBC	1.8 mm	120 °	Common Anode	Surface Mount		2 V 2.2 V 3.5 V	2.14 mm	2.64 mm	Clear		2835	Colorless		4-SMD J-Lead	Rectangle with Flat Top	Blue Green Red			80 mcd	80 mcd	80 mcd	430 nm	574 nm	636 nm	20mA Blue 20mA Green 20mA Red
Lumex Opto/Components Inc. SML-LX2835SUGSICTR	1.8 mm	120 °	Independent	Surface Mount	575 nm 632 nm	2 V 2 V	2.14 mm	2.64 mm	Clear		2835	Colorless	45 mcd 90 mcd	4-SMD J-Lead	Rectangle with Flat Top	Green Red	20 mA	20 mA
