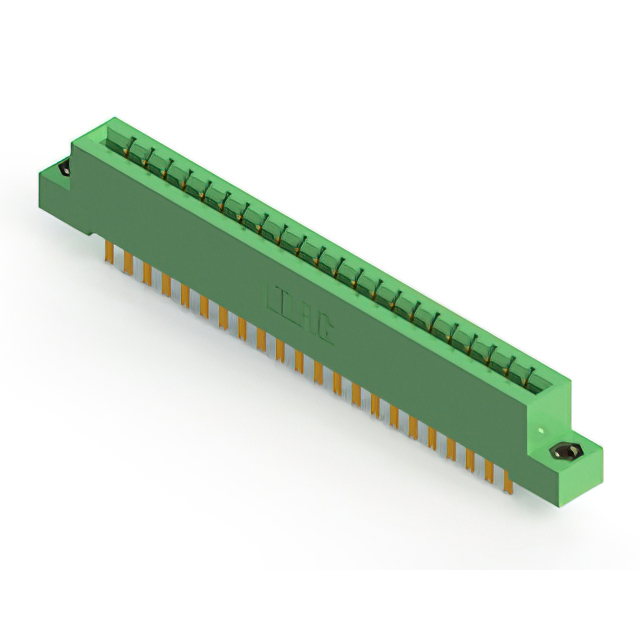

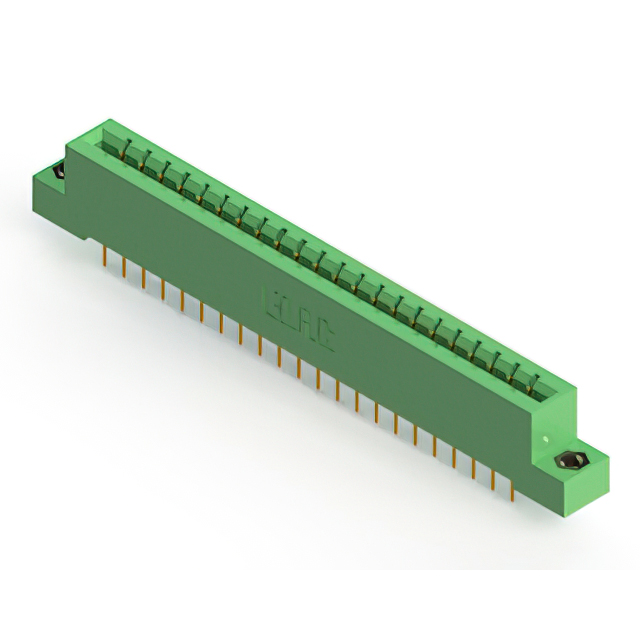

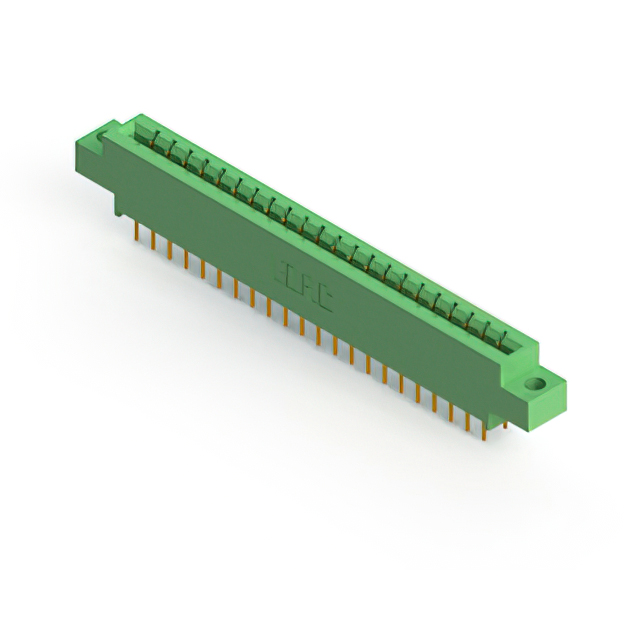

333-044 Series
Manufacturer: EDAC Inc.
Catalog
CARD EDGE CONNECTOR, 44 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SURFACE MOUNT TERMINAL, HOLE 0.156, GREEN INSULATOR,
...
| Part | Color | Contact Material | Gender | Number of Positions | Number of Positions/Bay/Row [custom] | Features | Termination | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Read Out | Termination Rows | Number of Rows | Mounting Type | Pitch [x] | Pitch [x] | Card Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Green | Copper Alloy | Female | 44 | 22 | Card Extender | Solder | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Dual | 2 | 2 | Board Edge Straddle Mount | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | ||
 EDAC Inc. | Green | Copper Alloy | Female | 44 | 22 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Dual | 2 | 2 | Through Hole | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | Green | Copper Alloy | Female | 44 | 22 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Dual | 2 | 2 | Through Hole | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | |||||||
 EDAC Inc. | Green | Copper Alloy | Female | 44 | 22 | Card Extender | Solder | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Dual | 2 | 2 | Board Edge Straddle Mount | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | ||
 EDAC Inc. | Green | Copper Alloy | Female | 44 | 22 | Wire Wrap | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Dual | 2 | 2 | Through Hole Right Angle | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | |||
 EDAC Inc. | Green | Copper Alloy | Female | 44 | 22 | Wire Wrap | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Dual | 2 | 2 | Through Hole Right Angle | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | |||
 EDAC Inc. | Green | Copper Alloy | Female | 44 | 22 | Wire Wrap | M3 Threaded Insert Top Mount Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Dual | 2 | 2 | Through Hole | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | |||||
 EDAC Inc. | Green | Copper Alloy | Female | 44 | 22 | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Diallyl Phthalate (DAP) | Dual | 2 | 2 | Through Hole | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | |||||
 EDAC Inc. | Green | Copper Alloy | Female | 44 | 22 | Card Extender | Solder | Side Mount Opening Unthreaded | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Dual | 2 | 2 | Board Edge Straddle Mount | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||
 EDAC Inc. | Green | Copper Alloy | Female | 44 | 22 | Wire Wrap | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | -40 °C | 105 ░C | Polyester Thermoplastic | Dual | 2 | 2 | Through Hole | 0.156 in | 3.96 mm | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám |
