ST7FL Series

Catalog

IC MCU 8BIT 8KB FLASH 20DIP

Part	Connectivity	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Number of I/O	Speed	Program Memory Size	Peripherals	Package / Case	Program Memory Type	Oscillator Type	Core Processor	Data Converters	Operating Temperature [Max]	Operating Temperature [Min]	Core Size	RAM Size	Mounting Type	Supplier Device Package	EEPROM Size	Package / Case	Supplier Device Package [y]	Supplier Device Package [x]	Package / Case [x]	Package / Case [x]	RAM Size [custom]	RAM Size [custom]
STMicroelectronics ST7FLITE25F2B6	SPI	5.5 V	2.4 V	15	8 MHz	8 KB	LVD POR PWM WDT	20-DIP (0.300" 7.62mm)	FLASH	Internal	ST7	A/D 7x10b	85 C	-40 ¯C	8-Bit	384 x 8	Through Hole
STMicroelectronics ST7FLITE39F2M3	LINbusSCI SPI	5.5 V	2.7 V	15	16 MHz	8 KB	LVD POR PWM WDT	20-SOIC (0.295" 7.50mm Width)	FLASH	Internal	ST7	A/D 7x10b	125 °C	-40 °C	8-Bit	384 x 8	Surface Mount	20-SO	256 x 8
STMicroelectronics ST7FLITEUS5U6/TR		5.5 V	2.4 V	5	8 MHz	1 KB	LVD POR PWM WDT	8-VDFN Exposed Pad	FLASH	Internal	ST7	A/D 5x10b	85 C	-40 ¯C	8-Bit	128 x 8	Surface Mount
STMicroelectronics ST7FLITE05Y0M6	SPI	5.5 V	2.4 V	13	16 MHz	1.5 KB	LVD POR PWM WDT	16-SOIC	FLASH	Internal	ST7	A/D 5x8b	85 C	-40 ¯C	8-Bit	128 x 8	Surface Mount	16-SO		0.154 in 3.9 mm

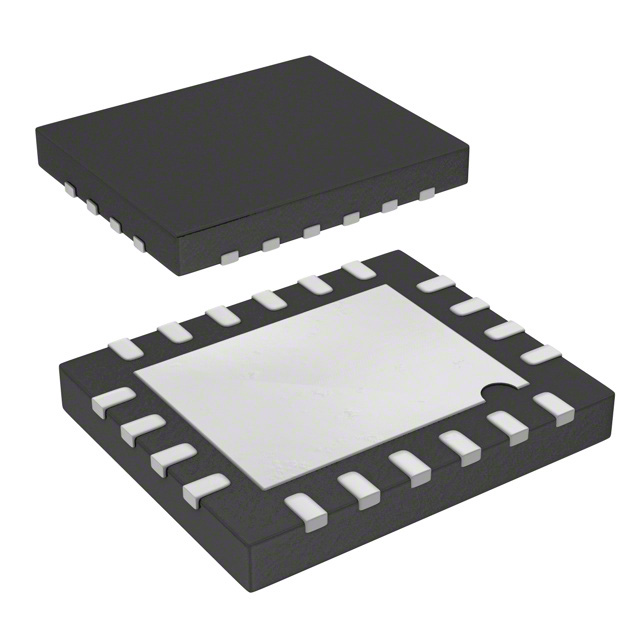

STMicroelectronics ST7FLITE35U6TR	LINbusSCI SPI	5.5 V	2.7 V	15	16 MHz	8 KB	LVD POR PWM WDT	20-VQFN Exposed Pad	FLASH	Internal	ST7	A/D 7x10b	85 C	-40 ¯C	8-Bit	384 x 8	Surface Mount	20-QFN			5	6
STMicroelectronics ST7FLITE29F2M6	SPI	5.5 V	2.4 V	15	8 MHz	8 KB	LVD POR PWM WDT	20-SOIC (0.295" 7.50mm Width)	FLASH	Internal	ST7	A/D 7x10b	85 C	-40 ¯C	8-Bit	384 x 8	Surface Mount	20-SO	256 x 8
STMicroelectronics ST7FLITES5Y0B6	SPI	5.5 V	2.4 V	13	8 MHz	1 KB	LVD POR PWM WDT	16-DIP	FLASH	Internal	ST7	A/D 5x10b	85 C	-40 ¯C	8-Bit	128 x 8	Through Hole						0.3 in	7.62 mm
STMicroelectronics ST7FLITE09Y0M6	SPI	5.5 V	2.4 V	13	8 MHz	1.5 KB	LVD POR PWM WDT	16-SOIC	FLASH	Internal	ST7	A/D 5x8b	85 C	-40 ¯C	8-Bit	128 x 8	Surface Mount	16-SO	128 x 8	0.154 in 3.9 mm
STMicroelectronics ST7FLITE49K2T6	I2C SPI	5.5 V	2.4 V	24	8 MHz	8 KB	LVD POR PWM WDT	32-LQFP	FLASH	Internal	ST7	A/D 10x10b	85 C	-40 ¯C	8-Bit	384 x 8	Surface Mount		256 x 8
STMicroelectronics ST7FLIT19BF1B6	SPI	5.5 V	2.7 V	17	8 MHz	4 KB	LVD POR PWM WDT	20-DIP (0.300" 7.62mm)	FLASH	Internal	ST7	A/D 7x10b	85 C	-40 ¯C	8-Bit		Through Hole	20-DIP	128 x 8						8	256
