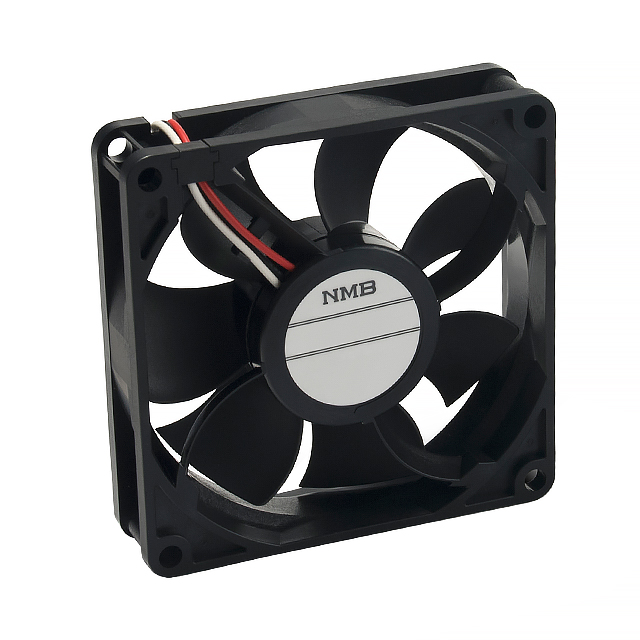

08020SA Series

Catalog

DC AXIAL FAN, 24 V, SQUARE, 80 MM, 20 MM, BALL BEARING, 39.9 CFM

Part	Current Rating (Amps)	Material - Frame	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Noise	Air Flow	Air Flow	Fan Type	Width [y]	Static Pressure	Static Pressure	Features	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Power (Watts)	RPM	Weight [custom]	Weight [custom]
NMB TECHNOLOGIES 08020SA-24M-EL-00	0.09 A	Plastic	40000 Hrs	Plastic	27.6 VDC	9 V	37.5 dB(A)	39.9 CFM	1.12 m³/min	Tubeaxial	20 mm	44.8 Pa	0.18 in H2O	Auto Restart Locked Rotor Sensor	80 mm	80 mm	24 VDC	Ball	70 °C	-10 °C	3 Wire Leads	2.16 W	3700 RPM
NMB TECHNOLOGIES 08020SA-24L-EL-00	70 mA	Plastic	40000 Hrs	Plastic	27.6 VDC	9 V	34 dB(A)	36 CFM	1.01 m³/min	Tubeaxial	20 mm	34.9 Pa	0.14 in H2O	Auto Restart Locked Rotor Sensor	80 mm	80 mm	24 VDC	Ball	70 °C	-10 °C	3 Wire Leads	1.68 W	3300 RPM
NMB TECHNOLOGIES 08020SA-12J-AL-00	50 mA	Plastic	40000 Hrs	Plastic	13.8 VDC	6 VDC	27 dB(A)	27.5 CFM	0.77 m³/min	Tubeaxial	20 mm	27.4 Pa	0.11 in H2O	Locked Rotor Sensor	80 mm	80 mm	12 VDC	Ball	70 °C	-10 °C	2 Wire Leads	600 mW	2600 RPM	79.83 g	0.176 lb
NMB TECHNOLOGIES 08020SA-12L-AA-00	0.09 A	Plastic	40000 Hrs	Plastic	13.8 VDC	6 VDC	34 dB(A)	36 CFM	1.01 m³/min	Tubeaxial	20 mm	42.3 Pa	0.17 in H2O		80 mm	80 mm	12 VDC	Ball	70 °C	-10 °C	2 Wire Leads	1.08 W	3300 RPM	79.83 g	0.176 lb
NMB TECHNOLOGIES 08020SA-24J-AL-00	50 mA	Plastic	40000 Hrs	Plastic	27.6 VDC	9 V	27 dB(A)	27.5 CFM	0.77 m³/min	Tubeaxial	20 mm	22.4 Pa	0.09 in H2O	Auto Restart Locked Rotor Sensor	80 mm	80 mm	24 VDC	Ball	70 °C	-10 °C	3 Wire Leads	1.2 W	2600 RPM
NMB TECHNOLOGIES 08020SA-24L-EA-00	70 mA	Plastic	40000 Hrs	Plastic	27.6 VDC	9 V	34 dB(A)	36 CFM	1.01 m³/min	Tubeaxial	20 mm	34.9 Pa	0.14 in H2O		80 mm	80 mm	24 VDC	Ball	70 °C	-10 °C	2 Wire Leads	1.68 W	3300 RPM	79.83 g	0.176 lb
NMB TECHNOLOGIES 08020SA-12K-ET-00	70 mA	Plastic	40000 Hrs	Plastic	13.8 VDC	6 VDC	31 dB(A)	31.1 CFM	0.871 mł/min	Tubeaxial	20 mm	34.9 Pa	0.14 in H2O	Auto Restart Speed Sensor (Tach)	80 mm	80 mm	12 VDC	Ball	70 °C	-10 °C	3 Wire Leads	840 mW	2900 RPM

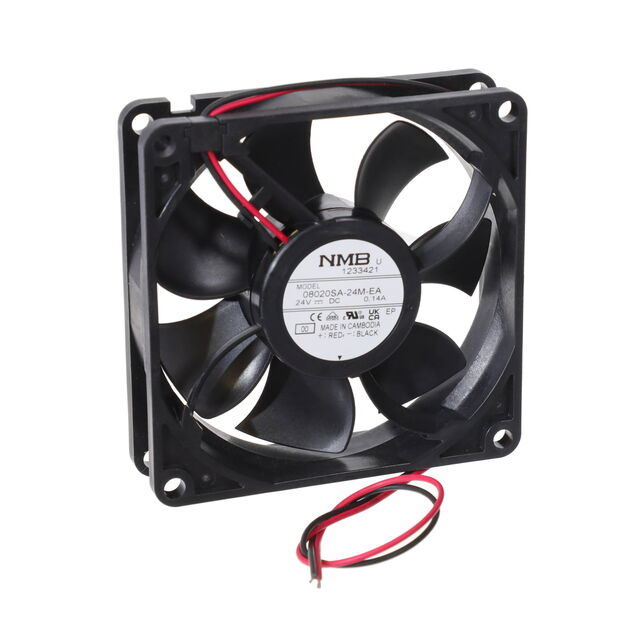

NMB TECHNOLOGIES 08020SA-24M-EA-00	0.09 A	Plastic	40000 Hrs	Plastic	27.6 VDC	9 V	37.5 dB(A)	39.9 CFM	1.12 m³/min	Tubeaxial	20 mm	44.8 Pa	0.18 in H2O	Auto Restart	80 mm	80 mm	24 VDC	Ball	70 °C	-10 °C	2 Wire Leads	2.16 W	3700 RPM
NMB TECHNOLOGIES 08020SA-12M-AA-00		Plastic	40000 Hrs	Plastic	13.8 VDC	6 VDC	37.5 dB(A)	40 CFM	1.12 m³/min	Tubeaxial	20 mm	52.3 Pa	0.21 in H2O		80 mm	80 mm	12 VDC	Ball	70 °C	-10 °C	2 Wire Leads	1.56 W	3700 RPM	79.83 g	0.176 lb
NMB TECHNOLOGIES 08020SA-12M-EA-00		Plastic	40000 Hrs	Plastic			37.5 dB(A)	39.9 CFM	1.12 m³/min	Tubeaxial	20 mm	52.3 Pa	0.21 in H2O	Auto Restart	80 mm	80 mm	12 VDC	Ball	70 °C	-10 °C	2 Wire Leads	1.56 W	3700 RPM
