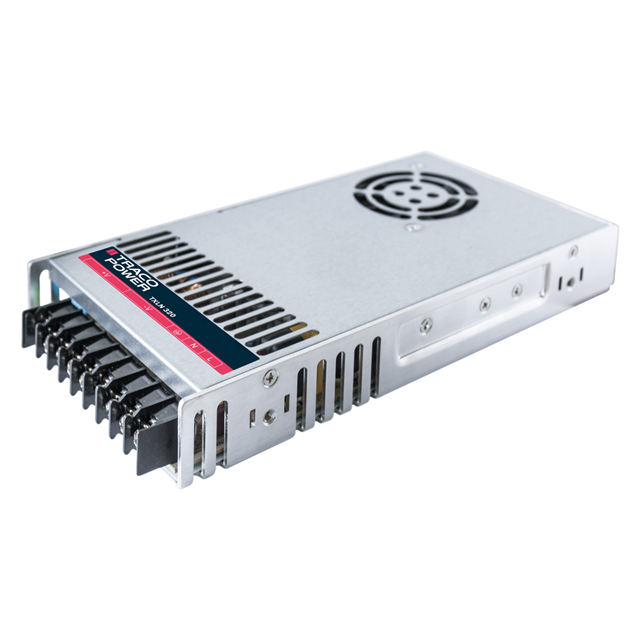

TXLN 320 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 48V 322W
| Part | Minimum Load Required | Current - Output 1 | Power (Watts) | Standard Number | Voltage - Isolation | Applications | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Approval Agency | Type | Efficiency | Voltage - Input [Min] | Voltage - Input [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Features | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 6.7 A | 322 W | 62368-1 | 3000 V | ITE (Commercial) | 48 V | -30 °C | 70 °C | Chassis Mount | CB CE cURus | Enclosed | 89 % | 85 VAC 120 VDC | 264 VAC 375 VDC | 115 mm | 30 mm | 4.53 " | 1.18 " | 212 mm | 8.35 " | Adjustable Output PFC Universal Input | 1 | |
Traco Power | 26.7 A | 320 W | 62368-1 | 3000 V | ITE (Commercial) | 12 V | -30 °C | 70 °C | Chassis Mount | CB CE cURus | Enclosed | 86 % | 85 VAC 120 VDC | 264 VAC 375 VDC | 115 mm | 30 mm | 4.53 " | 1.18 " | 212 mm | 8.35 " | Adjustable Output PFC Universal Input | 1 |
