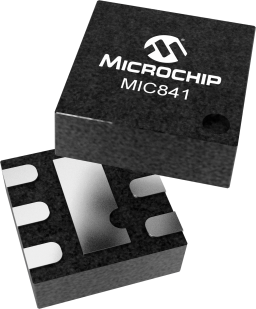

MIC841 Series

Catalog

WINDOWED COMPARATOR WITH ADJ HYSTERESIS

Part	Propagation Delay (Max) [Max]	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Hysteresis	Supplier Device Package	Current - Output (Typ)	Current - Quiescent (Max) [Max]	Output Type	Type	Number of Elements
Microchip Technology MIC841LYMT-T5	12 µs	Surface Mount	6-UFDFN Exposed Pad	85 °C	-40 °C	5.5 V	1.5 V	20 mV	6-TDFN (1.6x1.6)	20 mA	3 µA	Push-Pull	with Voltage Reference	1
Microchip Technology MIC841LYC5-TR	12 µs	Surface Mount	5-TSSOP SC-70-5 SOT-353	85 °C	-40 °C	5.5 V	1.5 V	20 mV	SC-70-5	20 mA	3 µA	Push-Pull	with Voltage Reference	1
Microchip Technology MIC841LYMT-TR	12 µs	Surface Mount	6-UFDFN Exposed Pad	85 °C	-40 °C	5.5 V	1.5 V	20 mV	6-TDFN (1.6x1.6)	20 mA	3 µA	Push-Pull	with Voltage Reference	1
Microchip Technology MIC841NYC5-TR	12 µs	Surface Mount	5-TSSOP SC-70-5 SOT-353	85 °C	-40 °C	5.5 V	1.5 V	20 mV	SC-70-5	20 mA	3 µA	Open-Drain	with Voltage Reference	1
Microchip Technology MIC841NYMT-T5	12 µs	Surface Mount	6-UFDFN Exposed Pad	85 °C	-40 °C	5.5 V	1.5 V	20 mV	6-TDFN (1.6x1.6)	20 mA	3 µA	Open-Drain	with Voltage Reference	1
Microchip Technology MIC841NBC5-TR	12 µs	Surface Mount	5-TSSOP SC-70-5 SOT-353	85 °C	-40 °C	5.5 V	1.5 V	20 mV	SC-70-5	20 mA	3 µA	Open-Drain	with Voltage Reference	1
Microchip Technology MIC841NYMT-TR	12 µs	Surface Mount	6-UFDFN Exposed Pad	85 °C	-40 °C	5.5 V	1.5 V	20 mV	6-TDFN (1.6x1.6)	20 mA	3 µA	Open-Drain	with Voltage Reference	1
Microchip Technology MIC841NYC5-T5	12 µs	Surface Mount	5-TSSOP SC-70-5 SOT-353	85 °C	-40 °C	5.5 V	1.5 V	20 mV	SC-70-5	20 mA	3 µA	Open-Drain	with Voltage Reference	1
Microchip Technology MIC841HBC5-TR	12 µs	Surface Mount	5-TSSOP SC-70-5 SOT-353	85 °C	-40 °C	5.5 V	1.5 V	20 mV	SC-70-5	20 mA	3 µA	Push-Pull	with Voltage Reference	1
Microchip Technology MIC841LBC5-TR	12 µs	Surface Mount	5-TSSOP SC-70-5 SOT-353	85 °C	-40 °C	5.5 V	1.5 V	20 mV	SC-70-5	20 mA	3 µA	Push-Pull	with Voltage Reference	1
