ADA4805-1 Series

Dual, 0.2 µV/°C Offset Drift, 105 MHzLow Power, Low Noise, Rail-to-Rail Amplifier

Catalog

Dual, 0.2 µV/°C Offset Drift, 105 MHzLow Power, Low Noise, Rail-to-Rail Amplifier

Part	Board Type	Amplifier Type	Utilized IC / Part	Channels per IC	Supplied Contents	Current - Supply	Slew Rate	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Current - Input Bias	Voltage - Input Offset	Voltage - Supply Span (Min) [Min]	Current - Output / Channel [custom]	Package / Case	Package / Case [custom]	Package / Case	Voltage - Supply Span (Max) [Max]	-3db Bandwidth	Mounting Type	Supplier Device Package

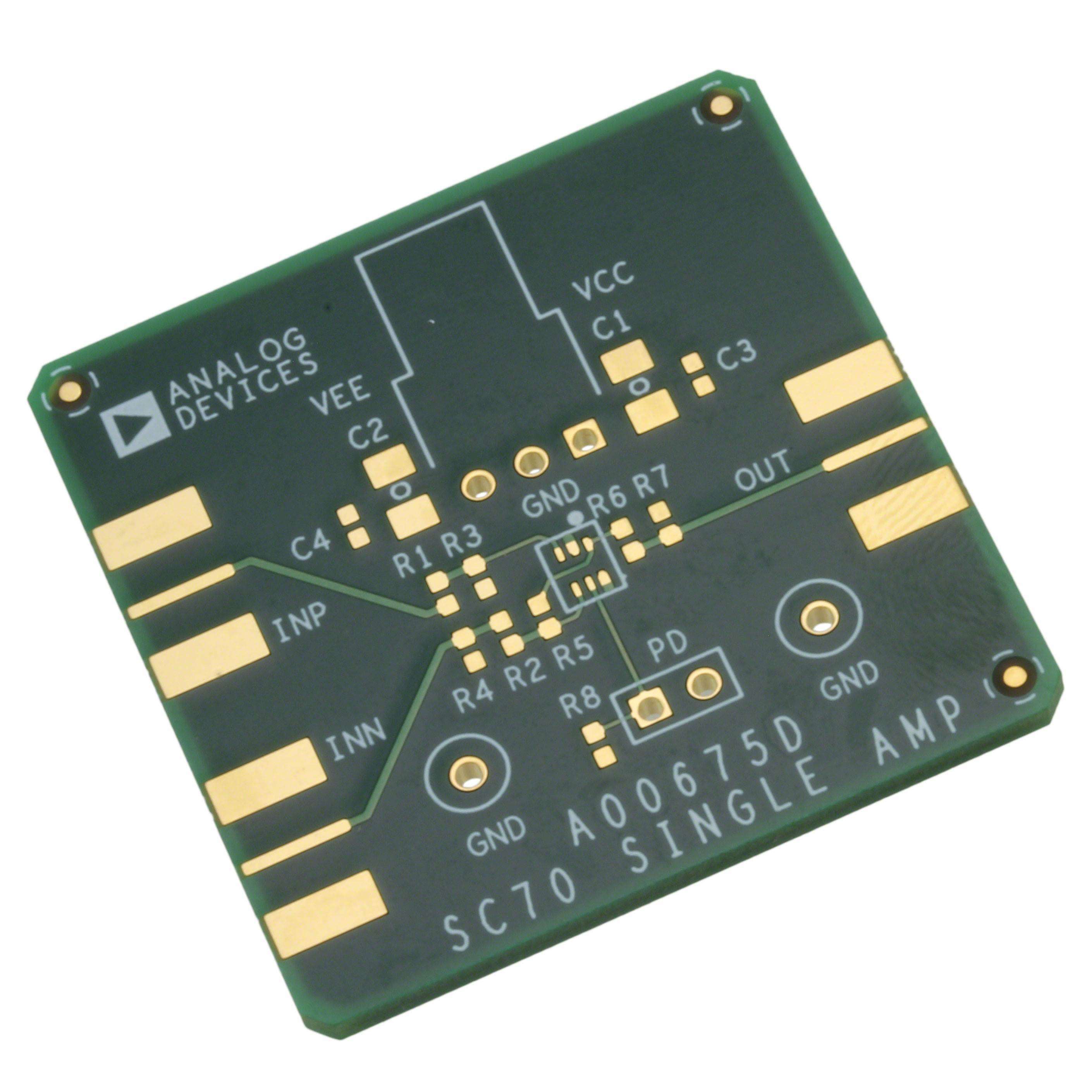

Analog Devices ADA4805-2ARMZ-EBZ	Bare (Unpopulated)	General Purpose	8-MSOP Package	2 - Dual	Board(s)
Analog Devices ADA4805-2ARMZ		Voltage Feedback				570 µA	250 V/µs	Rail-to-Rail	125 °C	-40 °C	2	550 nA	13 µV	2.7 V	73 mA	8-MSOP 8-TSSOP	0.118 in	3 mm	10 V	120 MHz	Surface Mount	8-MSOP
Analog Devices ADA4805-1AKSZ-EBZ	Bare (Unpopulated)	General Purpose	SC-70-6 Package	1 - Single	Board(s)
Analog Devices ADA4805-1AKSZ-R2		General Purpose				500 µA	160 V/µs	Rail-to-Rail	125 °C	-40 °C	1	470 nA	9 µV	3 V	73 mA	6-TSSOP SC-88 SOT-363			10 V	105 MHz	Surface Mount	SC-70-6
Analog Devices ADA4805-1ARJZ-R7		General Purpose				500 µA	160 V/µs	Rail-to-Rail	125 °C	-40 °C	1	470 nA	9 µV	3 V	73 mA	SOT-23-6			10 V	105 MHz	Surface Mount	SOT-23-6
Analog Devices ADA4805-1AKSZ-R7		General Purpose				500 µA	160 V/µs	Rail-to-Rail	125 °C	-40 °C	1	470 nA	9 µV	3 V	73 mA	6-TSSOP SC-88 SOT-363			10 V	105 MHz	Surface Mount	SC-70-6
Analog Devices ADA4805-2ACPZ-R2		Voltage Feedback				500 µA	160 V/µs	Rail-to-Rail	125 °C	-40 °C	1	470 nA	9 µV	2.7 V	73 mA	10-VFDFN Exposed Pad CSP			10 V	105 MHz	Surface Mount	10-LFCSP-WD (3x3)

Catalog

Dual, 0.2 µV/°C Offset Drift, 105 MHzLow Power, Low Noise, Rail-to-Rail Amplifier

Key Features

• Low input offset voltage: 125 µV (maximum)

• Low input offset voltage drift

• 0.2 µV/°C (typical)

• 1.5 µV/°C (maximum)

• Ultralow supply current: 500 µA per amplifier

• Fully specified at VS= 3 V, 5 V, ±5 V

• High speed performance

• −3 dB bandwidth: 105 MHz

• Slew rate: 160 V/µs

• Settling time to 0.1%: 35 ns

• Rail-to-rail outputs

• See data sheet for additional features

• Download theADA4805-2-EP data sheet(pdf)

• Extended industrial temperature range (−55°C to +125°C)

• Controlled manufacturing baseline

• 1 assembly/test site

• 1 fabrication site

• Enhanced product change notification

• Qualification data available upon request

• V62/16621 DSCC Drawing Number

Description

TheADA4805-1/ADA4805-2 are high speed voltage feedback, rail-to-rail output amplifiers with an exceptionally low quiescent current of 500 µA, making them ideal for low power, high resolution data conversion systems. Despite being low power, these amplifiers provide excellent overall performance. They offer a high bandwidth of 105 MHz at a gain of +1, a high slew rate of 160 V/µs, and a low input offset voltage of 125 µV (maximum).A shutdown pin allows further reduction of the quiescent supply current to 2.9 µA. For power sensitive applications, the shutdown mode offers a very fast turn on time of 3 µs. This allows the user to dynamically manage the power of the amplifier by turning the amplifier off between ADC samples.The Analog Devices, Inc., proprietary extra fast complementary bipolar (XFCB) process allows for both low voltage and low current noise (5.9 nV/√Hz, 0.6 pA/√Hz). The ADA4805-1/ADA4805-2 operate over a wide range of supply voltages from ±1.5 V to ±5 V, as well as single 3 V and 5 V supplies, making them ideal for high speed, low power instruments.The ADA4805-1 is available in a 6-lead SOT-23 and a 6-lead SC70 package. The ADA4805-2 is available in an 8-lead MSOP package. These amplifiers are rated to work over the industrial temperature range of −40°C to +125°C.ApplicationsHigh resolution, high precision analog-to-digital converter (ADC) driversBattery-powered instrumentationMicropower active filtersPortable point of sales terminalsActive radio frequency identification (RFID) readersPhoto multipliersADC reference buffers
