FH42 Series

Catalog

CONN FPC TOP 31POS 0.3MM R/A

Part	Mating Cycles	Actuator Color	Current Rating (Amps)	Housing Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Voltage Rating	Pitch	Pitch	Material Flammability Rating	Mounting Type	Cable End Type	Height Above Board [z]	Height Above Board [z]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness	Actuator Material	Connector/Contact Type	Housing Material	Contact Finish	Flat Flex Type	Locking Feature	Contact Material	Number of Positions

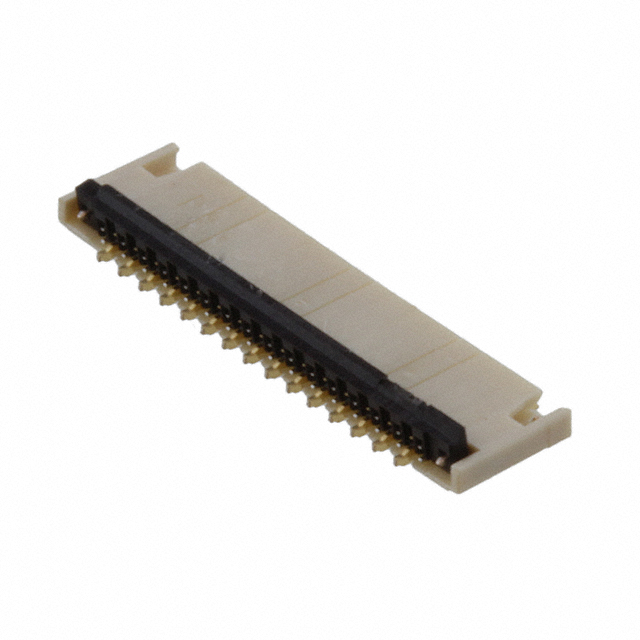

Hirose Electric Co Ltd FH42-31S-0.3SHW(10)	10	Black	0.2 A	Beige	1.25 Áin	0.03 Ám	31	30 VDC	0.012 in	0.3 mm	UL94 HB UL94 V-0	Right Angle Surface Mount	Notched	0.65 mm	0.026 "	Solder	-55 C	85 °C	0.12 mm	Polyamide (PA) Nylon	Contacts Top	Liquid Crystal Polymer (LCP) Halogen Free	Gold	FPC	Backlock Flip Lock	Phosphor Bronze
Hirose Electric Co Ltd FH42-39S-0.3SHW(99)
Hirose Electric Co Ltd FH42-15S-0.3SHW(10)	10	Black	0.2 A	Beige	1.25 Áin	0.03 Ám		30 VDC	0.012 in	0.3 mm	UL94 HB UL94 V-0	Right Angle Surface Mount	Notched	0.65 mm	0.026 "	Solder	-55 C	85 °C	0.12 mm	Polyamide (PA) Nylon	Contacts Top	Liquid Crystal Polymer (LCP) Halogen Free	Gold	FPC	Backlock Flip Lock	Phosphor Bronze	15

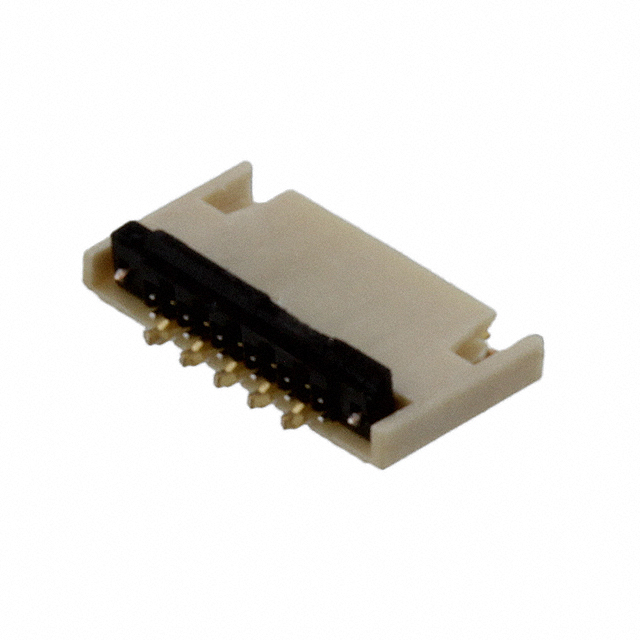

Hirose Electric Co Ltd FH42-11S-0.3SHW(99)	10	Black	0.2 A	Beige				30 VDC	0.012 in	0.3 mm		Right Angle Surface Mount	Notched	1.65 mm	0.065 in	Solder	-55 C	85 °C	0.12 mm	Polyamide (PA) Nylon	Contacts Top	Liquid Crystal Polymer (LCP) Halogen Free	Gold	FPC	Backlock Flip Lock	Phosphor Bronze	11
Hirose Electric Co Ltd FH42-9S-0.3SHW(10)

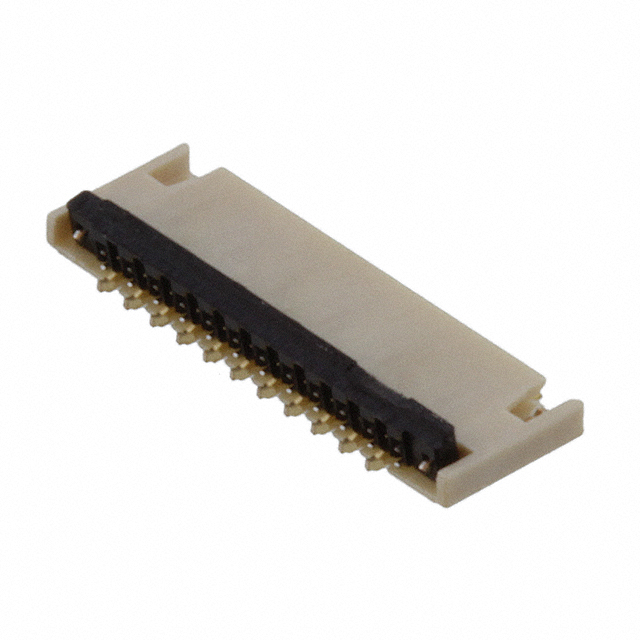

Hirose Electric Co Ltd FH42-23S-0.3SHW(99)	10	Black	0.2 A	Beige				30 VDC	0.012 in	0.3 mm		Right Angle Surface Mount	Notched	1.65 mm	0.065 in	Solder	-55 C	85 °C	0.12 mm	Polyamide (PA) Nylon	Contacts Top	Liquid Crystal Polymer (LCP) Halogen Free	Gold	FPC	Backlock Flip Lock	Phosphor Bronze	23
Hirose Electric Co Ltd FH42-11S-0.3SHW(10)	10	Black	0.2 A	Beige	1.25 Áin	0.03 Ám		30 VDC	0.012 in	0.3 mm	UL94 HB UL94 V-0	Right Angle Surface Mount	Notched	0.65 mm	0.026 "	Solder	-55 C	85 °C	0.12 mm	Polyamide (PA) Nylon	Contacts Top	Liquid Crystal Polymer (LCP) Halogen Free	Gold	FPC	Backlock Flip Lock	Phosphor Bronze	11
Hirose Electric Co Ltd FH42-23S-0.3SHW(10)	10	Black	0.2 A	Beige	1.25 Áin	0.03 Ám		30 VDC	0.012 in	0.3 mm	UL94 HB UL94 V-0	Right Angle Surface Mount	Notched	0.65 mm	0.026 "	Solder	-55 C	85 °C	0.12 mm	Polyamide (PA) Nylon	Contacts Top	Liquid Crystal Polymer (LCP) Halogen Free	Gold	FPC	Backlock Flip Lock	Phosphor Bronze	23
Hirose Electric Co Ltd FH42-31S-0.3SHW(99)	10	Black	0.2 A	Beige			31	30 VDC	0.012 in	0.3 mm		Right Angle Surface Mount	Notched	1.65 mm	0.065 in	Solder	-55 C	85 °C	0.12 mm	Polyamide (PA) Nylon	Contacts Top	Liquid Crystal Polymer (LCP) Halogen Free	Gold	FPC	Backlock Flip Lock	Phosphor Bronze
